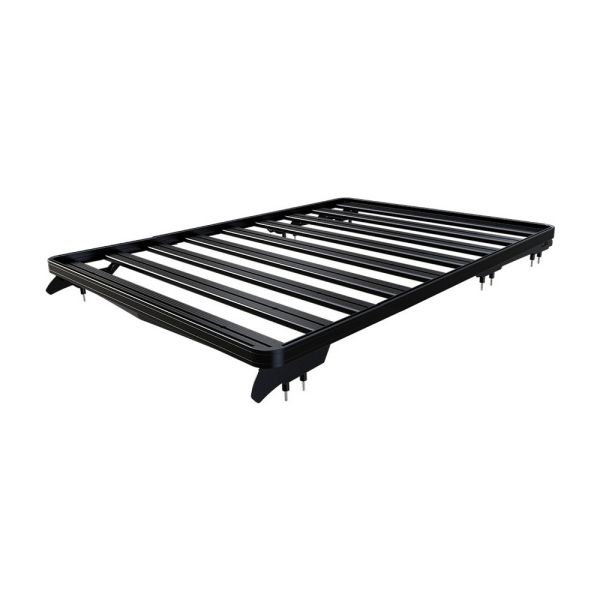

KRLD032T - Land Rover All-New Discovery 5 (2017-Current) Expedition Slimline II Roof Rack Kit - by Front Runner

Consisting of:

• 1 x FALD007 - Land Rover All-New Discovery Foot Rails - by Front Runner
• 1 x RRSTD09 - Slimline II Tray - 1255mm(W) X 1762mm(L) - by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• High strength steel

Approximate Installed Weight: 27kg (60lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicles rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 455mm (18")
• Length 1615mm (64")
• Height 250mm (10")

Shipping Weight:

• Weight 31.9kg (70.1lbs)
