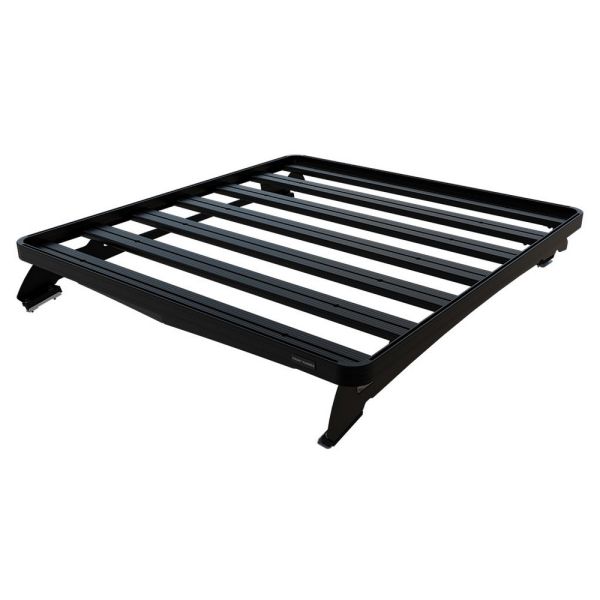

KRMB004T - Mazda BT50 (2012-2020) Slimline II Roof Rack Kit

Consisting of:

• 1x FAFR003 - Ford Ranger T6/Wildtrak (2012-Current) Foot Rails
• 1x RRSTD07 - SLII Tray - 1255mm(W)X1358mm(L)

Material used:

• Black epoxy powder - coated T6 aluminium
• High strength steel

Approximate Installed Weight: 28.91kg (63.74lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width: 440mm (17")
• Length: 1720mm (68")
• Height: 260mm (10")

Shipping Weight:

• Weight: 30kg (66lbs)
