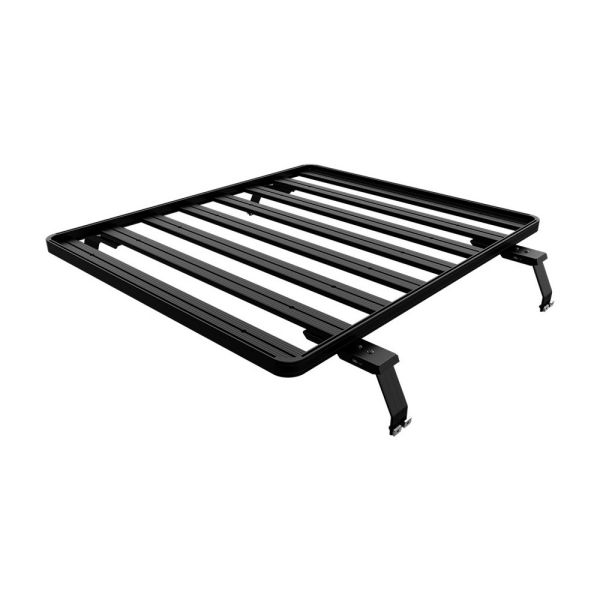

KRMX001T - Merc X-Class w/MB Bars (2017-Current) SLII Load Bed - by Front Runner

Consisting of:

• 2 x LASS026 - Universal Load Bed Leg / Tall (Pair) - by Front Runner
• 2 x RRAC109 - Gutter Mount Leg Extensions - by Front Runner
• 1 x RRSTG08 - Slimline II Tray - 1345mm(W) X 1560mm(L) - by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• High strength steel

Approximate Installed Weight: 31kg (69lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 450mm (18")
• Length 1610mm (63")
• Height 270mm (11")

Shipping Weight:

• Weight 36.5kg (80.4lbs)
