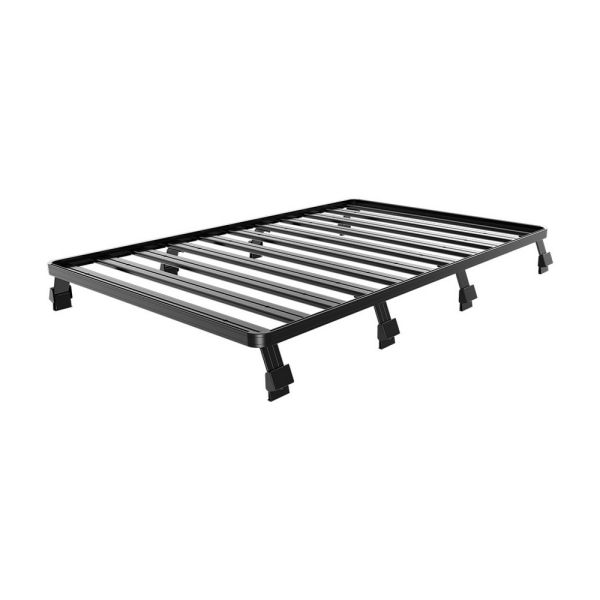

KRNPT10L - Nissan Patrol Y60 Slimline II Roof Rack Kit Tall

Consisting of:

• 4 x LASS103 - No 3 Leg 155mm (Pair) - by Front Runner
• 1 x RRSTJ11 - Slimline II Tray - 1425mm(W) X 2166mm(L) - by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• High strength steel

Approximate Installed Weight: 35kg (77lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicles rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 450mm (18")
• Length 1615mm (64")
• Height 140mm (6")

Shipping Weight:

• Weight 41.0kg (90.1lbs)
