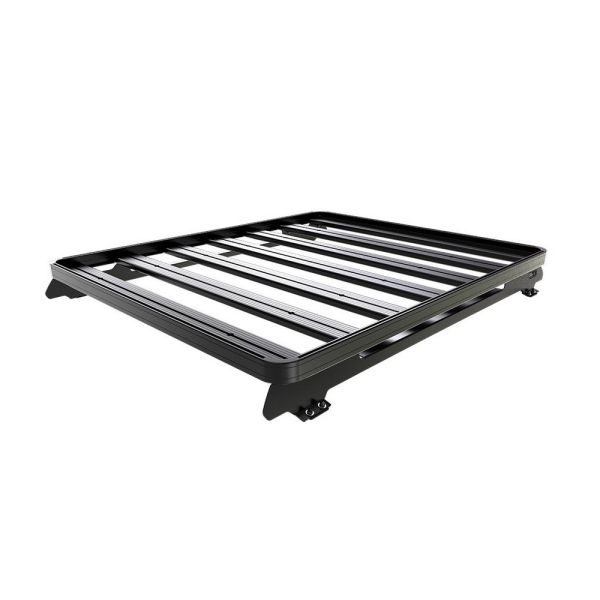

KRSJ002T - Suzuki Jimny (1998-2018) Slimline II Roof Rack Kit - by Front Runner

Consisting of:

• 1 x FASJ002 - Suzuki Jimny Foot Rails - by Front Runner
• 1 x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L) - by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• High strength steel

Approximate Installed Weight: 24kg (54lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicles rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 450mm (18")
• Length 1615mm (64")
• Height 140mm (6")

Shipping Weight:

• Weight 28.3kg (62.3lbs)
