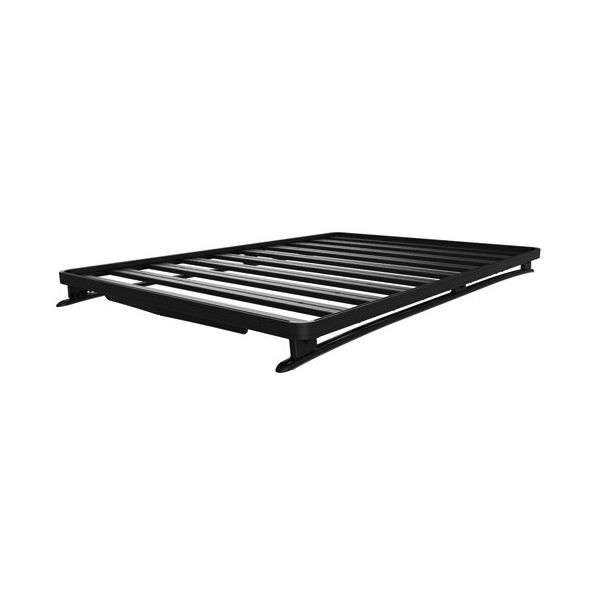

KRSV001T - Suzuki Grand Vitara (2007-2014) Slimline II Roof Rack Kit - by Front Runner

Consisting of:

• 1 x FASS012 - Foot Set / 40mm-50mm - by Front Runner
• 2 x FASS013 - Foot Set / 60mm-70mm - by Front Runner
• 1 x RRSTD09 - Slimline II Tray - 1255mm(W) X 1762mm(L) - by Front Runner
• 1 x TRSV001 - Suzuki Vitara Tracks / 1850mm(L) - by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• High strength steel

Approximate Installed Weight: 29kg (63lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicles rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 450mm (18")
• Length 1615mm (64")
• Height 140mm (6")

Shipping Weight:

• Weight 33.3kg (73.3lbs)
