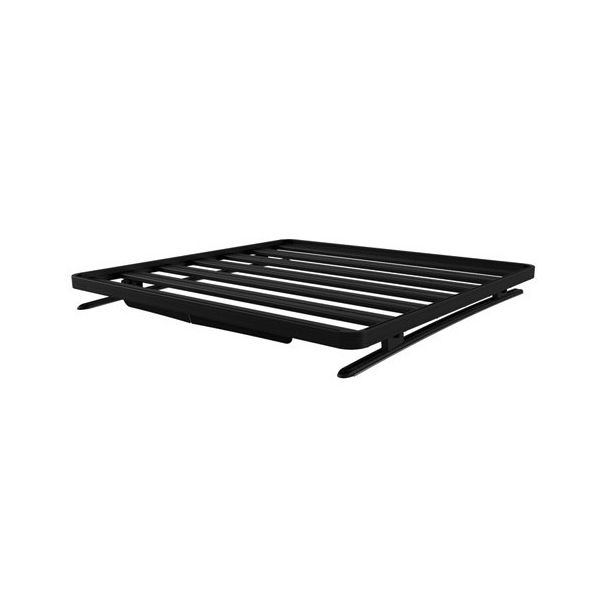

KRTH008T - Toyota Hilux (2005-2015) Slimline II Roof Rack Kit - by Front Runner

Consisting of:

• 1 x FASS012 - Foot Set / 40mm-50mm - by Front Runner
• 1 x FASS014 - Foot Set - Angled / 65mm - by Front Runner
• 1 x RRSTA06 - Slimline II Tray - 1165mm(W) X 1156mm(L) - by Front Runner
• 1 x TRTH001 - Toyota Hilux (2005-2015) Tracks / 1240mm(L) - by Front Runner

Material used:

• Black epoxy powder - coated T6 aluminium
• High strength steel

Approximate Installed Weight: 22.9kg (50.5lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicles rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width: 450mm (18.0")
• Length: 1615mm (64.0")
• Height: 140mm (6.0")
• Shipping Weight:
• 26.2kg (58.0lbs)
