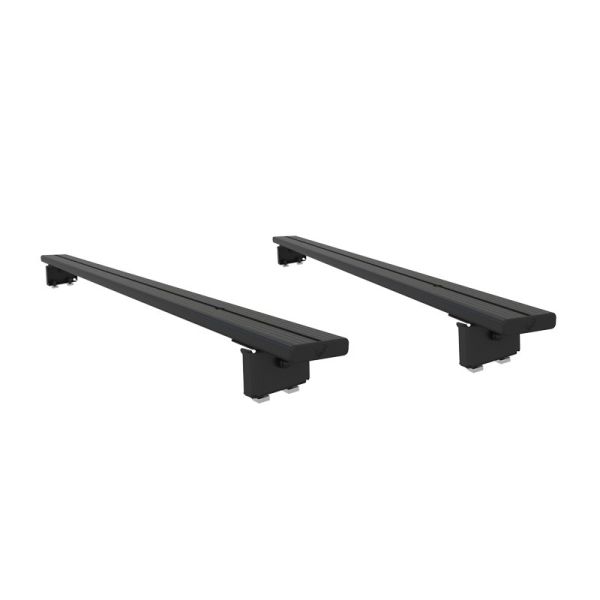

KRTH012 - Toyota Hilux (2005-2015) Load Bar Kit / Track & Feet - by Front Runner

Consisting of:

• 1 x FASS012 - Foot Set / 40mm-50mm - by Front Runner
• 1 x FASS014 - Foot Set - Angled / 65mm - by Front Runner
• 1 x LBSK013 - Load Bar Pair 1165mm(W) - by Front Runner
• 1 x TRTH001 - Toyota Hilux (2005-2015) Tracks / 1240mm(L) - by Front Runner
• 1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• High strength steel

Approximate Installed Weight: 8kg (17lbs)

• The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot or Grab-On Foot Foot listed above.
• If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicles rain gutters.
• If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 115mm (5")
• Length 1290mm (51")
• Height 240mm (9")

Shipping Weight:

• Weight 8.9kg (19.5lbs)
