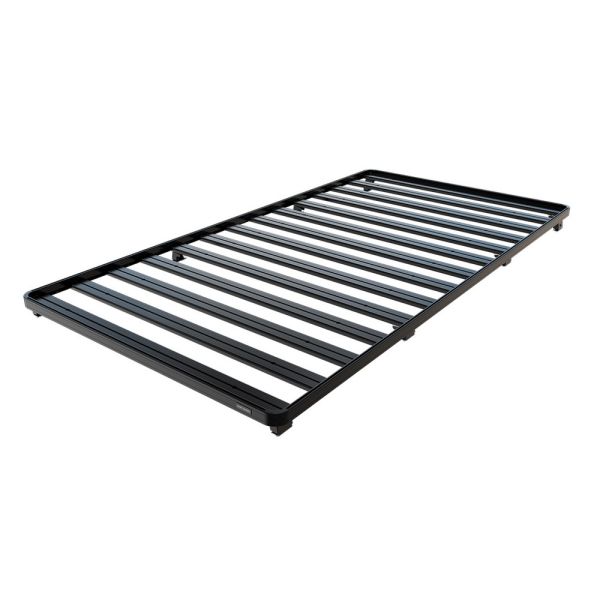

KRVC009T - VW Crafter/MAN TGE w/oOEM Tracks(17-Current) Slimline II Roof Rack Kit

Consisting of:

• 3x FASS012 - Foot Set / 40mm - 50mm
• 1x FASS017 - Foot Set / 75mm-85mm
• 1x RRSTM14 - SLII Tray - 1475mm(W)X2772mm(L)
• 1x TRMS001 - Mercedes Sprinter (2006-Curr) Tracks/3082-4098mmL
• 1x WDST009 - Wind Deflector 20mm Lip Wide Pair / 1345mm(W)

Material used:

• Black epoxy powder - coated T6 aluminium
• High strength steel

Approximate Installed Weight: 52.39kg (115.5lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width: 440mm (17")
• Length: 1800mm (71")
• Height: 270mm (11")

Shipping Weight:

• Weight: 52.6kg (116lbs)
