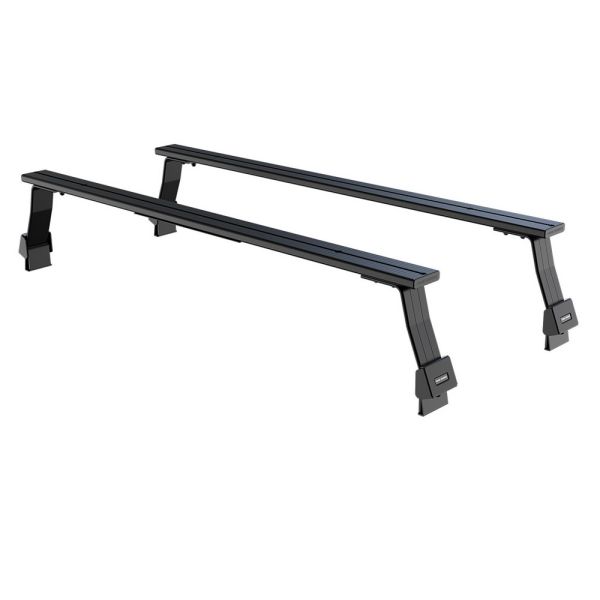

KRVK004 - Volkswagen T2 Kombi Load Bar Kit / Gutter Mount - by Front Runner

Consisting of:

• 2 x LASS110 - No 10 Leg 280mm (Pair) - by Front Runner
• 1 x LBSK017 - Roof Load Bar Pair 1475mm(W) - by Front Runner
• 1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner

Material used:

• Black epoxy powder - coated T6 aluminium
• High strength steel

Approximate Installed Weight: 10.0kg (22.1lbs)

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicles roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicles rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width: 130mm (5.0")
• Length: 1625mm (64.0")
• Height: 145mm (6.0")
• Shipping Weight:
• 9.4kg (21.0lbs)
