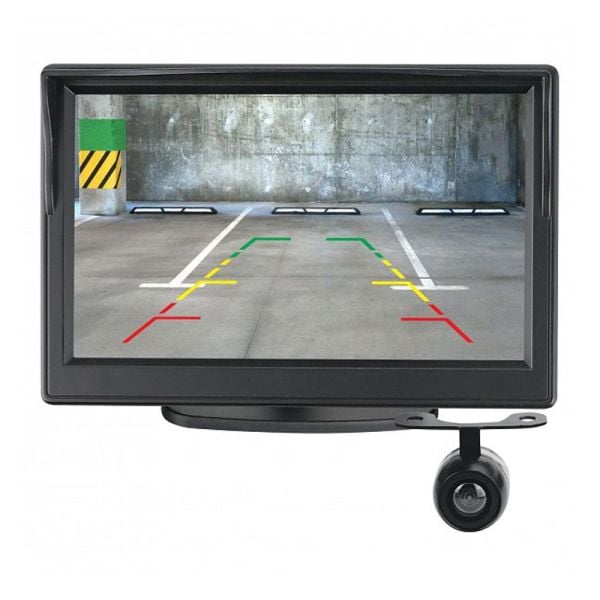

Reversing could not be easier with a Gator GRV50KT Reverse Camera Kit on-board. Featuring a 5 inch colour monitor, you can maintain visibility of obstacles and hazards that might otherwise be obscured by blind spots and poor visibility. The display is large enough to provide maximum visibility, yet small enough to not obscure your view of the road ahead. It features easy to use picture adjustment buttons conveniently situated on the rear-most part of the monitor, giving it a clean, compact look and it includes an adhesive mount for secure attachment to your dashboard or any other smooth surface.

The kit includes a compact butterfly mount camera with built-in gridlines to assist with reverse parking. As soon as reverse gear is engaged in the vehicle, the monitor will automatically turn on and display the reverse camera. The kit comes supplied with a 5.5 metre video cable and is 12V compatible, making it suitable for installation in virtually any vehicle. For full coverage around the vehicle, the monitor also has a second AV input, allowing a second camera to be added to the system.

Monitor Specifications:

• MONITOR SIZE: 5.0"
• MOUNTING TYPE: ADJUSTABLE ADHESIVE MOUNT
• RESOLUTION / BRIGHTNESS: 480(H) x 272(V) / 500 CANDELA
• INPUT VOLTAGE: 12V
• VIDEO INPUTS: 2
• DISPLAY CONFIGURATION (SINGLE, DUAL OR QUAD): SINGLE
• IMAGE FLIP: NO
• DISPLAY IMAGE ADJUSTMENT:
• BRIGHTNESS: YES
• CONTRAST: YES
• SATURATION: YES
• REVERSE (MIRROR) IMAGE: NO
• PAL or NTSC: PAL/NTSC
• CONNECTION TYPE: RCA
• DIMENSIONS: 90mm(H) X 125mm(W) X 44mm(D)

Reverse Camera Specifications:

• MOUNT TYPE: BUTTERFLY SURFACE
• CAMERA TYPE (REVERSE OR REARVIEW): REVERSE
• CAMERA ANGLE: 150 DEGREE
• IMAGE SENSOR (CMOS or CCD): CMOS
• PARKING GRIDLINES: YES
• PAL or NTSC: NTSC
• IP RATING: IP67
• INPUT VOLTAGE: 12V
• MINIMUM ILLUMINATION: 0.2LUX
• NUMBER OF LEDs: N/A
• LED TYPE: N/A
• PLUG TYPE CAMERA END: 4 PIN MICRO DIN PLUG
• PLUG TYPE MONITOR END: RCA
• VIDEO CABLE LENGTH: 5.5M
• REVERSE TRIGGER ON VIDEO CABLE: YES
• DIMENSIONS (Camera Only): 18mm(H) x 38mm(W) x 30mm(L)
