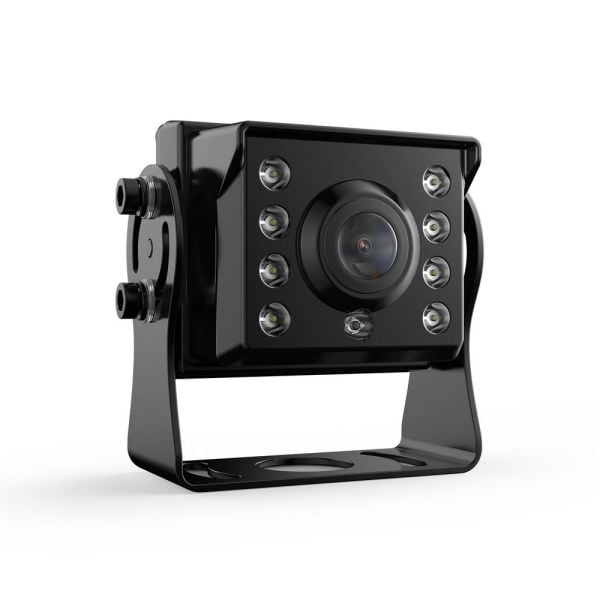

The HM-CAM10 is a heavy-duty AHD rear camera that is designed to work in conjunction with Hema Smart Mirror/Monitor DVRs to provide safer and better reversing and parking. It features a 1080p AHD high-quality resolution with its built-in G-sensor image sensor. Its extra wide angle 120° FOV also captures more of the road and objects behind your vehicle while the IR LEDs allow clear vision in low-light conditions. The supplied 2.5mm connector can be easily plugged into the smart mirror monitor and the included 8m rear camera cable also makes installation hassle-free. Rated at IP69, the rear camera works well in all weather conditions and is housed in a sturdy metal housing for heavy-duty applications.

Key Features

• Crystal-Clear Display - 1080p Analogue High Definition (AHD) Resolution doubles the resolution of a standard definition video for exceptional clarity.
• Wide visibility - its extra wide angle 120° FOV captures more of the road and objects behind your vehicle.
• 24 hour image quality - during the day or at night, eight built-in high-powered IR LEDs ensure high resolution images are viewed clearly in all lighting conditions round the clock.
• Reliable connectivity - Wired reversing camera for reliable connectivity.

Key Specifications

• Signal System: PAL
• Resolution: 1080P
• Minimum Illumination: 0 Lux
• Diagonal Angle: 120°
• Waterproof Rating: IP69K
• Nominal Voltage: 12V
• Working Temperature: -20°C to 65°C

Package includes:

• Hema HM-CAM10 Heavy Duty Analogue HD Rear Camera (Standalone)
• 8m Rear Cable
• User Manual
• Allen Key

Compatible for use with Hema Mirror/Monitor DVRs only.

For use with compatible 12V vehicles only.

Note: Initial install of reversing camera needs to be wired by a qualified auto electrician. Compatible Hema Monitor is sold separately.
