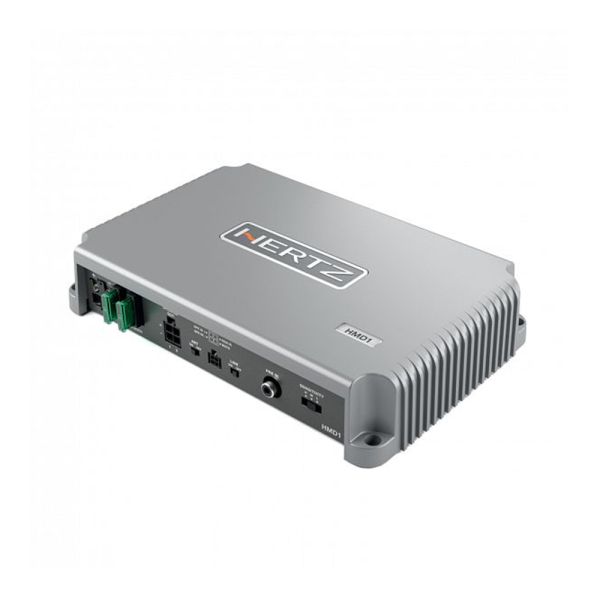

The HMD1 mono amplifier is the perfect solution to add one or more marine subwoofers to your vessel and is the ideal power extension of HMD8DSP. The extremely compact amplifier is stable at 1 ohm and can supply up to 1000W of power.

• Channel mode: 1
• Output Power (RMS) @ 14.4VDC
  • 1Ch@4Ω: 500W
  • 1Ch@2Ω: 800W
  • 1Ch@1Ω: 1000W
• Filters
  • Bypass: No
  • Hi-Pass: No
  • Lo-Pass: No
  • Band-Pass: No
  • Subsonic: No
• Distortion - THD (100Hz @4Ω): 0.1%
• S/N Ratio (A weighted @ 1V): 110dBA
• Damping factor (100Hz @4Ω): 140
• Size W x D x H: mm (in.): 243 x 48 x 159 / 9.56 x 1.8 x 6.25

Features:

• ADVANCE D-CLASS
  • Thanks to the Hertz advanced D-CLASS output stage, HMD1 joins maximum sound quality with unmatched efficiency to be very compact and easily installed in any position of the boat.
• CORROSION PROTECTION
  • Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated Marine grade (epoxy coated) PCB boards.
• SALT FOG PROOF
  • To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
• WATER JET TESTED
  • The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.
