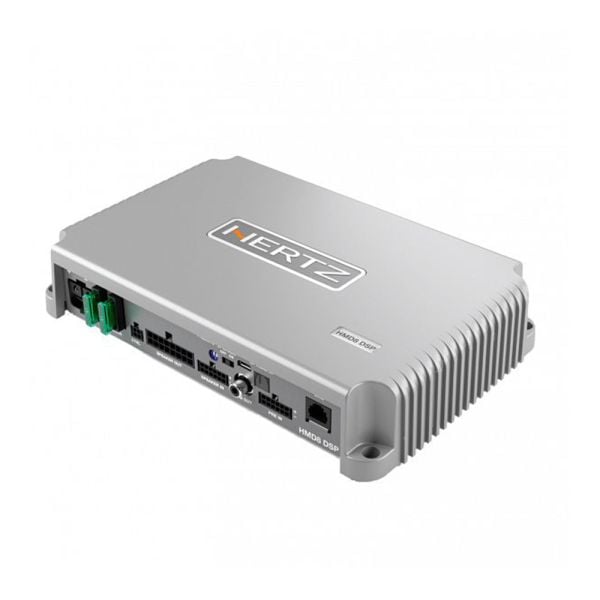

The HMDDSP24 (HMD8DSP24V), powered by Hertz Marine DSP technology, rich new highs of listening pleasure during navigation. DSP user friendly PC-Software interface make the setup process a breeze, exploiting every single pills of performance from the installed speaker system. The amazing power of 8x85W or 4x260W (RMS@ 4Ω) gives the HMD8DSP24V the capability to drive with authority the complete speaker system generating tons of crystal clear SPL up to 3 different zone of the vessel. Power for the Waves design philosophy features a sturdy enclosure made of extruded aluminium with an anti-corrosion treated PCB to ensure years of listening pleasure in open water.

DSP SPECIFICATIONS

• FILTER TYPE: FULL / HIGH PASS / LOW PASS / BAND PASS
• FILTER MODEL AND SLOPE:
  • BUTTERWORTH (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct)
  • LINKWITZ-RILEY (12, 24, 36, 48, 60 dB/oct)
  • BESSEL (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct)
  • CHEBYSHEV (6, 12, 18, 24, 30, 36, 42, 48, 54, 60 dB/oct)
  • QLP QUASI-LINEAR PHASE (6, 12 dB/oct)
• CROSSOVER FREQUENCY: 20Hz - 20000Hz INTEGER VALUES
• PHASE CONTROL: 0° - 180° ALL PASS EQUALIZER POLES
• BASS BOOST: N/A
• ANALOG INPUT EQUALIZER: N/A
• OUTPUT EQUALIZER:
  • GRAPHIC AND PARAMETRIC MODES
  • 10 PARAMETRIC POLES (PEAKING, HIGH SHELF, LOW SHELF, NOTCH, ALL PASS) ±12 DB GAIN, VARIABLE Q (0.5 - 16.0)
  • 10 GRAPHIC POLES
• TIME ALIGNMENT DISTANCE: 0 - 510CM
• TIME ALIGNMENT DELAY: 0 - 15 MS
• TIME ALIGNMENT STEP: 1CM
• TIME ALIGNMENT FINE SET STEP: 1 SAMPLE
• MEMORIES:
  • 2 MEMORIES
  • 3 PARAMETRIC POLES FOR EACH MEMORY (PEAKING, HIGH SHELF, LOW SHELF) ±12 DB GAIN, VARIABLE Q (0.5 - 16.0)
• PRESET: ROTARY SWITCH FOR 7 INSTALLATION PRESETS

AMPLIFIER SPECIFICATIONS

• DISTORTION – THD@ 1kHz 4Ω 70% RATED POWER: 0.06%
• INPUT SENSITIVITY PRE-IN: 0.6-6VRMS
• INPUT SENSITIVITY SPEAKER-IN: 2.2-22VRMS
• MINIMUM LOAD IMPEDANCE:
  • 8CH: 2Ω
  • 4CH (BRIDGE 1/2; 3/4; 5/6; 7/8): 4Ω
• OUTPUT POWER (RMS) @28.8VDC 1% THD:
  • 8CH 4Ω: 85W x 8
  • 8CH 2Ω: 130W x 8
• 4CH (BRIDGE 1/2; 3/4; 5/6; 7/8) 4Ω: 260W x 4

Features:

• 9 Channel DSP
• 8 Channel power amplifier
• 8x85W or 4x260W (RMS@ 4Ω)
• Marine Grade, corrosion resistant, water jet resistant and salt fog proof
• HERTZ Marine DSP Technology; multi-zone set up, input/output matrix crossover filter, time alignment, graphic parametric EQ and PC Software
• Digital optical input
• 22-34 VDC power input
