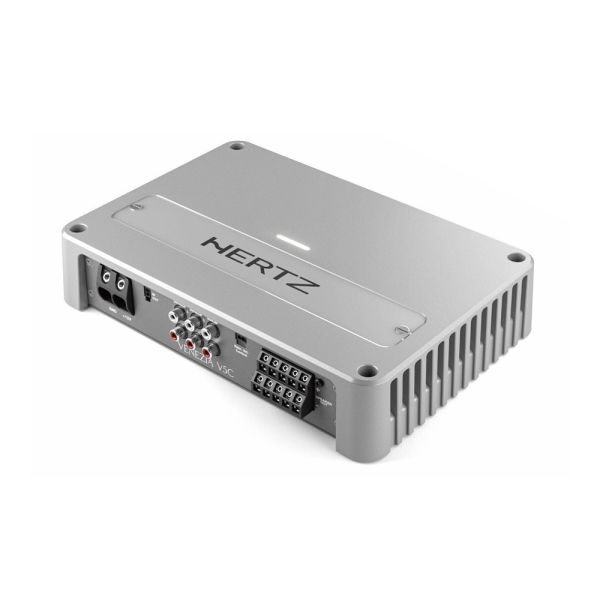

Venezia V5C 24V is the compact five-channel marine amplifier, featuring 80 W x 4 (4Ω) plus 330 W (4Ω) for the subwoofer! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V5C 24V is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V5C 24V is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Specifications:

• Channels: 5-3
• Power supply voltage: 22 ÷ 33 VDC
• ldling current (power ON/OFF):: 1.7 A / 0.05 mA
• Consumption@ 1Ω, 14.4 VDC (Max Musical Power):: 47 A
• Remote In:: 7 ÷ 15 VDC - 1 mA
• Distorsion - THD (100Hz @ 4Ω):: <0,05%
• Bandwidth:: 10 ÷ 42 kHz
• S/N Ratlo (A welghted @ 1 V):: 100 dB
• Damping factor (100Hz @ 4Ω): >130
• Pre-ln sensitivity:: 0.2 ÷ 5 VRMS
• Pre-ln impedance:: 10 kΩ
• @5Ch:: 2Ω
• @3Ch:: 4Ω + 4Ω + 2Ω
• Weight (kg/lb):: 3.72 / 8.2
• Adjustable Crossovers: yes
• OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
• 5Ch: 80 W x 4 (4Ω) + 330 x 1 (4Ω)
• 5Ch: 115 W x 4 (2Ω) + 550 W x 1 (2Ω)
• 3Ch: 230 W x 2 (4Ω) + 330 W x 1 (4Ω)
• 3Ch: 230 W x 2 (4Ω) + 550 W x 1 (2Ω)
• Total Power: 1010 W
• lnputs:: A Ch. Pre in; B Ch. Pre in; Sub Ch. Pre in
• Pre Out:: No
• A Ch. filters:: Yes
• By-Pass: Yes
• Hi-Pass :: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
• B Ch. Filters By-pass:: Yes
• B Ch. Filters Hi-Pass:: 50 ÷ 500 Hz @ 12 dB/Oct
• B Ch. Filters Band-Pass:: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
• Sub Ch. Filters By-pass:: No
• Sub Ch. Filters Low-Pass:: 50 ÷ 250 Hz @ 24 dB/Oct
• Sub Ch. Filters Phase (adjust°):: (0 ÷ 180°)
• Sub Ch. Filters Subsonic:: 25 Hz @ 24 dB/Oct
• Sub Ch. Filters Boost 50 Hz (adjust):: (0 ÷ 12) dB
