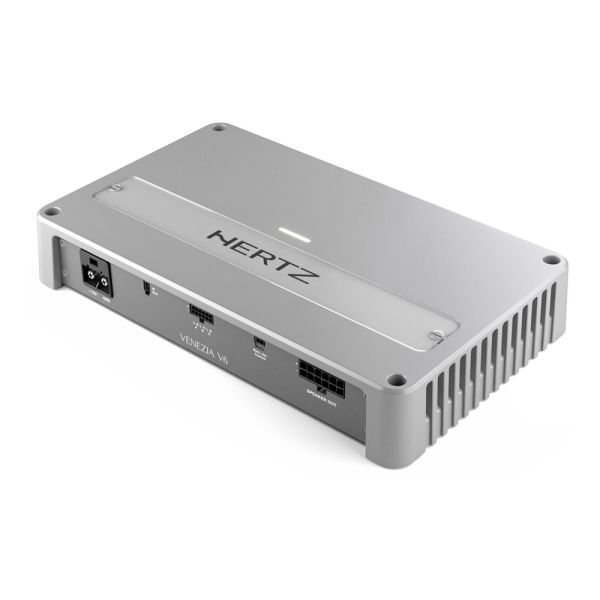

Venezia V6 24V (Order Code HMV624V) option is the first six-channel Hertz marine amplifier, featuring the impressive power of 160 W x 6 (4Ohm), delivering the output levels needed in the marine environment! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability. Venezia V6 24V is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V6 24V is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

• Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
• ADC (Advanced D-Class) Technology 2 Ohm stable output stage providing Hi-Res certified audio performance with superior efficiency.
• Die-cast aluminium compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
• Balanced fully-differential input circuitry to reject electromagnetic disturbances.
• Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
• Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
• Short-circuit, overload, and thermal protections with auto-resetting.
• Plug and Play Input and Output connections with safe-lock.
• Proprietary Plug and Play Power Supply Connector with safe-lock.

• Channels: 6 - 5 - 4 - 3
• Power supply voltage: 22 - 33 VDC
• Idling current (power ON/OFF): 1 A / 0.04 mA
• Consumption at 1Ohm, 28.8 VDC (Max Musical Power): 30A
• Remote In: 7-33 VDC - 1 mA
• Distortion - THD (100Hz at 4Ohm): less than 0.06 percent
• Bandwidth: 10 - 42 kHz
• S/N Ratio (A weighted at 1V): 100 dB
• Damping factor (100Hz at 4Ohm): 130
• Pre-ln sensitivity: 0.2-5VRMS
• Pre-ln impedance: 10 k Ohm
• Adjustable Crossovers: Yes
• Output Power (RMS) at 14.4 VDC, THD 1 Percent:
  • 6Ch: 160 W x 6 (4 Ohm)
  • 6Ch: 290 W x 6 (2 Ohm)
  • 5Ch: 160 x 4 (4 Ohm) + 580 x 1 (4 Ohm)
  • 5Ch: 290 x 4 (2 Ohm) + 580 x 1 (4 Ohm)
  • 4Ch: 160 x 2 (4 Ohm) + 580 x 2 (4 Ohm)
  • 4Ch: 290 x 2 (2 Ohm) + 580 x 2 (4 Ohm)
  • 3Ch: 580 x 3 (4 Ohm)
• Total Power RMS: 1740W
• Notes: Optional gain controller available (Model: HRCBM2)
