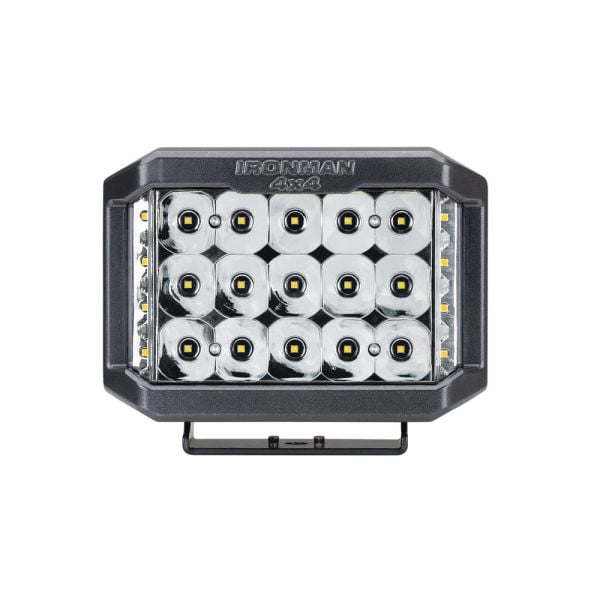

The Eclipse 5×7 driving lights offer a whole different look, and well complement many, if not most vehicles with their squared off appearance. Combining 15 high powered LEDs for forward projection and 8 side-shooters for optimal spread, the Eclipse 5×7 features a cast aluminium heat sink, IP67/69 rating as well as a virtually indestructible polycarbonate lens.

Class Leading OSRAM LEDs

50,000 hour lifespan

6000-KELVIN Colour

optimal light that’s easy on the eyes

Diecast Alloy Housing

withstand extreme conditions

Straight- up Distance, Good Spread

Bringing back the retro style in driving lights with these 5×7 Eclipse LED driving lights.

The perfect rectangle shape combined with a side shooter spread provides straight-up distance with a pleasing amount of spread.

Designed and engineered to produce the closest imitation light to natural daylight (6000K), the 5×7 Eclipse driving light provides a beam reach of over 1.3km with a combined wattage of 99W per light.

Specifications:

• Raw Lumens: 7,540
• Effective Lumens: 5,654
• Lumen Efficiency: 74.99%
• LEDS: OSRAM
• LED Configuration: 15 x 5W and 8 x 3W
• Dimmability: No
• IP Rating: IP67/69K
• 1 LUX Rating: Single: 648m
• LUX @ 10M: 4,200
• Max Power: 75W
• Current Draw: ~6.48 amps @ 12V
• Kelvin (Colour): 6,000K
• Dimensions (Light): 177mm(l) x 164mm(w) x91mm(d)
• Height (including mount): 164mm (6.4”)
