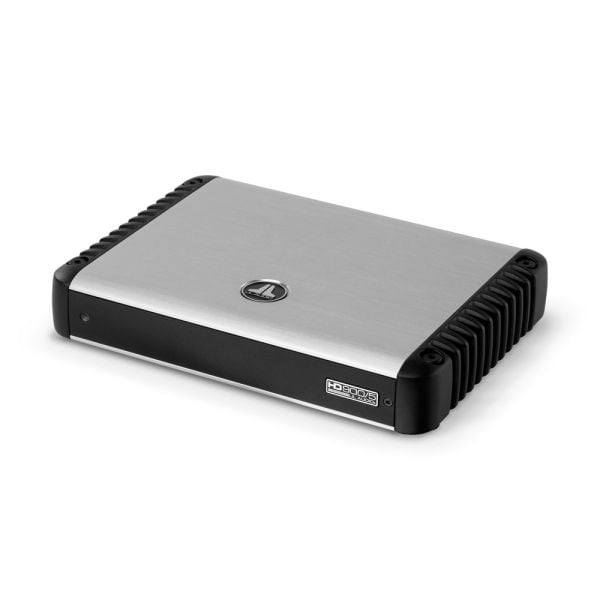

JL Audio HD Series 5-Channel Class-D Amplifier 900W HD900/5
Description
5-Channel Class D System Amplifier, 100 W x 4 + 500 W x 1
Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using our Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500 W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.
This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
Features
- Rated Continuous (RMS) Power @ 14.4 V Main Channels @ 4 Ω: 100 W RMS x 4
- Rated Continuous (RMS) Power @ 14.4 V Main Channels @ 3 Ω: 75 W RMS x 4
- Rated Continuous (RMS) Power @ 14.4 V Main Channels @ 2 Ω: 75 W RMS x 4
- Rated Continuous (RMS) Power @ 14.4 V Main Channels @ 1.5 Ω: 75 W RMS x 4
- Rated Continuous (RMS) Power @ 14.4 V Main Channels - Bridged @ 8 Ω: 200 W RMS x 2
- Rated Continuous (RMS) Power @ 14.4 V Main Channels - Bridged @ 4 Ω: 150 W RMS x 2
- Rated Continuous (RMS) Power @ 14.4 V Subwoofer Channel @ 4 Ω: 500 W RMS x 1
- Rated Continuous (RMS) Power @ 14.4 V Subwoofer Channel @ 3 Ω: 500 W RMS x 1
- Rated Continuous (RMS) Power @ 14.4 V Subwoofer Channel @ 2 Ω: 500 W RMS x 1
- Rated Continuous (RMS) Power @ 14.4 V Subwoofer Channel @ 1.5 Ω: 500 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V Main Channels @ 4 Ω: 100 W RMS x 4
- Rated Continuous (RMS) Power @ 12.5 V Main Channels @ 3 Ω: 75 W RMS x 4
- Rated Continuous (RMS) Power @ 12.5 V Main Channels @ 2 Ω: 75 W RMS x 4
- Rated Continuous (RMS) Power @ 12.5 V Main Channels @ 1.5 Ω: 75 W RMS x 4
- Rated Continuous (RMS) Power @ 12.5 V Main Channels - Bridged @ 8 Ω: 200 W RMS x 2
- Rated Continuous (RMS) Power @ 12.5 V Main Channels - Bridged @ 4 Ω: 150 W RMS x 2
- Rated Continuous (RMS) Power @ 12.5 V Subwoofer Channel @ 4 Ω: 500 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V Subwoofer Channel @ 3 Ω: 500 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V Subwoofer Channel @ 2 Ω: 500 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V Subwoofer Channel @ 1.5 Ω: 500 W RMS x 1
- Frequency Response (Main Channels): 12 Hz - 28 kHz (+0, -1dB)
- Frequency Response (Subwoofer Channel): 12 Hz - 10 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power (Main Channels): >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W (Main Channels): >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω: >400 / 50 Hz
- Damping Factor @ 2 Ω: >200 / 50 Hz
- THD+N @ Rated Power (Main Channels): <0.03% @ 4 Ω
- THD+N @ Rated Power (Subwoofer Channel): <0.05% @ 4 Ω
- Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Min.Copper Power / Ground Wire Gauge: Accepts up to 4 AWG wire
- Fuse Rating: 60 A (AFS, AGU or MaxiFuse™)
- Filter Mode(s): Channels 1 & 2 (front): High-Pass only
- Filter Slope(s): Channels 1 & 2 (front): 12/24 dB/octave
- Filter Frequency Range: Channels 1 & 2 (front): 50 Hz - 500 Hz
- Filter Mode(s): Channels 3 & 4 (rear): High-Pass only
- Filter Slope(s): Channels 3 & 4 (rear): 12/24 dB/octave
- Filter Frequency Range: Channels 3 & 4: 50 Hz - 500 Hz
- Filter Mode(s): Subwoofer Channel: Low-Pass only
- Filter Slope(s): Subwoofer Channel: 12/24 dB/octave
- Filter Frequency Range: Subwoofer Channel: 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometers: Yes
- Filter Defeat Function: Yes
- Infrasonic Filter: Subwoofer Channel: 30 Hz, Defeatable
- Remote Level Control: Optional (HD-RLC)
- Remote Level Modes: Sub Ch. only
- Channel Input Mode Switch: Yes (2/4/6 ch.)
- Pass-Through Preamp Output: None
- Source Channel Selection for PreOuts: N/A
- Height (H): 1.93 in / 49 mm
- Width (W): 10.74 in / 273 mm
- Depth (D): 7.85 in / 199 mm
- Net Weight: 6.85 lb / 3.11 kg
More Information
| Channels | 5 Channel |
|---|---|
| RMS Power @ 4 Ohm | 100W x 4 or 200W x 2 + 500W x 1 |
| RMS Power @ 2 Ohm | 75W x 4 + 500W x 1 |
| RMS Power @ 1 Ohm | N/A |
| Crossover Channel 1/2 | HP 50Hz-500Hz @ 12 or 24dB/oct |
| Crossover Channel 3/4 | HP 50Hz-500Hz @ 12 or 24dB/oct |
| Crossover Channel 5/6 | LP 50Hz-500Hz @ 12 or 24dB/oct |
| Subsonic Filter | 30Hz |
| Bass Boost | No |
| Speaker Level Input | Yes (via RCA) |
| Auto Turn-On | No |
| Remote Sub Controller | Optonal (HD-RLC) |
| Dimensions | 49 x 273 x 199mm |
