Compact Design

Allows for installation almost anywhere, including tight spaces such as under a seat or panel.

Remote Control Sound Adjustment

Volume: Input sensitivity control knob
ACTIVE EQ: Equalizer selector switch
Frequency: Cut-off freqeuncy control knob
Phase: Phase select switch

New Diaphragm Speaker

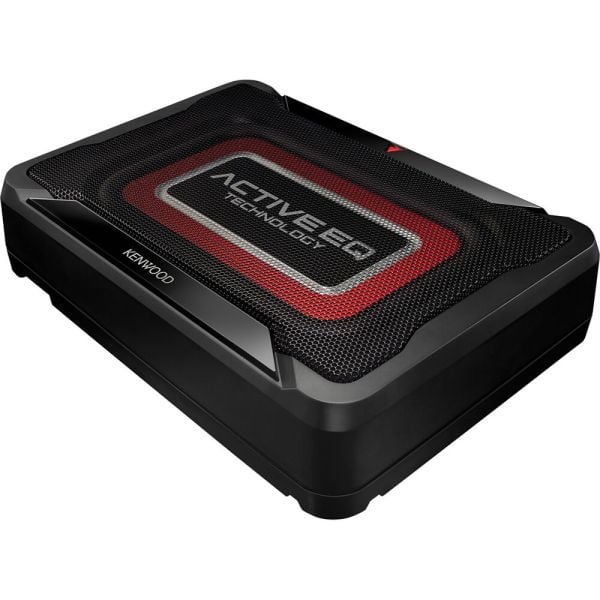

The KSC-PSW7EQ is equipped with a micro-step shape on the long edge of the diaphragm surrounding the diaphragm. This suppresses the unwanted movement of the diaphragm, which vibrates like a seesaw in the longitudinal direction during operation, thereby supporting accurate vibration and reproducing accurate bass sound to the music.

Flexible Connectivity and Installation

Supports speaker level input to connect OEM receiver without RCA outputs.
Power turns on from either speaker level or RCA signal.

Tech Spec

Woofer Size: 200mm x 130mm
Max Power (W): 160W
Current Consumption: 5.9A
Sensitivity (dB at 1m): 89dB
Frequency Response (Hz): 40Hz - 200Hz (-15dB)
Speaker Level Input: Yes (Speaker Level Input)
Signal Sensing Turn-on: Yes (Speaker Level or RCA)
Dimension (W x H x D): 280mm x 70mm x 200mm
Weight: 2.6kg
Remote Control Cable Length: 5m
