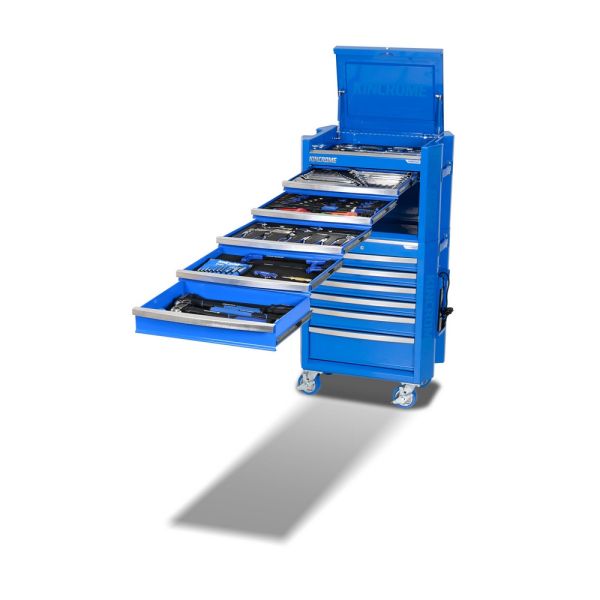

The CONTOUR® range of Carts, Chests, Hutches, Trolleys & Tool Kits is our premium level range, developed for those looking for trade quality tools and features.

CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer.

Designed in Australia by KINCROME, the CONTOUR® range features a sleek contoured design, available in either black or blue with a UV protected powder coated finish.

CONTOUR® storage comes standard with a range of premium features, including; the chamfered screen printed Kincrome side panels, ’Automatic Drawer Retention System (ADRS)’ locking system, heavy duty steel side handles, side folding work trays (including magnetic power boards), stainless steel worktops & heavy duty swivel castors for easy manoeuvrability.

CONTOUR® offers a complete range of carts, chests, hutches, trolleys & kits to suit every need, from; 10” mini, 29” standard, 42” extra wide & 60” super wide.

CONTOUR® is fully modular & customisable, offering the flexibility to build your own premium workshop, the way you want.

Specifications

• Brand: KINCROME
• 12 Month Protection Plan: Yes
• Automatic Drawer Retention System (ADRS): Yes
• Castor Size: 5" x 2" (125mm x 50mm)
• Castor Type: Heavy Duty Swivel Castors (2x Locking)
• Drawer Load Rating: 40kg (Per Drawer)
• Drawer Measurements: 544 x 397 x 41mm (Chest - Large Shallow)
  544 x 397 x 96mm (Chest - Large Deep)
  544 x 397 x 56mm (Trolley - Large Shallow)
  544 x 397 x 85mm (Trolley - Large Deep)
  544 x 397 x 166mm (Trolley - Large Extra Deep)
• Drawer Slides Type: 45mm Ball Bearing
• Drive: 1/4", 3/8", 1/2"
• Extra Depth: Yes
• Finish: UV Stabilised Powder Coat
• Folding Trays: Yes
• Lid Support: Gas Struts
• Lockable: Yes
• LOK-ON Sockets Accessories: Yes
• Measurement System: Metric & Imperial
• Measurements: 730 x 470 x 1402mm
• Number Of Drawer Liners: 11
• Number Of Drawers: 11
• Number Of EVA Trays: 4
• Pieces: 278
• Power Board: Yes
• Range: CONTOUR
• Recessed Handles: Yes
• Shelf Load Rating: 15kg (Per Shelf)
• Tool Chest Measurements: 730 x 470 x 486mm
• Tool Chest Weight: 45kg
• Tool Trolley Weight: 66kg
• Warranty: Limited Lifetime
• Work Surface: Stainless Steel
• Material: Various Materials
• Size: 29"
• Length (mm): 730
• Width (mm): 470
• Height (mm): 1402
• Weight (kg): 130.15

Contents

TOP TRAY - EVA900T - 100 Piece LOK-ON™ Sockets & Accessories EVA Tray

Metric Sockets

• 10 LOK-ON™ Sockets 1/4" Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm
• 14 LOK-ON™ Sockets 3/8" Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21mm
• 20 LOK-ON™ Sockets 1/2" Square Drive: 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30, 32mm

Imperial Sockets

• 9 LOK-ON™ Sockets 1/4" Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"
• 7 LOK-ON™ Sockets 3/8" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
• 15 LOK-ON™ Sockets 1/2" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.3/16, 1.1/4"

Socket Accessories

6 1/4" Drive Socket Accessories:

• LOK-ON™ Reversible Ratchet Handle
• LOK-ON™ Flex Handle 150mm (6")
• LOK-ON™ Universal Joint
• LOK-ON™ Extension Bar 65mm
• LOK-ON™ Extension Bar 165mm
• LOK-ON™ Extension Bar 265mm

8 3/8" Drive Socket Accessories:

• LOK-ON™ Reversible Ratchet Handle
• LOK-ON™ Flex Handle 200mm (8")
• LOK-ON™ Universal Joint
• LOK-ON™ Extension Bar 70mm
• LOK-ON™ Extension Bar 175mm
• LOK-ON™ Extension Bar 275mm
• LOK-ON™ Socket Adaptor 3/8" Female x 1/4" Male
• LOK-ON™ Socket Adaptor 3/8" Female x 1/2" Male

11 1/2" Drive Socket Accessories:

• LOK-ON™ Reversible Ratchet Handle
• LOK-ON™ Flex Handle 375mm (15")
• LOK-ON™ Universal Joint
• LOK-ON™ Extension Bar 95mm
• LOK-ON™ Extension Bar 155mm
• LOK-ON™ Extension Bar 280mm
• LOK-ON™ Extension Bar 405mm
• LOK-ON™ Socket Adaptor 1/2" Female x 3/8" Male
• Spark Plug Socket 14mm (9/16")
• Spark Plug Socket 16mm (5/8")
• Spark Plug Socket 21mm (13/16")

DRAWER 1 - EVA910T - 30 Piece Combination Spanners EVA Tray

Metric Spanners

• 17 Combination Spanners: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

Imperial Spanners

• 13 Combination Spanners: 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1"

DRAWER 2 - EVA917T - 115 Piece TorqueMaster® Screwdrivers & Fastening EVA Tray

9 TorqueMaster® Blade Screwdrivers:

• 3mm x 75mm, 4mm x 100mm, 5mm x 100mm, 5mm x 150mm, 6mm x 38mm, 6mm x 100mm, 6mm x 250mm, 8mm x 150mm, 9.5mm x 250mm

6 TorqueMaster® Phillips Screwdrivers:

• No.0 x 75mm, No.1 x 75mm, No.2 x 38mm, No.2 x 100mm, No.3 x 150mm

• TorqueMaster® Bit Holder Driver 6mm Hex Drive
• TorqueMaster® Bit Holder Coupler 1/4" Drive x 1/4" Hex
• TorqueMaster® Spinner Handle 1/4" Drive
• TorqueMaster® Magnetizer/De-Magnetizer

33 Piece Security Bit & Holder Set:

• 1/4"(F) x 1/4"(M) Magnetic Bit Holder
• 3 MORTORQ® Bits: #6, 8, 10
• 4 Spanner Bits: 4, 6, 8, 10mm
• 4 Tri-wing Bits: 1, 2, 3, 4
• 6 Metric Hexagonal Security Bits: 2, 2.5, 3, 4, 5, 6mm
• 6 Imperial Hexagonal Security Bits: 5/32, 9/64, 1/8, 7/64, 3/32, 5/64"
• 9 Tamperproof TORX® Bits: T8, T10, T15, T20, T25, T27, T30, T35, T40

14 Piece Impact Screwdriver Set:

• Impact Screwdriver Handle
• Blade Bits: 5, 6, 8, 10, 12mm
• Phillips Bits: #1, 2, 3, 4
• Hex Bits: 4, 5, 6, 8mm

9 Piece Ratcheting Screwdriver Set:

• Ratcheting Screwdriver Handle (with internal bit storage)
• Blade: 4, 6mm
• Phillips: No.1, 2
• Hex: 3, 5mm
• 2 Interchangeable Bit Drivers: 50, 153mm

6 Piece Precision Screwdriver Set:

• Blade: 1.4, 2.0, 2.4, 3.0mm
• Phillips: No.0, 1

9 Piece Metric Ball Point Long Series Hex Key Set:

• 1.5 x 14 x 90mm, 2.0 x 16 x 100mm, 2.5 x 18 x 112mm, 3.0 x 20 x 126mm, 4.0 x 25 x 140mm, 5.0 x 28 x 160mm, 6.0 x 32 x 180mm, 8.0 x 36 x 200mm, 10.0 x 40 x 224mm

9 Piece Imperial Ball Point Long Series Hex Key Set:

• 1/16" x 14 x 90mm, 5/64" x 16 x 100mm, 3/32" x 18 x 112mm, 1/8" x 20 x 126mm, 5/32" x 25 x 140mm, 3/16" x 28 x 160mm, 1/4" x 32 x 180mm, 5/16" x 36 x 200mm, 3/8" x 40 x 224mm

9 Piece TORX® Long Series Key Set:

• T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm, T45 x 44 x 210mm, T50 x 50 x 235mm

9 Piece Tamperproof TORX® Long Series Key Set:

• T10H x 14 x 90mm, T15H x 16 x 100mm, T20H x 18 x 112mm, T25H x 20 x 126mm, T27H x 25 x 140mm, T30H x 28 x 160mm, T40H x 32x 180mm, T45H x 36 x 200mm, T50H x 40 x 224mm

DRAWER 3 - EVA927T - 11 Piece Pliers & Wrenches EVA Tray

• Adjustable Wrench 200mm (8")
• Adjustable Wrench 250mm (10")
• Adjustable Wrench 300mm (12")
• Combination Pliers 200mm (8")
• Diagonal Cutting Pliers 200mm (8")
• Long Nose Pliers 200mm (8")
• Cable Cutters 200mm (8")
• Long Nose Pliers Bent 200mm (8")
• Multi-Grip Pliers 250mm (10")
• Locking Pliers Curved Jaw 175mm (7")
• Locking Pliers Curved Jaw 250mm (10")

LOOSE TOOLS

10 Piece Punch & Chisel Set:

• 3 Cold Chisels: 13, 16, 19m
• Centre Punch: 4mm
• 2 Starter Punches: 3, 5mm
• 4 Long Pin Punches: 2.5, 3, 4, 6mm

2 Piece Pry Bar Set:

• Extended Bent Pry Bar 450mm (18”)
• Bent Pry Bar 200mm (8”)

• Professional Hacksaw 300mm (12")
• GRAPHITE Ball Pein Hammer 16oz
• GRAPHITE Ball Pein Hammer 24oz
• IRONKORE™ Club Hammer 1.8kg / 4lb
• Dead Blow Hammer 24oz (680g)
• Polythene/Nylon Soft Face Hammer 38mm
• Folding Utility Knife Quick Release
• Automatic Centre Punch

TOOL STORAGE

• CONTOUR® Tool Chest 5 Drawer 29" - K72915
• CONTOUR® Tool Trolley 6 Drawer 29" - K72926
