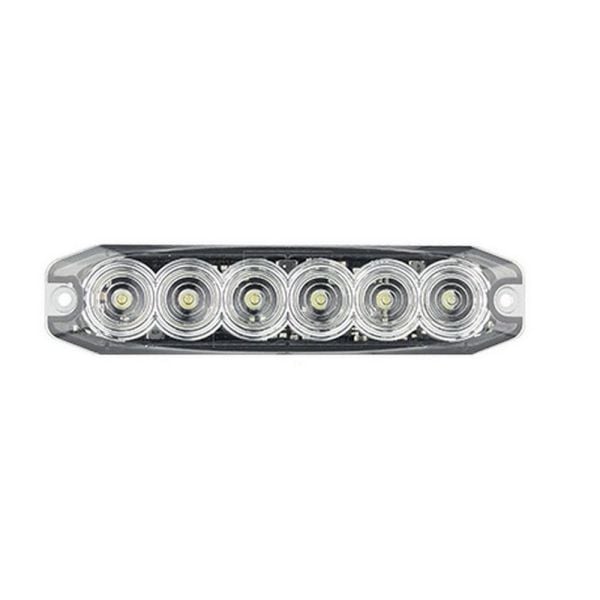

LED Autolamps 120035BM Blue 6 Module LED Emergency Lamp 12/24V 3m Tape Flush Mount
Part No.
120035BM
Special Price
$99.90
Regular Price
$110.99
You Save
10%
off RRP
Buy Now, Pay Later
4 payments of $24.98
Description
Features / Specifications
- 14 Flash Patterns
- 3M Tape/Screw Fitting
- Synchronising Wire
- SAE J595 Class 1
- Available in 4 Colours
- IP67 100% Water proof
- Voltage Range 12-24 Volt
- 131mm x 30mm x 8mm
- 3 Year Warranty
Fitting Instructions
Remove backing from 3M tape on back of lens, run wires through hole in mounting surface. Apply firm hand pressure to ensure lamp adhesion. Use provided screws to secure lamp further. Refer to ADR 13/00 for mounting instructions.
| Function | Blue Emergency Lamp | |
| Part No. | ||
| 120035BM | Blister | |
| . | ||
| LED Qty | 6 x 3 Watt | |
| Flash Rate | Multiple with 14 Flash Patterns | |
| Approvals | SAE/J595 Class 1* | |
| Cable | 25cm | |
| Draw | Constant | Strobe |
| @13.8V | 0.29A | 0.72-0.005A |
| @28V | 0.153A | 0.36-0.008A |
