Utilise the full potential of your BEAST Driving Lights by Lightforce, with this dedicated Plug & Play Wiring Harness. This harness is specifically designed to make BEAST’s 3-mode operation compatible with both Mazda BT50 and Isuzu D-Max.

The harness kit comes complete with a dedicated headlight adaptor for simple integration into your vehicle’s headlight circuit.

A very small (8mm in diameter) single moulded 8 pin connector makes installation quick and easy as only one connector is required to pass through the vehicle’s firewall, and connects directly to the BEAST 3-Mode Smart Switch. The smart switch illumination has been colour matched to the factory backlight colour, to ensure an OEM look and feel.

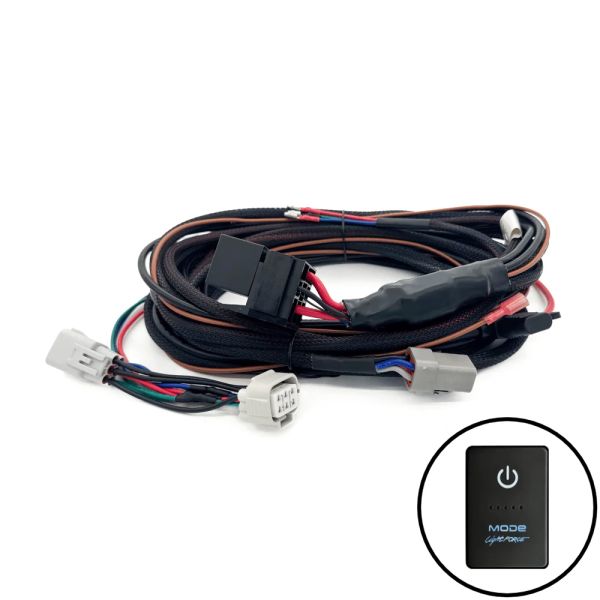

Kit contents

• 1x Beast driving light harness including relay
• 1x 3-mode Smart Rocker Switch with BT50/D-Max adaptor
• 1x Dedicated headlight adaptor for BT50/D-Max
• 1x Ignition pickup for BT50/D-Max
• Cable ties and mounting hardware
• User instructions via QR code

Specifications

• 12V operation
• 40 Amp relay
• Positive or negative switching (controlled electronically)

* Not compatible with 2024 facelift model.
