Hall effect sensor designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output.

Typical automotive applications include:

• Crank & Cam Signals
• Speedometers
• Anti-lock braking systems

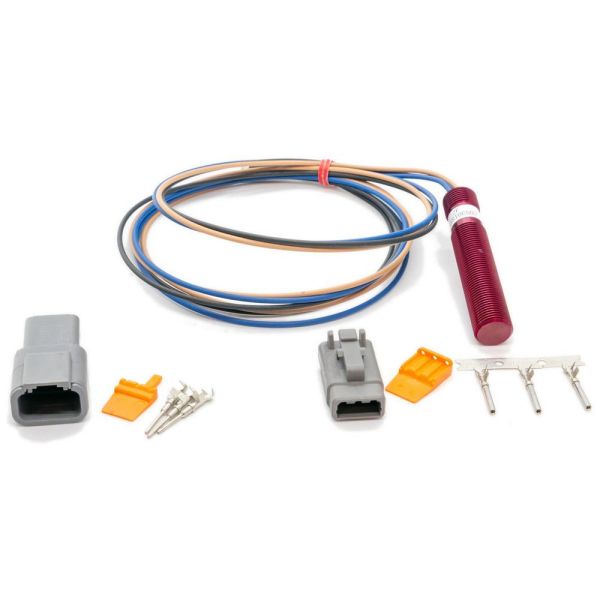

Box Contents

• 1 x Hall Effect Sensor
• 1 x DTM3 Connector Kit Set (Matching set, Male & Female connectors, pins & wedges)


• From near zero speed up to 15 kHz sensing capability
• 10 bit dynamic threshold direction offers: Automatically adjusting magnetic range, Self-compensating to target geometry
• Compatible with unregulated power supply
• RoHS compliant
• IP67
• Typical air gap of 1.5 mm
