Link G5 CAN Connection Cable 101-5104

Link G5 CAN Connection Cable 101-5104

$88.00

Description

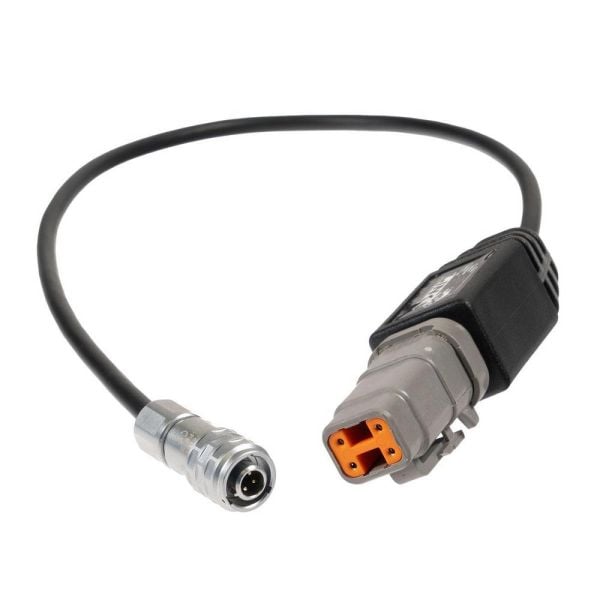

300mm CAN Cable. Required to add CAN 1 communication to G5 Voodoo Neo ECU's which have CAN accessible via the 4-Pin round Weipu CAN connector on the front of the ECU.

Compatible ECU's:

G5 Voodoo Neo (CAN1)

Specs

DTM4 Male to WEiPU SF610B/P4. CAN Loom Length 300mm. Power for CAN is supplied via this cable from the ECU.

DTM4 Pin Out

Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
