Link G4X MonsoonX Wire-In Bundle

This bundle includes the Link G4X MonsoonX ECU along with essential components required to begin wiring and installation.

It is designed as a simple entry level package for four cylinder builds.

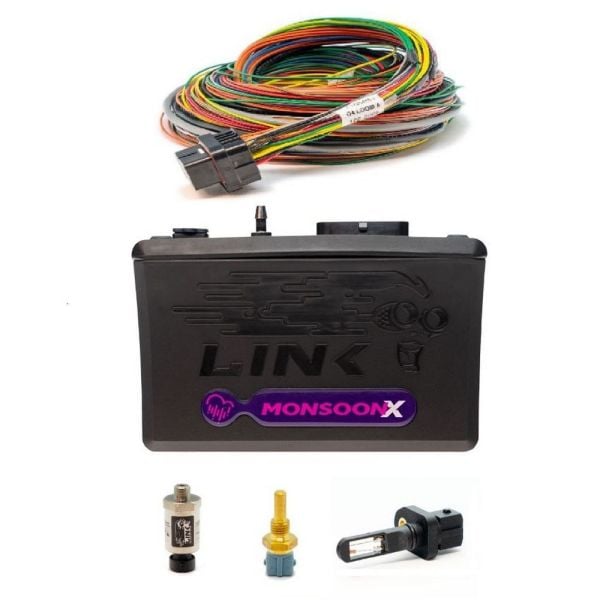

What Is Included

• G4X MonsoonX ECU
• A loom 2.5m
• Intake air temperature sensor
• Coolant temperature sensor
• 10 bar pressure sensor

G4X MonsoonX ECU

The Link G4X MonsoonX is a compact ECU designed for entry to mid level builds requiring reliable control with additional motorsport features over the AtomX.

Key Features

• Sequential injection up to 4 cylinders
• Built in MAP sensor
• Boost control and launch control capability
• VVT control support
• 512MB onboard logging memory

Key Specifications

• Injector outputs: 4
• Ignition outputs: 4
• Drive by wire: No
• Onboard MAP sensor: Yes

Important Notes

• Designed for simple installations
• Additional components may be required
• Professional installation recommended
