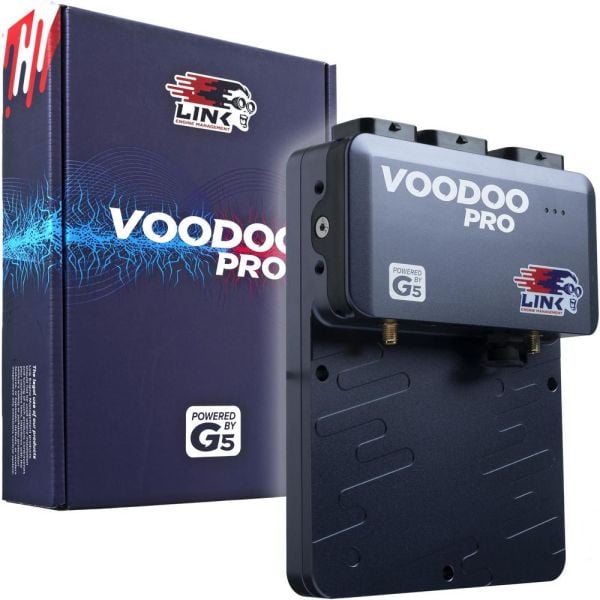

Link G5 Voodoo Pro Wire-In ECU

The Link G5 Voodoo Pro is a flagship level wire-in ECU designed for professional motorsport and high performance builds. It provides maximum input and output capacity along with advanced processing and full support for port and direct injection systems.

This ECU is built for extreme applications requiring ultimate flexibility, scalability and advanced control strategies.

Who This ECU Is For

• Professional motorsport builds
• High cylinder count or high output engines
• Advanced direct injection systems
• Users requiring maximum ECU capability

Key Features

• Supports up to 12 cylinder engines
• Dual onboard wideband lambda controllers
• Dual drive by wire control
• Built in WiFi and GPS
• Dual microcontroller architecture
• Advanced CAN integration

Key Specifications

• Max cylinders: 12
• Injector outputs: 12 plus 4 shared
• Ignition outputs: 8
• Drive by wire: Yes
• Direct injection: Yes (requires external driver)
• Onboard MAP sensor: No
• Onboard wideband: Yes (dual)
• CAN bus: 2
• Logging memory: 1GB

Detailed Specifications

• Analog inputs: 14
• Digital inputs: 10
• Auxiliary outputs: up to 30 depending on configuration
• Trigger inputs: 2
• Knock inputs: 2
• Dual wideband controllers
• Communication: USB-C, CAN, WiFi, GPS

What You Need To Run This ECU

• A, B and E connector kits or motorsport harness
• Wideband sensors
• MAP and temperature sensors
• Direct injection driver if required

What Is In The Box

• G5 Voodoo Pro ECU
• USB-C cable
• WiFi antenna
• GPS antenna
• Quick start guide
• Installer I O table

Important Notes

• Requires A, B and E connector kits
• Professional motorsport installation recommended
• Designed for advanced users and high end builds
