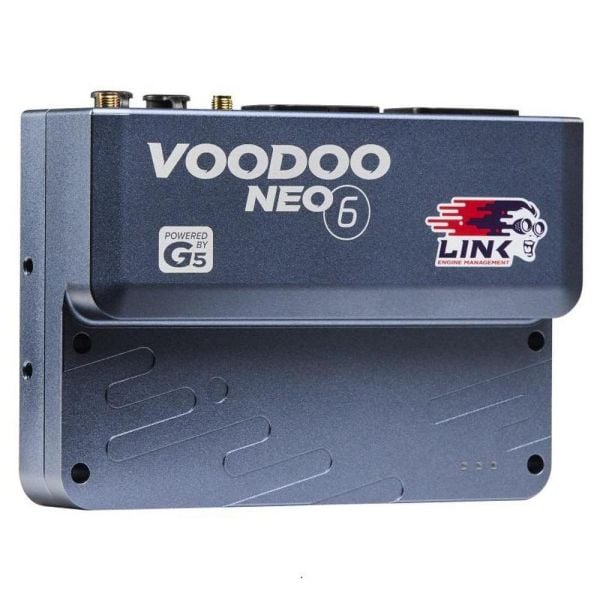

Link G5 Voodoo Neo 6 Wire-In ECU

The Link G5 Voodoo Neo 6 is a high capacity wire-in ECU designed for advanced builds requiring increased injector and ignition control. It expands on the Neo 4 with additional outputs for larger engines and staged injection setups.

This ECU is suited to high performance street and motorsport builds, including direct injection applications and multi cylinder engines.

Who This ECU Is For

• High performance multi cylinder engines
• Direct injection and staged injection builds
• Motorsport and high horsepower applications
• Users needing increased I O capacity

Key Features

• Supports up to 8 cylinder port or direct injection
• Supports staged injection systems
• Dual drive by wire control
• Built in wideband lambda controller
• USB-C, WiFi, Ethernet and GPS connectivity
• 1GB onboard logging memory
• Advanced configurable I O

Key Specifications

• Max cylinders: 8 port or direct injection
• Injector outputs: 12
• Ignition outputs: 8
• Drive by wire: Yes
• Direct injection: Yes (requires DI driver)
• Onboard MAP sensor: No
• Onboard wideband: Yes
• CAN bus: 1
• Logging memory: 1GB

Detailed Specifications

• Analog inputs: 3
• Digital inputs: 10
• Auxiliary outputs: 6
• Trigger inputs: 2
• Knock inputs: 2
• ADIO and shared injector DI pins
• Communication: USB-C, CAN, WiFi, Ethernet, GPS

What You Need To Run This ECU

• A and B connector kits or wiring harness
• Wideband sensor
• MAP and temperature sensors
• Direct injection driver if required

What Is In The Box

• G5 Voodoo Neo 6 ECU
• USB-C cable
• WiFi antenna
• GPS antenna
• Quick start guide
• Installer I O table

Important Notes

• Requires A and B connector kits
• Professional installation recommended
• DI requires external driver module
