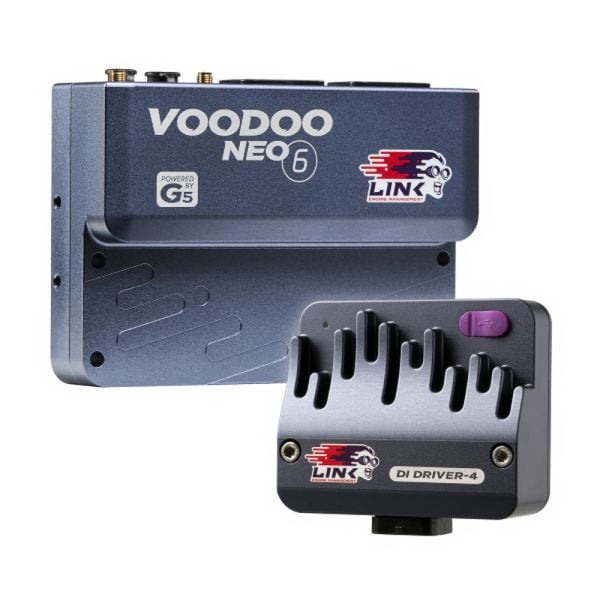

Link G5 Voodoo Neo 6 + DI Driver-4 Bundle

This bundle combines the G5 Voodoo Neo 6 ECU with a DI Driver-4 module, delivering a complete solution for modern direct injection engine builds. It is designed for high performance applications requiring precise fuel control, advanced ignition strategies and modern ECU connectivity.

The system supports staged port and direct injection setups, making it suitable for both OEM based engines and high performance conversions.

What Is Included

• G5 Voodoo Neo 6 ECU
• DI Driver-4 module

G5 Voodoo Neo 6 ECU

The Link G5 Voodoo Neo 6 is a high performance wire-in ECU designed for advanced builds requiring increased injector and ignition capacity along with modern communications and logging capability.

It supports both port and direct injection setups, making it suitable for modern engines and high performance conversions.

Key Features

• Supports up to 8 cylinder port injection or 6 cylinder direct injection
• Staged port and direct injection capability
• 12 injector outputs and 8 ignition outputs
• Dual drive by wire control
• Built in wideband lambda controller
• USB-C, WiFi, Ethernet and GPS connectivity
• 1GB onboard logging memory
• High speed logging up to 100k samples per second
• Flexible ADIO configurable inputs and outputs

Key Specifications

• Injector outputs: 12
• Ignition outputs: 8
• Drive by wire: Yes
• Direct injection: Yes (requires DI Driver)
• Onboard wideband: Yes
• CAN bus: 1
• Logging memory: 1GB

Detailed Specifications

• Analog inputs: 3
• Digital inputs: 10
• Auxiliary outputs: 6
• Trigger inputs: 2
• Knock inputs: 2
• Communication: USB-C, CAN, WiFi, Ethernet, GPS

DI Driver-4 Module

• Controls up to 4 direct injectors
• Supports high pressure fuel pump control
• Stackable via CAN for expanded setups
• Designed for seamless integration with G5 ECUs

Important Notes

• Additional DI Driver modules can be added for higher cylinder count
• Requires wiring harness, sensors and tuning setup
• Professional installation strongly recommended
