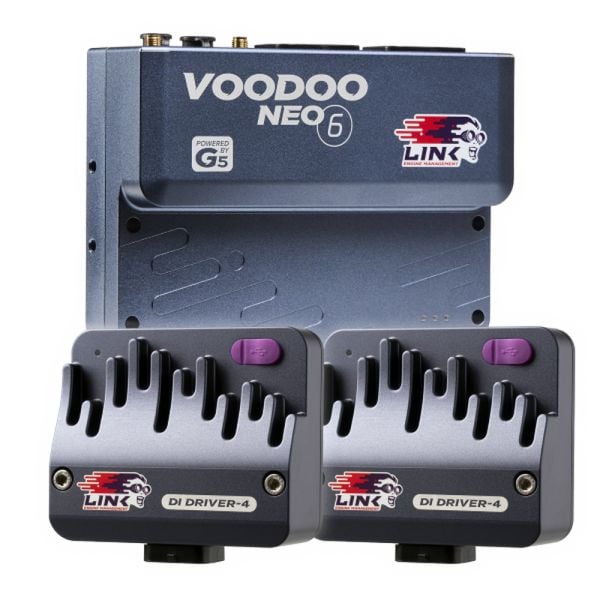

Link G5 Voodoo Neo 6 + Dual DI Driver-4 Bundle

This bundle includes the G5 Voodoo Neo 6 ECU paired with two DI Driver-4 modules, providing expanded capability for higher cylinder count direct injection engines.

It is designed for advanced builds requiring scalable direct injection control, high output performance and maximum tuning flexibility.

What Is Included

• G5 Voodoo Neo 6 ECU
• 2 x DI Driver-4 modules

G5 Voodoo Neo 6 ECU

The Link G5 Voodoo Neo 6 is a high performance wire-in ECU designed for advanced builds requiring increased injector and ignition capacity along with modern communications and logging capability.

Key Features

• Supports up to 8 cylinder port injection or 6 cylinder direct injection
• Staged injection capability
• 12 injector outputs and 8 ignition outputs
• Dual drive by wire control
• Built in wideband lambda controller
• Advanced connectivity including USB-C, WiFi, Ethernet and GPS
• 1GB onboard logging memory

Key Specifications

• Injector outputs: 12
• Ignition outputs: 8
• Drive by wire: Yes
• Direct injection: Yes (requires DI Driver)
• Onboard wideband: Yes
• CAN bus: 1

DI Driver-4 Modules

• Controls up to 4 injectors per module
• Two modules included for expanded DI capability
• Stackable and scalable via CAN

Important Notes

• Designed for advanced installations
• Requires full wiring and sensor integration
• Professional installation recommended
