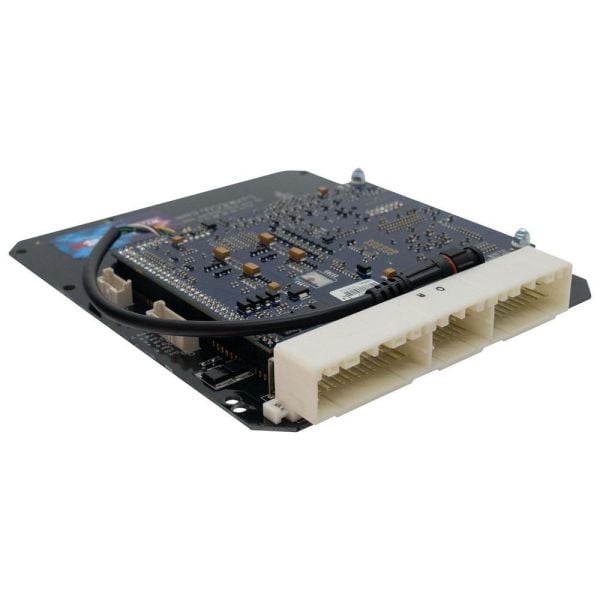

Link G4X Plug-In ECU Honda OBD1 B16 B18 1992 to 1995

The Link G4X Plug-In ECU for Honda OBD1 platforms is a direct replacement ECU designed to install inside the factory enclosure with no wiring modifications required. It provides full standalone engine management while retaining most factory sensors and key systems.

This ECU is suited to B16 and B18 engines and is ideal for performance street and track builds. It delivers reliable tuning control and motorsport features while maintaining factory integration.

Why Choose a Plug-In ECU

• No wiring modifications required
• Retains most factory sensors and systems
• Faster installation compared to wire-in ECUs
• Ideal for street and performance builds

Supported Vehicles

• Honda Civic 1992 to 1995
• Honda Integra 1992 to 1995
• Honda Accord 1990 to 1995
• Honda Prelude 1990 to 1995
• Honda Del Sol 1993 to 1995
• OBD1 platforms with B16 and B18 engines

Key Features

• Direct plug-in ECU with factory fitment
• Up to 6D fuel and ignition mapping
• Sequential fuel injection
• Closed loop cam control
• 5D boost control with multiple tables
• Motorsport features including antilag, launch and flat shift
• CAN bus support
• 512MB onboard logging memory
• QuickTune automated fuel tuning
• Individual cylinder fuel and ignition correction

Important Notes

• Manual transmission only
• No onboard MAP sensor
• Knock control not supported
• E-throttle requires modification
• Check connector matches before purchase

Communications

• USB tuning connection
• CAN bus support

Logging and Control

• 512MB logging memory
• Real time tuning via PCLink software
• Stats recording and diagnostics

I/O Expansion

• Additional analog inputs available
• Additional digital inputs available
• Auxiliary outputs available
• Temperature inputs available
