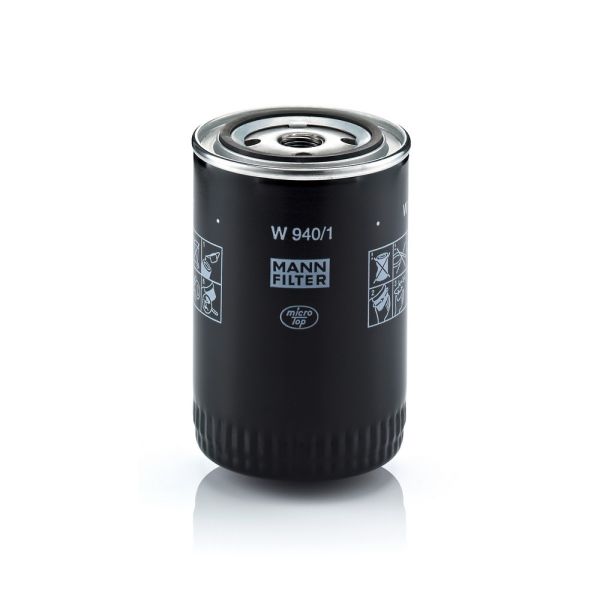

Mann W940/1 Oil Filter
Description
More and more performance, less and less consumption - in order to meet the high demands placed on modern engines, automobile manufacturers demand the absolute highest levels of performance from the engine components used. The oil circuit is of central importance here, as only clean engine oil can permanently ensure consistent engine performance. If the circulating oil is not permanently freed of impurities and combustion residues, protection from wear is no longer guaranteed. In the worst case, this may even damage the engine.
If you want to play it safe when choosing an oil filter, choose MANN-FILTER. They are designed for modern high-performance oils and can stand up to even the most demanding technical challenges. As the application areas of oil filters and the demands placed on them vary, MANN-FILTER oil filters are available in different designs.
Spin-On Oil Filter
By choosing MANN-FILTER spin-on oil filters, you get first-class quality and problem-free handling. The housing and filter element of the spin-on filter form a perfectly coordinated unit, which is fully replaced during maintenance.
MANN-FILTER's extensive technical expertise becomes particularly evident when you see the special features included with each filter type:
Return stop valve: ensures that the filter and oil channels do not empty when the engine is switched off and that oil is readily available when the engine is started.
Bypass valve: ensures that oil is available when the engine is cold started or when the service interval has been significantly exceeded and the oil filter is very dirty.
Release devices: enable quick and easy removal of the spin-on oil filter.
Cartridge Filter Elements
MANN-FILTER high performance filter elements have been specially developed for use in modern engines. Thanks to outstanding dirt holding capacity, high material resistance and a filter fineness perfectly matched to the relevant vehicle model, our filter inserts can cope with intensive use and deliver superb results.
The most modern filter media prolong service intervals and will continue to meet the technical requirements of high-performance engines in future.
Through the integration of additional functions or features, the cost effectiveness and range of functions of the filter elements can be increased further, e.g. by using a non-return membrane: the membrane retains the engine oil in the oil module as soon as the engine stops. Compared with a conventional return stop valve installed in the housing, the membrane solution offers an even faster and thus optimised oil supply when starting the engine.
In addition to the functional advantages, MANN-FILTER filter elements also impress through being environmentally friendly and conserving resources: as the filter housing does not require replacement for the life of the product, the only waste that arises during maintenance is the incinerable filter element, which is made of materials that are easy to dispose of.
Compatibility
FERRARI
208/308
1975 - 1980 Petrol Engine 308 GTB Coupe 188KW
1977 - 1980 Petrol Engine 308 GTS Coupe 188KW
1982 - 1985 Petrol Engine 308 GTB Qv (XW) Coupe 177KW
1982 - 1985 Petrol Engine 308 GTS Qv (XV) Coupe 177KW
400 i
1979 - 1985 Petrol Engine 4.8 Coupe 232KW
MONDIAL
1980 - 1983 Petrol Engine 8 Coupe 158KW
1982 - 1987 Petrol Engine 8 Quattrovalvole Coupe 177KW
1984 - 1987 Petrol Engine 8 Quattrovalvole Convertible 177KW
1985 - 1988 Petrol Engine 3.2 Quattrovalvole Coupe 199KW
1985 - 1988 Petrol Engine 3.2 Quattrovalvole Convertible 199KW
328 GTB
1985 - 1989 Petrol Engine 3.2 Coupe 199KW
328 GTS
1985 - 1989 Petrol Engine 3.2 Targa 199KW
DINO GT
1969 - 1969 Petrol Engine 206 GT 206/246 Coupe 132KW
1969 - 1973 Petrol Engine 246 GT 206/246 Coupe 143KW
DINO GTS
1972 - 1973 Petrol Engine 246 GTS 206/246 Convertible 143KW
365 GTB/4 DAYTONA
1969 - 1974 Petrol Engine 4.4 Coupe 259KW
365 GTS/4 DAYTONA
1971 - 1974 Petrol Engine 4.4 Convertible 259KW
412 i
1985 - 1988 Petrol Engine 4.9 Coupe 250KW
365 GT 2+2
1967 - 1971 Petrol Engine 4.4 Coupe 235KW
512 BB
1976 - 1981 Petrol Engine 4.9 Coupe 250KW
1981 - 1984 Petrol Engine i 4.9 Coupe 237KW
DINO GT4
1975 - 1980 Petrol Engine 208 208/308 Coupe 125KW
1974 - 1980 Petrol Engine 308 208/308 Coupe 188KW
FIAT
DINO
1969 - 1972 Petrol Engine 2.4 135 Coupe 132KW
FORD AUSTRALIA
EXPLORER
1996 - 2001 Petrol Engine 4.0 (UN, UP, UQ, US) U_ SUV 152KW
LANCIA
FULVIA
1968 - 1975 Petrol Engine 1.3 (818.630, 818.650) 818_ Coupe 65KW
1969 - 1970 Petrol Engine 1.3 (818) 818_ Sedan 70KW
1970 - 1972 Petrol Engine 1.3 (818) 818_ Sedan 62KW
1967 - 1969 Petrol Engine 1.3 (818) 818_ Coupe 70KW
1967 - 1969 Petrol Engine 1.3 (818) 818_ Coupe 74KW
1968 - 1970 Petrol Engine 1.3 (818) 818_ Coupe 76KW
1970 - 1976 Petrol Engine 1.3 (818) 818_ Coupe 66KW
TOYOTA
LAND CRUISER
1975 - 1982 Petrol Engine 4.2 (FJ40, FJ45, FJ55, FJ40V, FJ45V, FJ55V) _J4_,_J5_ Closed Off-Road Vehicle 101KW
1974 - 1984 Petrol Engine 4.2 4WD (FJ45_, FJ45R, FJ40_, FJ40R) _J4_ Open Off-Road Vehicle 101KW
VOLVO
164
1972 - 1974 Petrol Engine 2.9 164 Sedan 118KW
1968 - 1973 Petrol Engine 2.9 E 164 Sedan 96KW
Specifications
- Filter Type:
Spin-on Filter
- EU General Product Safety Regulation (GPSR):
IEC 60417-6183 spec. mech. knowl. required
- Article Number of the recommended special tool:
LS 9
- Height [mm]:
142
- Thread Size:
3/4-16 UNF
- Outer Diameter [mm]:
93
- Supplementary Article/Supplementary Info 2:
with one anti-return valve
- Bypass Valve Opening Pressure [bar]:
1,2
- Seal Ring Inner Diameter [mm]:
62
- Seal Ring Outer Diameter [mm]:
71
Cross Reference
-
ACDelco
HC 2, PF 1, PF 1 HC, PF 2, PF 42, SC, SP, SX, X 150, X 21, X 4017 E, X 4018 E, X 61
-
A.L. FILTER
AL-1, AL-483
-
A.L. Group
AL-1, AL-483
-
AIR REFINER
PL-697
-
ALCO FILTER
SP-801, SP-826, SP-866
-
ALLIS-CHALMERS
0230578-1, 0232421-1, 0232578-4, 0234900-8, 0237000-5, 0251381-0, 132578, 230578, 232241, 232421, 232578, 234900, 237000, 251178, 4511629, 4511629-0, 6451162-9, 70237000, 7209396-3, 72370000
-
AGCO
155618-A, 72093963
-
ALFA ROMEO
119003206101, 370640000, 451700000
-
AMERICANMOTORS(FORD)
315 3230, 889 0499
-
ARMAFILT
O-93/140.0, O-93/180.0
-
AVS AUTOPARTS
Z297
-
BALDWIN
B1, B2, B253, B297, BT251, BT266, BT524, V1-F, V2-F
-
BECK/ARNLEY
418141
-
BOMAG
MAT0906520
-
BOSCH
0 451 104 001, 0 451 104 063, 0 451 203 001, 0 451 203 001-850, 0 451 203 153, 0 451 203 176, 0 451 302 182, 0 986 452 002, 0 986 4B7 021, 0 986 627 641, 0451103325, 1 986 452 001, 1 986 452 002, 9 450 732 008, 9 451 103 610, 9 457 280 530, P2182, P3001, P4063
-
CASE IH
388 227, 388 227 R 1, 388 227 R 91, 918 266 R 91, 918 266 R 92, 918 266 R 93, 920 203, 920 203 C 1, 998 439 R 91, A-146696, A-33487, A-37189, A-58758, D-29869, D-29891, D-29896, G-45210, G-45306, G-54306
-
CHAMPION
C 105
-
CHRYSLER
1228022, 1739617, 1739618, 1739619, 1851658, 2205517, 2458807, 2458957, 2532744, 2536186, 2555929, 2647019, 2806201, 2951957, 5042621, 5221272, 5221313, 6160448, 75061409, 75061411, 990937
-
ARMATRAC
2654403
-
ASAS
SP 1416, SP 401, SP 416, SPC 101
-
CATERPILLAR
069-4229, 069-4229E, 3I-1165, 3I-1168, 9Y-4449, 9Y-4458, 9Y-4479
-
CARELLO
41.170.000, 41.385.000, 41.416.000
-
CHAMP
LS 23, PH 299, PH 8 A
-
CITROËN
5406 242, 5457 752 5, 5457 752 S
-
CLEAN FILTERS
DO 225, DO 225/D, DO 298
-
COOPERS
AZL 008, AZL 028, AZL 030, AZL 109, Z 43, Z 45, Z 47, Z 877, Z 89
-
CoopersFiaam
FT4403, FT4403A, FT4702, FT4790CPF
-
CROSLAND FILTERS
2226, 439, 532, 616, 637
-
DAF
0494133, 0498401, 494133, 498401
-
DAIHATSU
1560B-41010-000
-
DELPHI
FX0001, FX0021, FX0024, FX0070
-
DEMAG
515 027 00
-
DIGÖMA
DGM/O 940
-
DITCH WITCH
155-955
-
DONALDSON
LFP550299, P169071, P550008, P550017, P550299, P779181
-
DORMAN
DA 111
-
DR!VE+
DP1110.11.0356
-
DT Spare Parts
11.13102
-
ELOFIC
EXL-209, EXL-211, EXL-279
-
DONIT FILTER
43.10.10, 43.10.88
-
EUROREPAR
1637766480, 1682277480
-
FIAT
1354828, 222 0425, 4170601, 592602, 62703506, 70237000, 72370000, 74511629, 82220425, 82232108, 82241613, 82255076, 82300672
-
FOMOCO
09AE 6714 AA, 14-98028, 18-29195, 59LK 6714 A, A710 X 6714 CA, B7A 6714 A, B7A 6731 AB, B8A 6731 A, B9AE 6714 A2, B9AE 6714 A6, B9AE 6714 B, C4AE 6714 A, CC11AZ 6731 A, CIAZ 6731 A, CIAZ 6731 AP, COAE 6714 A, COAE 6731 A, COLE 6714 A, D2NN 6714 A, D2NN 6714 C, D3HZ 6731 B, D8PJ 6714 AA, D9AE 6714 AA, D9AZ 6731 A, D9NN 6714 AA, D9NN 6714EA, DONN 6714 A, DONN 6714 B, E9AE 6714 B, ECG 6714 A, ECZ 6714 C, EDC 6714 A, EDG 6714 C, MHK 6714 A, R1 A
-
FLEETGUARD
HF6351, LF3313, LF3324, LF3401, LF3466, LF3487, LF3530, LF551, LF551A, LF697, LF787
-
FORD
05004 776, 1213 439, 1614 735, 1794 446, 1827 183, 1829 195, 5000 513, 5004 776, 5016 960, BCNN 6714 B, C 1 AZ 6731 A, D 2 NN 6714 C, D0NN 6714 B, E9AE 6714 B, XM3J-6731-FA
-
FRAM
HP1, PH19, PH2802, PH2803, PH28032, PH2806, PH2821, PH2823, PH2824, PH2996, PH2996A, PH3381, PH8, PH80D, PH8A, PH8A-S, PH977, PH977A
-
FILMAR
SO8105, SO8106, SO8273, SO8307
-
FIAT-HITACHI
4278859
-
FIL FILTER
ZP 502, ZP 540
-
FRAD
13.28.06/110, 13.28.11/110
-
GENERAL MOTORS
5574459, 5575840, 6435675, 6436749, 6439681, 7984303, 7984844, 93156247, 9975267
-
GEHL
079756, 79756
-
GIF
GL 553, GL 553 Z, GL 682
-
GUD FILTERS
Z 351, Z 45, Z 95
-
HENGST FILTER
H17W02, H19W03
-
HITACHI
4278859
-
HYSTER
169741, 195852, 259264, 297865
-
INGERSOLL-RAND
40210, 6458 B1, 9167 7369, 92879899
-
HIFI FILTER
SO 242, SO 580
-
IVECO
193 0328, 193 0329
-
JUNGHEINRICH
501 1088 9
-
KIOTI
E7312-32431
-
KNECHT
AW 19, FO 371
-
KOLBENSCHMIDT
052-OS, 052/3-OS, 155-OS, 50 013 052, 50 013 052/3, 50 013 155
-
KOMATSU
203-01-K1360
-
KUBOTA
70000-3200-1
-
LEYLAND
AMN 2007, BFF 6535, ERC 1444
-
LINDE
2654403
-
LINDNER
62654407
-
LUBERFINER
L 334, LFP 1, LFP 19, LFP 2292, PH 299, PH 4403, PH 8A, PH299-1
-
JOHN DEERE
AE28914, TY9425, TY9425E
-
LUCAS ELECTRICAL
5537, 6442, EDL 966
-
MAHLE
OC 1630, OC 29, OC 67, OC 706, OC 706OF, OC 707OF
-
MASSEY FERGUSON
1 034 065, 1034065M91, 1034065M92, 2 654 342, 2 654 347, 2 654 400, 2 654 401, 244427M1, 26 540 347, 26 543 436, 836 064, 881 304, 881 446, 881304M91, 881446M91, 993 021, 993 029
-
MAGNETI MARELLI
152071758744, 71758744
-
MANITOU
1560041010, G 1 829 195
-
MERCURY
60 565
-
MERLO
P00633
-
MFILTER
TF 6542
-
M-Filter
MH 301, MH 378, MO 1117
-
MECAFILTER
ELH 4037, ELHA 4037
-
MISFAT
Z102, Z164A, Z297
-
MONARK
30 758 063
-
MOTAQUIP
VFL 109, VFL 135, VFL 249
-
Motorcraft
BFL 18, EFL 001, EFL 074, EFL 137, EFL 316, EFL 905, FL 1, FL 299
-
MULLER FILTER
FO65
-
O&K
800 4841
-
P.B.R.
BC-1001, BC-1043, BC-1074, BC-1189, BC-1336
-
PERKINS
2 654 342, 2 654 343, 2 654 347, 2 654 401, 2254347, 26 540 347
-
PUROLATOR
L 17582, L 30001, L 30119, L 37031, L 37225, L 38257, L 38258, L 39001, L 40017, LI 2687, LI 3626, LI 3855, MF 45700 A, PC 210, PER 1, PER 1 A, PER 83, PIL 30, PIL 38
-
POCLAIN
Q 09505-58
-
PURFLUX
LS154, LS154A, LS165, LS186, LS453A, LS454, LS494, LS582, LS774
-
QUINTON HAZELL
QFL0026, QFL0051, QFL0106, QFL0165, QOF 5400
-
RACOR
PFL5683
-
RENAULT TRUCKS
00 03 141 914, 00 03 563 591, 00 75 065 702, 50 00 686 625
-
PZL Filters
PP-82, PP-87
-
ROSTSELMASH
RSM 1941OMH
-
RYCO
Z139, Z9
-
SAKURA Automotive
C-1122XPL, C-1803, C-1914, C-5102, C1834
-
SENNEBOGEN
37520-39250
-
SF FILTER
SP 4330, SP 4384, SPH 9685
-
SOFIMA
S 1561 R, S 3181 R, S 3297 R, S 5600 R
-
SPERRY NEW HOLLAND
85800083
-
TALBOT
00 012 280 22, 00 050 426 21, 00 052 212 72, 00 052 213 13, 00 061 604 48, 00 750 614 09, 00 750 614 11, 00 750 650 49, 1 228 022, 5 042 621, 5 221 272, 5 221 313, 6 160 448, 75 061 409, 75 061 411, 75 065 049
-
SAURER
154 1281 002
-
SCT - MANNOL
SM 133, SM 5753
-
TECNECO FILTERS
OL 240, OL 49
-
TECNOCAR
B1, R405, R49, R65, R80
-
TEREX
0707 0000 09
-
TJ FILTERS
FB 2062, FB 2068, FB 5400, FB 5401
-
TEHO
OK 14, OK 85
-
TRP
1500821, 1500875, 1534659
-
UFI
23.102.00, 23.107.00, 23.156.01, 23.181.00, 23.297.00
-
UNIPART
GFE 116, GFE 151, GFE 168, GFE 175, GFE 181, GFE 187
-
VOLVO
1112637, 430143, 430143-8, 4804651, 6612598, 6612598-0, 795097-5, 835779-0
-
UNICO FILTER
LI 9144/1, LI 9170/5
-
VALEO
586015, 586187
-
WAUKESHA
111346
-
WEIDEMANN
100 000 0259
-
WESFIL
WZ9, WZ9NM
-
WIX FILTERS
51515, 51525, 51773, WL7095, WL7096, WL7116
-
WOODGATE
WGL 787, WGL3313, WGL697, WGL940
-
YANMAR
194464-48310
