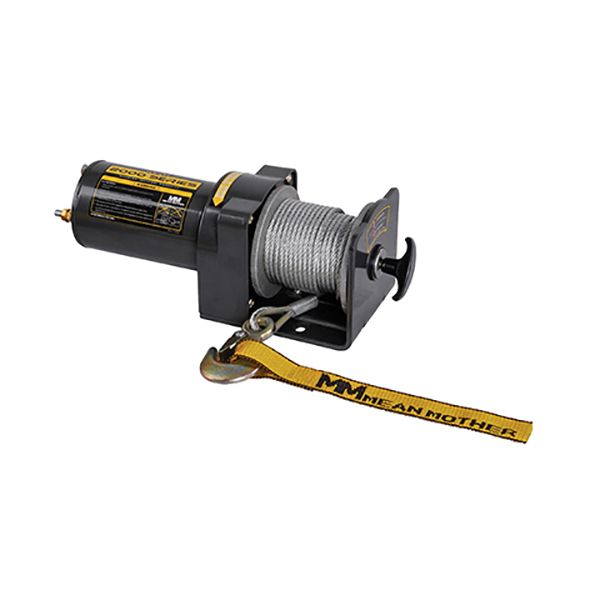

Mean Mother EW2000 Peak Winch 2000lb
Description
Mean Mother ATV EW2000 winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles. Each model has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).
- Free spool function
- Steel bushings
- Steel gears
- Forward and reverse operation
Specifications
Specifications | 2000lb (907kg) |
Gear ratio | 153:01:00 |
Gear transmission | 1 stage planetary |
Clutch | Spline joint clutch |
Motor type | Permanent magnet |
Motor | 1.5hp (1kw) |
Control | Hand control, 1.12m lead |
Braking | Self locking brake |
Drum size | 32mm x 71mm (1.26" x 2.8") |
Mounting bolt pattern | 48mm x 74mm (1.89" x 2.91") |
Battery power cables | 2 x 6mm² (10 AWG) x 1620mm (63.7") |
Motor power cables | 2 x 6mm² (10 AWG) x 1120mm (44.1") |
Finish | Powder coating |
Overall dimensions (L x W x H) | 320mm x 105mm x 110.5mm (12.6" x 4.13" x 4.35") |
Voltage | 12 volt |
Cable | Galvanised aircraft 4mm x 15.2m (5/32" x 50') |
Clevis hook | 1/4" |
Nett weight | 6.6kg (14.6lb) |
