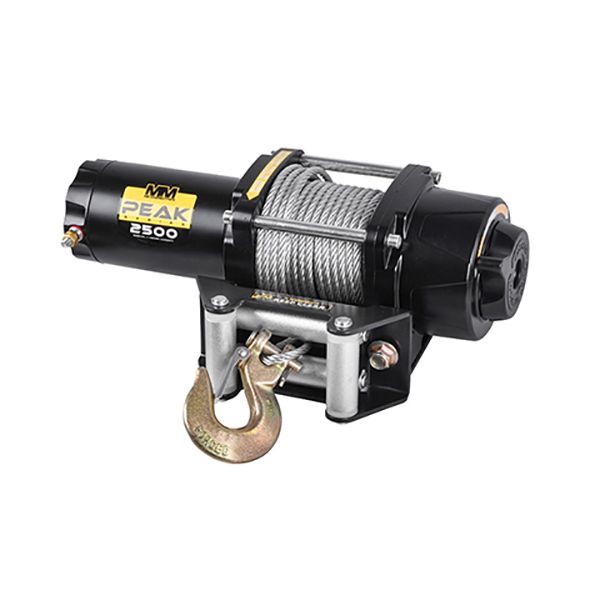

Mean Mother EW2500 Peak Winch 2500lb
Special Price
$441.90
Regular Price
$449.00
You Save
2%
off RRP
Description
Description
Mean Mother ATV 2500lb winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles. The 2500lb and 3500lb models are supplied with a universal mounting plate for easy installation. Each model has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).
- Free spool function
- Steel bushings
- Steel gears
- Forward and reverse operation
General Information
| Specifications | 2500lb (1135kg) |
| Gear ratio | 242:01:00 |
| Gear transmission | 2 stage planetary |
| Clutch | Turn 90° by handle |
| Motor type | Permanent magnet |
| Motor | 3hp (2.2kw) |
| Control | Handle bar mountable switch, 2.4m lead |
| Braking | Self locking brake |
| Drum size | 50mm x 80mm (2" x 3.15") |
| Mounting bolt pattern | 124mm x 76mm (4.88" x 3") |
| Battery power cables | 2 x 8mm² (8 AWG) x 2350mm (92.5") |
| Motor power cables | 1 x 8mm² (8 AWG) x 600mm (23.6") & 1 x 8mm² (8 AWG) x 450mm (17.7") |
| Finish | Powder coating |
| Overall dimensions (L x W x H) | 333.5mm x 116mm x 114mm (13.13" x 4.57"x 4.5") |
| Voltage | 12 volt |
| Cable | Galvanised aircraft 4.76mm x 12m (3/16" x 39") |
| Clevis hook | 1/4" |
| Nett weight | 11.4kg (25lb) |
1st Layer Performance
| Line Pull | Line Speed | Motor Amp Draw | Current |
| 0lbs (0kg) | 19.7fpm (6.0mpm) | 31 | 12 volt |
| 1000lbs (454kg) | 18.4fpm (5.6mpm) | 105 | 12 volt |
| 2000lbs (907kg) | 14.8fpm (4.5mpm) | 145 | 12 volt |
| 2500lbs (1135kg) | 13.5fpm (4.1mpm) | 195 | 12 volt |
Line Pull and Cable Capacity
| Cable Layer | Rated Line Pull | Cable Capacity |
| 1 | 2500lbs (1135kg) | 9.2ft (2.8m) |
| 2 | 2130lbs (967kg) | 20.3ft (6.2m) |
| 3 | 1855lbs (842kg) | 33.1ft (10.1m) |
| 4 | 1643lbs (746kg) | 39.4ft (12.0m) |
