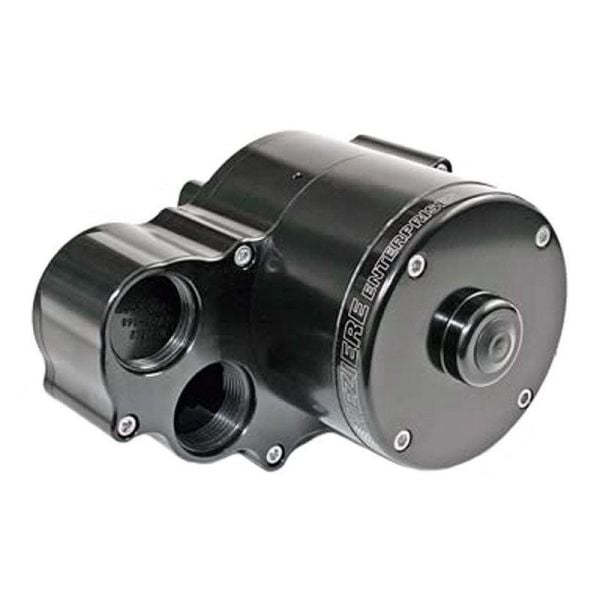

American made with quality far superior to any other performance aftermarket company, Meziere's build the water pumps with pride right here in the USA. Don't be mislead by inflated flow numbers and competitors' outlandish claims. the 300 series pumps move more water and produce more pressure than any other electric pump on the market. That means better protection for your high horsepower, high demand engine!
Radiator mounted pumps fill many different needs. When an engine mounted pump is not available or space limits the ability to use one, the radiator mounted pumps offer a creative solution. the pumps can be configured to use almost any size line. All of the pumps are built for cooling systems and can operate properly in a harsh environment.
Radiator mounted design can be added to most aluminium radiators
Suitable for street or drag strip use - 3000 hour life expectancy
Show quality black anodised finish
Standard motor provides 55 gallons per minute free flow rating
Radiator mount weld plate included
Dual outlet ports accept any of the #16AN style fittings
Stainless steel large diameter main shaft with high performance ceramic seal
#16AN style fittings available for #12AN, #16AN, 1" or 1-1/4" slip hose.
Technical Specifications :
Finishing The System: This pump is supplied complete with hardware but without the fittings. The fittings need to be ordered according to the type and size of the desired hose connection.
Amperage draw: Under normal use the pump will draw 11-12 amps.
Overall Height Dimension: The standard pump is 5.20" long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 6.2 lbs.
16 volt systems: This pump is compatible with 16 volt systems. Careshould be taken not to run the pump while the system is charging.
