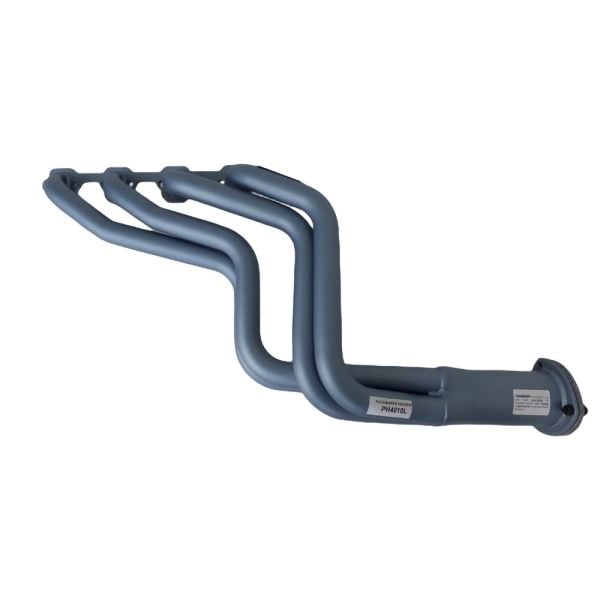

Mustang 1964-1969 260-289-302 Windsor Manual & Automatic TUNED design

Important Notes:

• Will fit with XD to XF integrated power steering RH drive
• Will fit LH drive with original steering box
• Will fit 4 speed Ford top loader gear box
• Will fit C4 automatic
• Will fit with Toyota Supra 5 speed gear box
• Will not fit with LH drive mechanical clutch
• Will fit LH drive with ram type power steering with PBR4010 (More information in Additional Information)
• Will not fit with GT40 Heads as fitted to 302W AU II due to Spark Plug angle
• Will not fit FMX Auto

Additional Information:

• Power Steering Bracket (PBR4010) is to assist with the fitment of Pacemaker PH4010's where steering ram needs to be lowered on Left Hand Side
• Order Part No.: PBR4010

Product Specification:

• Part No.: PH 4010
• Power Steering: No
• Gasket: DSF 3
• Air Con: No
• Primary Pipe: 1½" (38mm)
• Oxygen Sensor: N/A
• Secondary Pipe: -
• E.G.R: N/A
• Outlet: 3" (76mm)
• Y Branch: N/A
• Fitting Time: 3 Hrs
