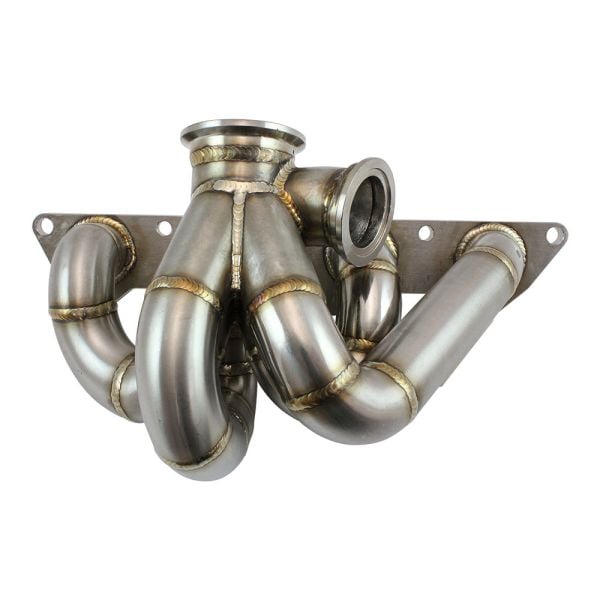

Model - Mitsubishi Evolution 4-9 with 4G63 Engine stainless steel turbo manifold.
Manifold Runner Size - 1-1/4"
Turbo Collector Flange - V-Band (Boosted AF8080-1016 Flange).
Mounting Location - Low Mount (use with AF8200-1100 Dump Pipe)
Turbocharger Style - GT30/GT35 style (Boosted 4849 up to Boosted 6862 in V-Band flange).
Wastegate Flange - Single 44mm external wastegate.

Aeroflow Performance stainless steel turbo manifolds are a series of pipes that collect exiting exhaust gases which can be channeled into our merge collector which are perfectly matched to our Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge together at a point in the middle, pointing straight into the turbine. No pipes enter across each other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you're getting the best flow possible from our turbo manifold.

Aeroflow turbo manifolds are finished to the highest of standards, constructed from thick wall 3mm stainless steel with CNC Machined header and turbo flanges. Each flange is milled after welding to ensure precise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, and the position the wastegate sits in.

The Aeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegate sizes available.
