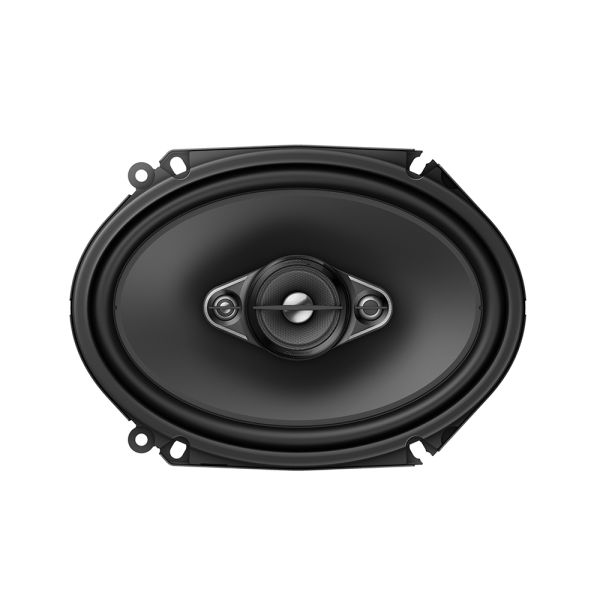

Pioneer’s next generation of TS-A series speakers offer Carbon & Mica reinforced IMPP cone. This combined with a new magnetic circuit and long symmetrical voice coil make both rich deep bass and low distortion possible.

Newly designed speaker adapters offer a wide range of installation options and help to ensure a well-controlled sound. A design change has been applied which also removes the lead wire connection from the speaker face, giving a new clean look and reduces the risk of shorts and signal noise.

IMPP Cone Construction

Carbon & Mica reinforced IMPP cone for deeper and richer bass response.

Pioneer’s Sound Concept “Open & Smooth”™

The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.

MAIN FEATURES

Size: 6 x 8" (145mm x 204mm) 4-Way
Max Music Power (Nominal): 350W MAX (80W Nom)
Frequency Response: 34Hz - 34kHz (-20dB)
Sensitivity: 88dB (±1.5dB)(1W/1m)
Impedance: 4Ω
Mounting Depth: 62mm
High Res Certified: No
Cut Out Dimensions: 133mm x 191mm
Surround Material Elastic: Polymer
Woofer Magnet Material: Y-30
Woofer Basket Material: Metal
Woofer Magnet Weight: 220g
Woofer Cone Material: IMPP Composite
Tweeter Type: PIEZOELECTRIC x 2
Tweeter Diaphragm Material: PET (t=75µm)
