“The Champion Has Returned”

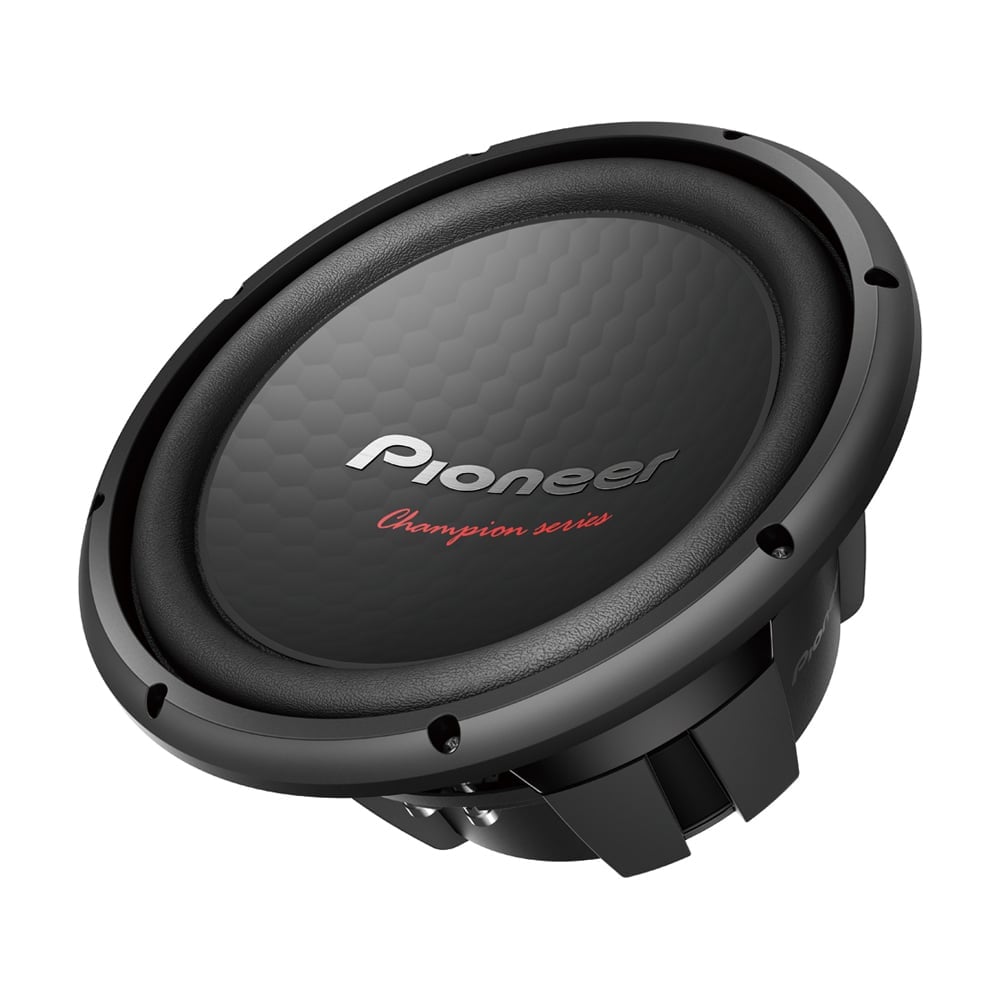

Pioneer’s latest “Champion” series sub-woofers are here. The TS-W312D4 is designed to take the “Champion” Series name to the next level with a range of improvements.

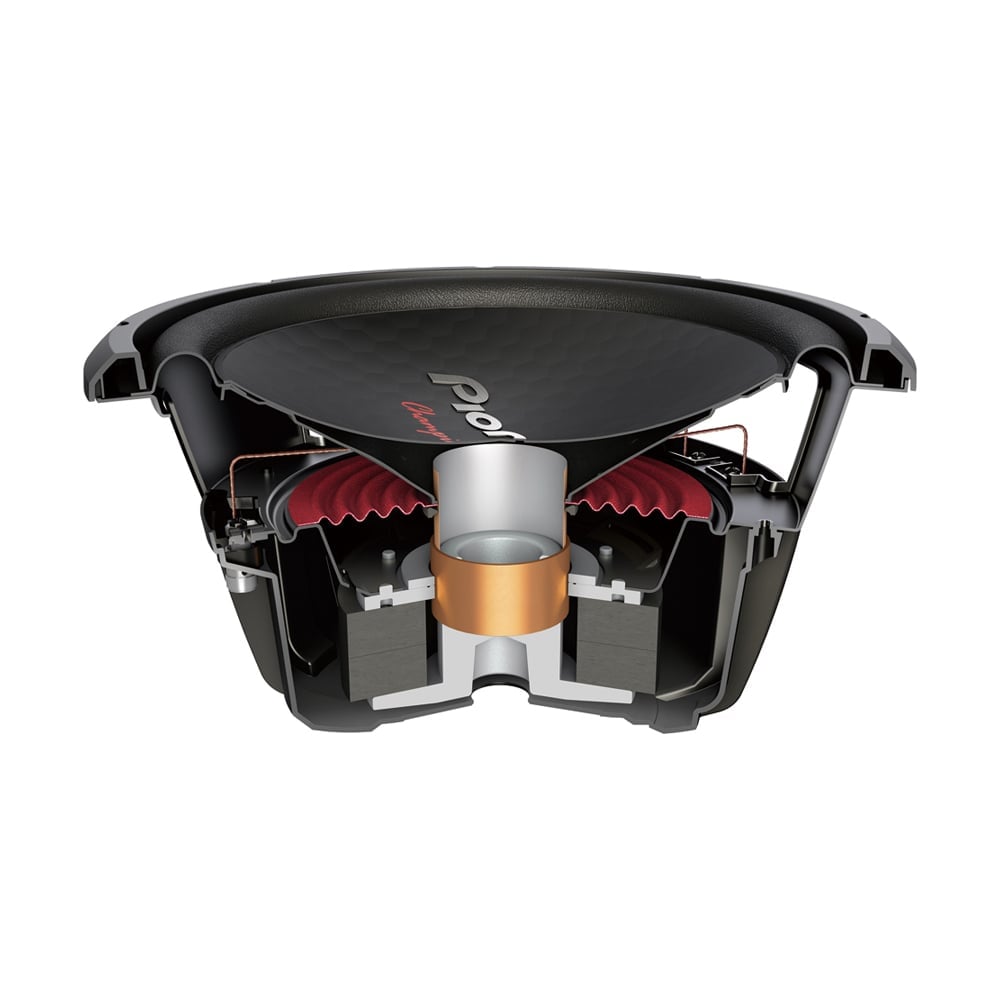

With a light weight/high rigidity cone design, dual layer hybrid surround, large powerful motor assembly and enclosed basket structure, the new “Champion” Series sub-woofers not only look good but will perform even better!

Match with Pioneer’s GM-D Series amplifiers for an impressive in car experience!

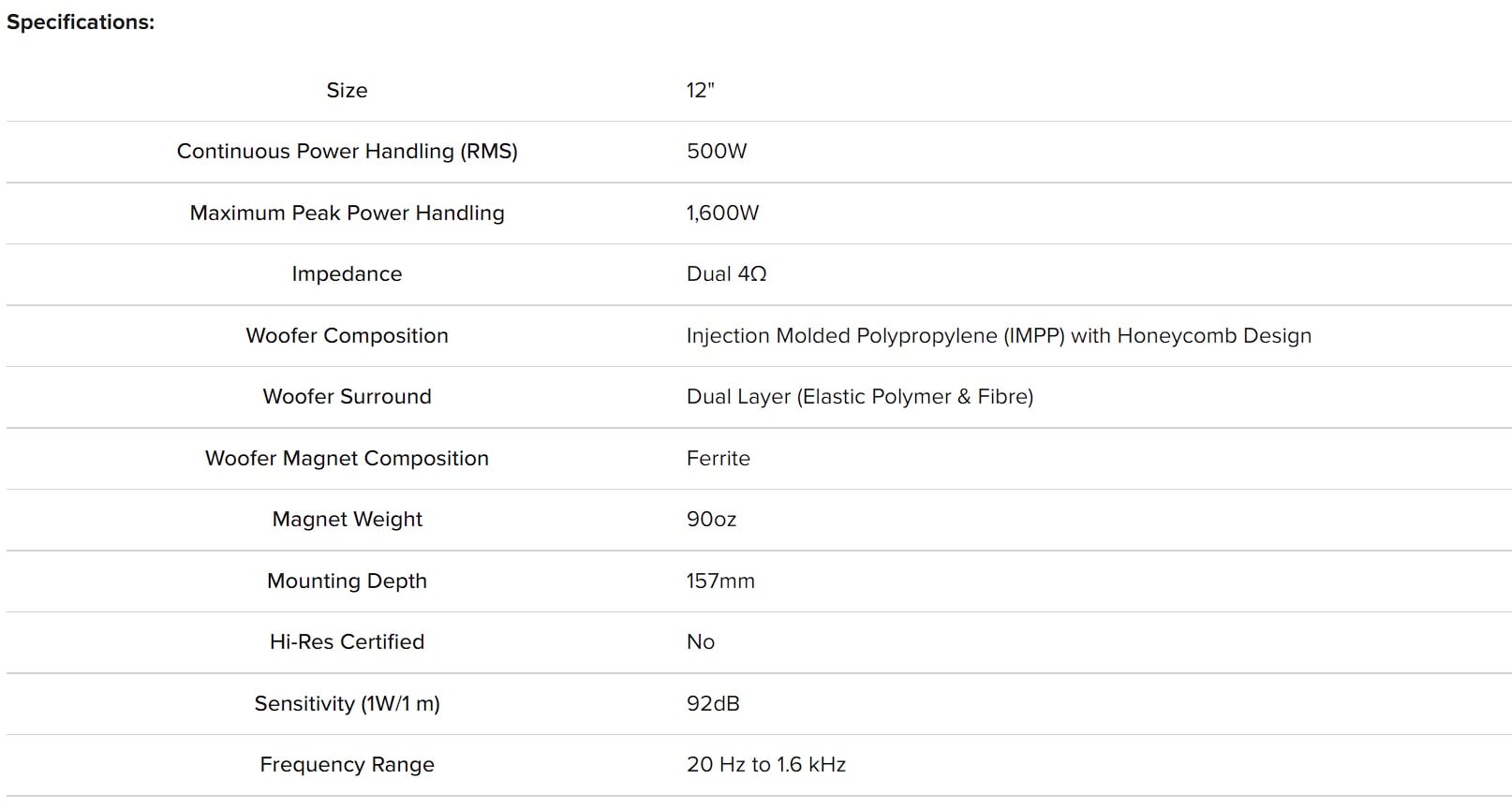

Features:

• 1,600w Max (500w Nom)
• High rigidity (IMPP) composite seamless cone construction with honeycomb design
• Dual layer (elastic polymer & fibre) surround for a highly durable design.
• Massive 90 oz double stacked magnet and long voice coil with aluminium bobbin for increased bass and improved heat-dispersion.

Combining a large rigid centre cap and lightweight high rigidity cone structure improves output performance and reduces loss. Improved dual layer (elastic polymer & fibre) hybrid surround provides a lighter and more durable surround than traditional rubber compounds.

Combining a double stacked 90oz magnet (26% bigger than our previous model and some of the heaviest in it’s class) with a longer voice coil design, the “Champion” Series sub-woofers are designed for high power handling and endurance!
