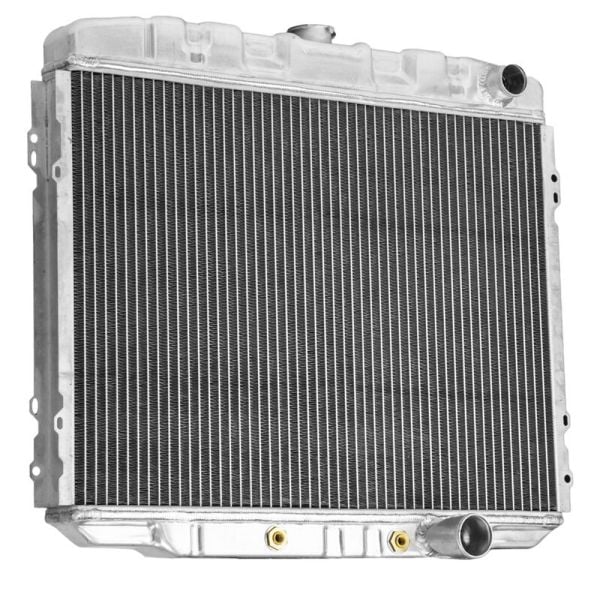

these direct upgraded replacements of the original ford falcon xw-xy / fairlane zc-zd 351 windsor radiators feature two large 1" tubes for high flow and maximum cooling. most brass copper radiators use 1/2" tubes so in comparison these radiators are equivalent to a 4 core radiator. these radiators are fitted with automatic transmission cooler as used in o/e vehicles.

• xr to xy with windsor with r/h inlet water pump
• za to zd with windsor with r/h inlet water pump
• accepts original shroud and retaining clips
• 351 style battery tray should be used to provide adequate clearance
• pferdm-077 suggested mounting kit
• oem factory style pressed tanks
• overall width: 640mm
• overall height: 570mm
• core width: 600mm
• core height: 440mm
