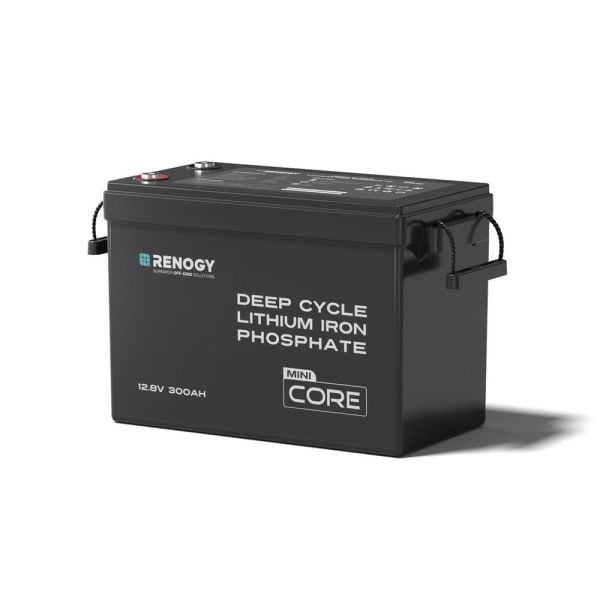

Renogy Core Mini 12.8V 300Ah LiFePO4 Battery w/Low-Temperature Protection RBT12300LFP-M

Part No.
RBT12300LFP-M

Renogy Core Mini 12.8V 300Ah LiFePO4 Battery w/Low-Temperature Protection RBT12300LFP-M

$1,261.99

We'll notify you if it becomes available.

Not sure if it Fits? Click "Parts Checker"

Parts Checker
Buy Now, Pay Later
4 payments of $315.50

Installation Available

Pickup

Add to Wish List
Renogy Core Mini 12.8V 300Ah LiFePO4 Battery w/Low-Temperature Protection RBT12300LFP-M

Renogy Core Mini 12.8V 300Ah LiFePO4 Battery w/Low-Temperature Protection RBT12300LFP-M

$1,261.99

Description

High Capacity. Light Weight. Mini Sized.

You won't find a lighter 12V 300Ah Lithium Battery anywhere. With its ultralightweight, compact design, and low-temperature cut-off, this battery is perfect for both travel and home use.

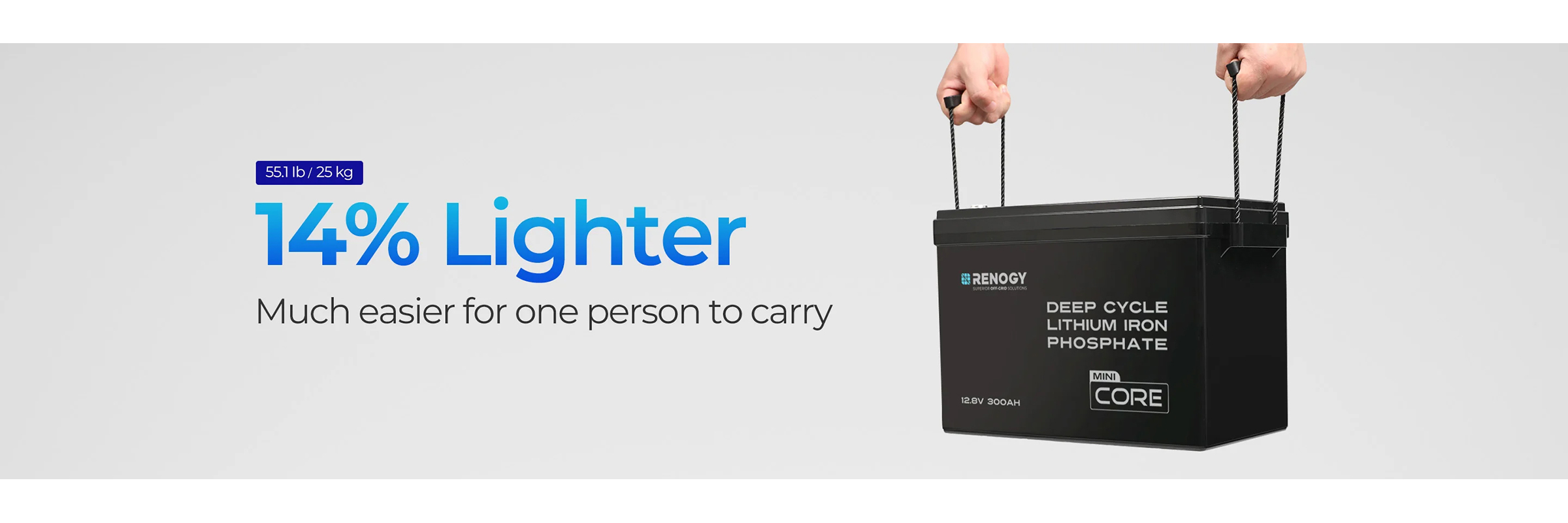

Lighter Than Ever, Easier to Carry.

At only 55.1 lb/25 kg, this battery is easy for one person to carry. That's 9 lb/4 kg lighter than its counterparts! Its lightweight, compact design makes handling and installation hassle-free.

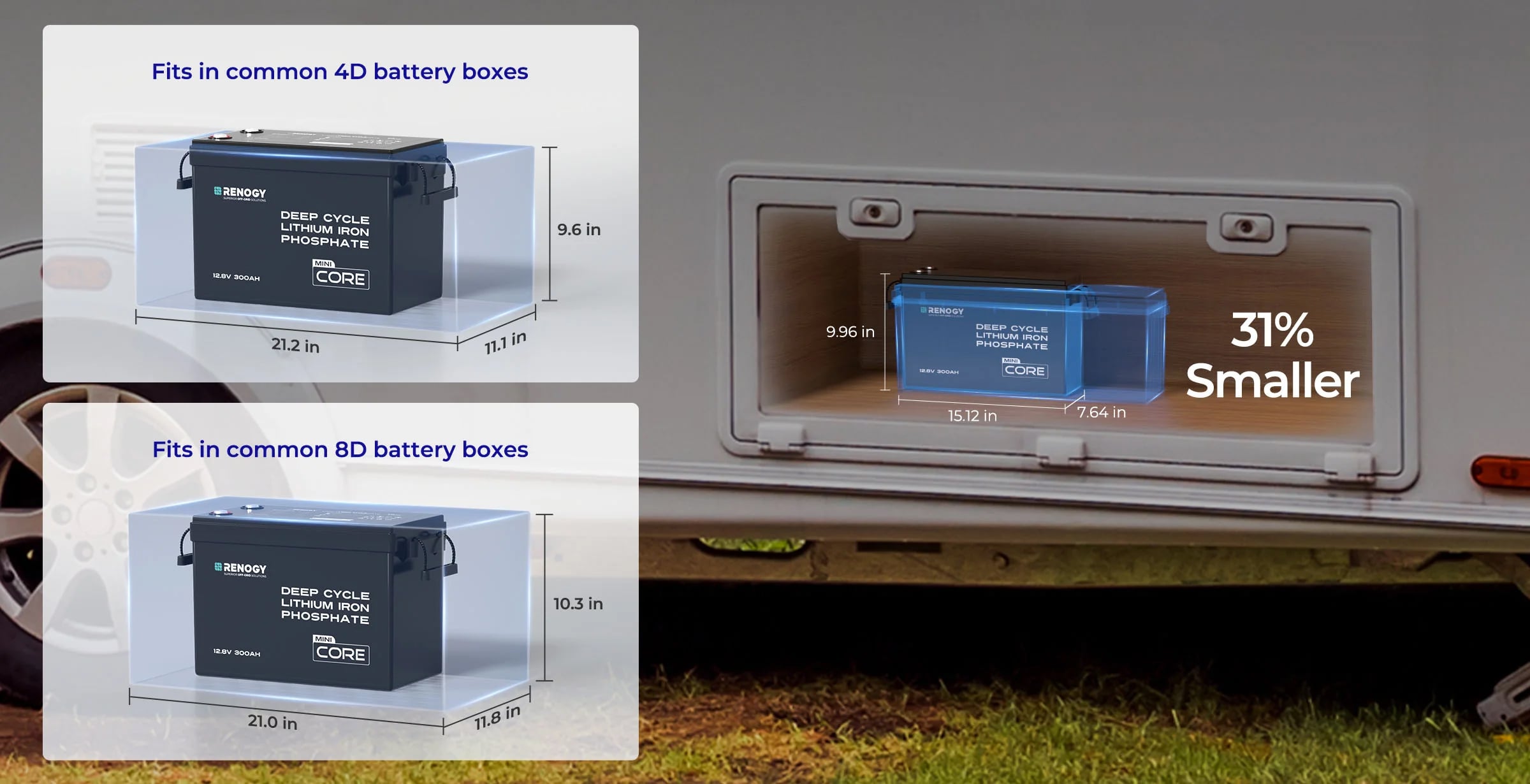

31% Smaller Than Its Counterparts

This battery's compact and sleek design saves space, provides more room for easier connections and maintenance. and fits in various battery boxes, including 8D and 4D sizes.

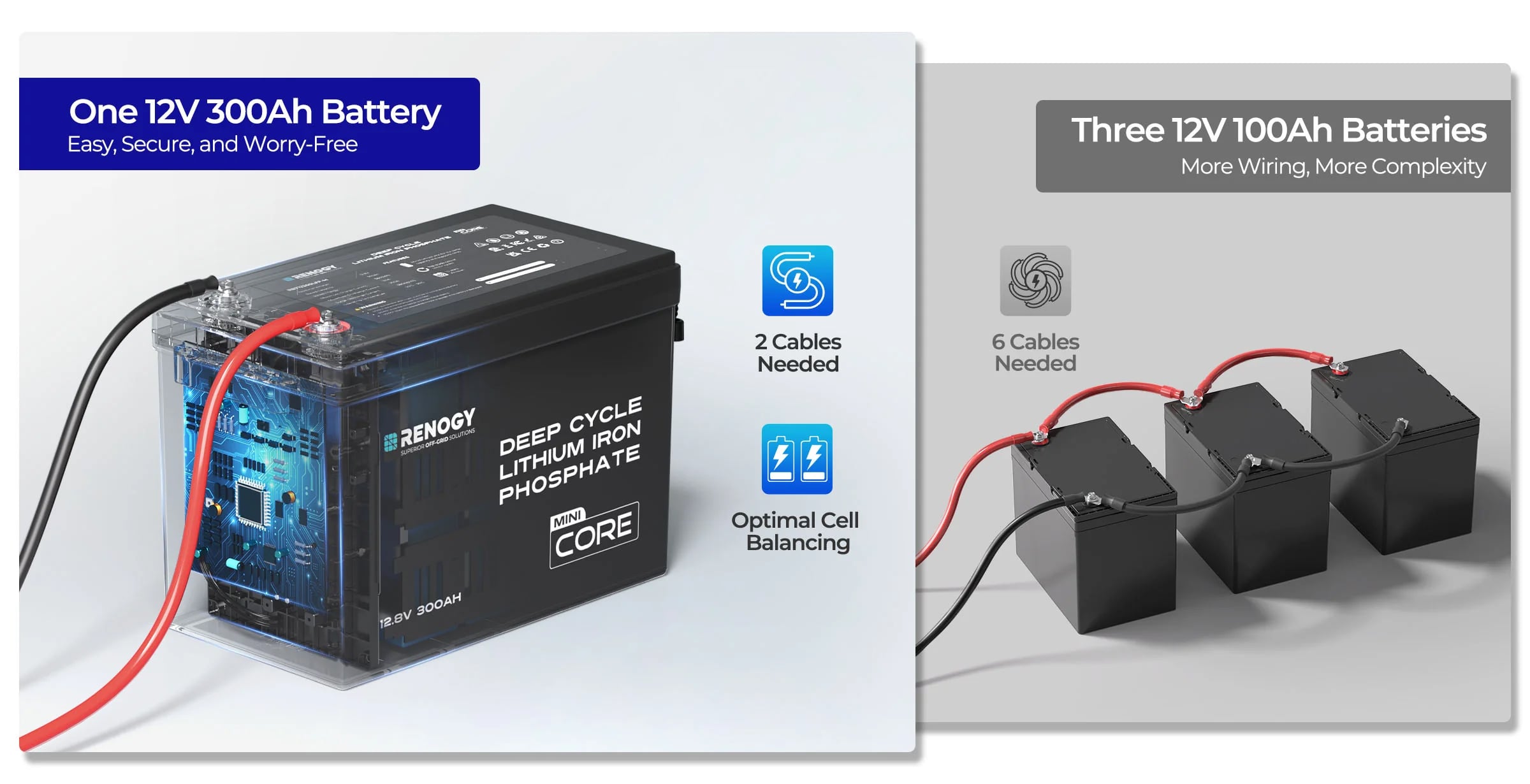

Simple. Powerful. Hassle-free.

One 12v 300Ah Battery is three times more powerful than the old three-battery setup. Two simple cable connections saves time, money, and stress. Plus, one battery eliminates cell imbalance issues.

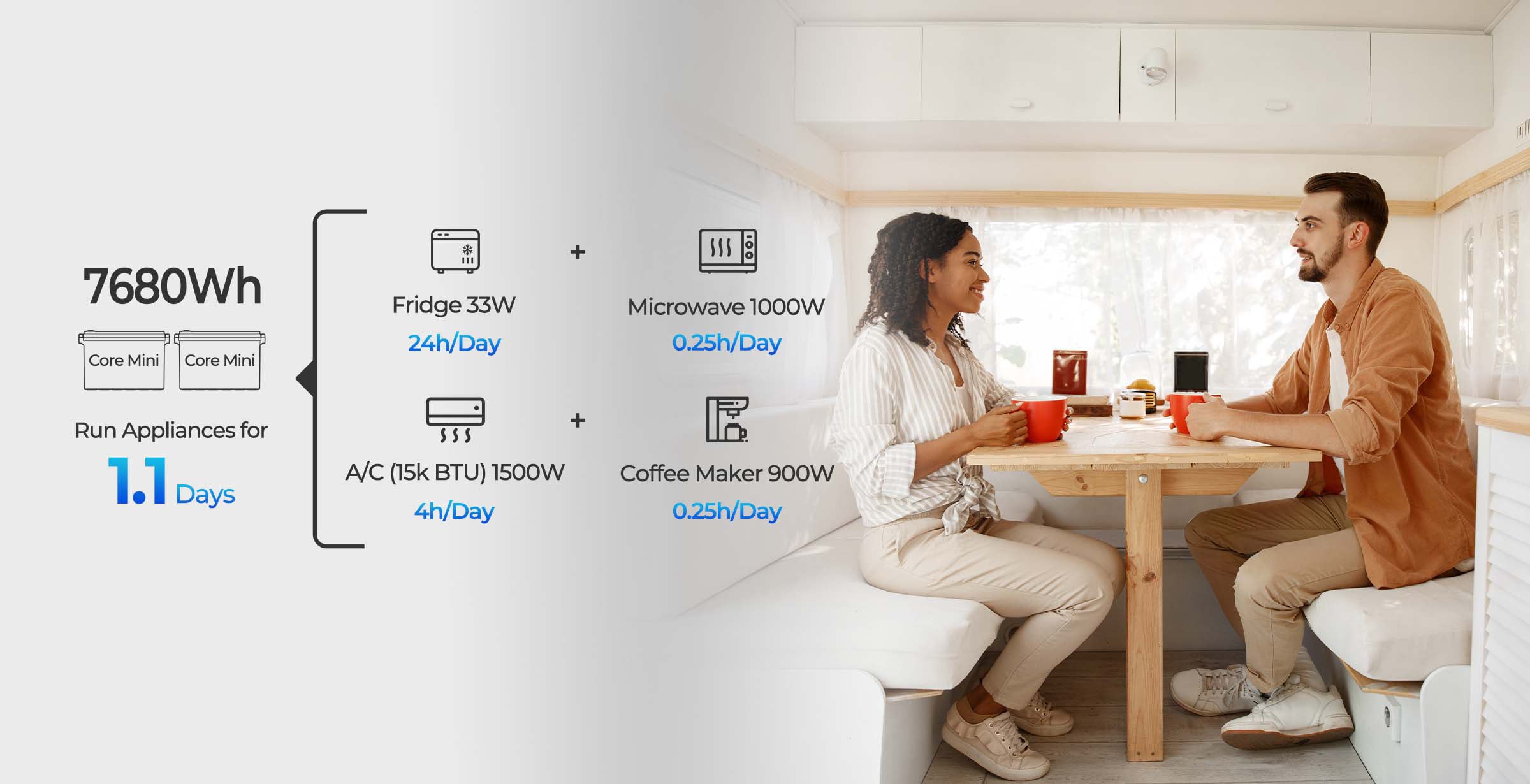

Power Your RV Adventure

Two batteries provides 7680Wh of power. That's enough to run your fridge, microwave, coffee maker, and A/C unit for 24hrs+

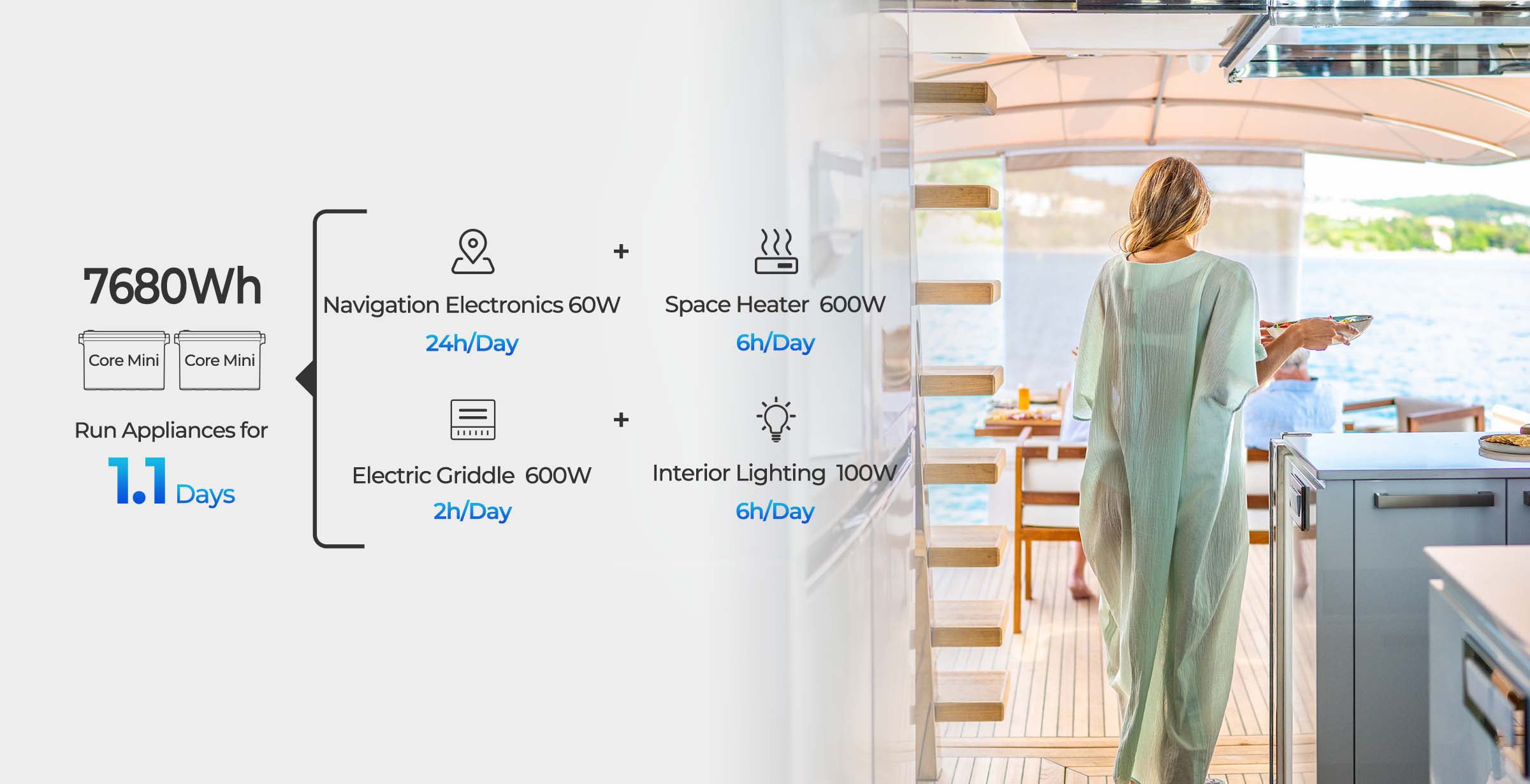

Power Your Marine Adventure

Two batteries provides 7680Wh of power. That's enough to run your navigation, heating, lighting, and onboard essentials for 24hrs+

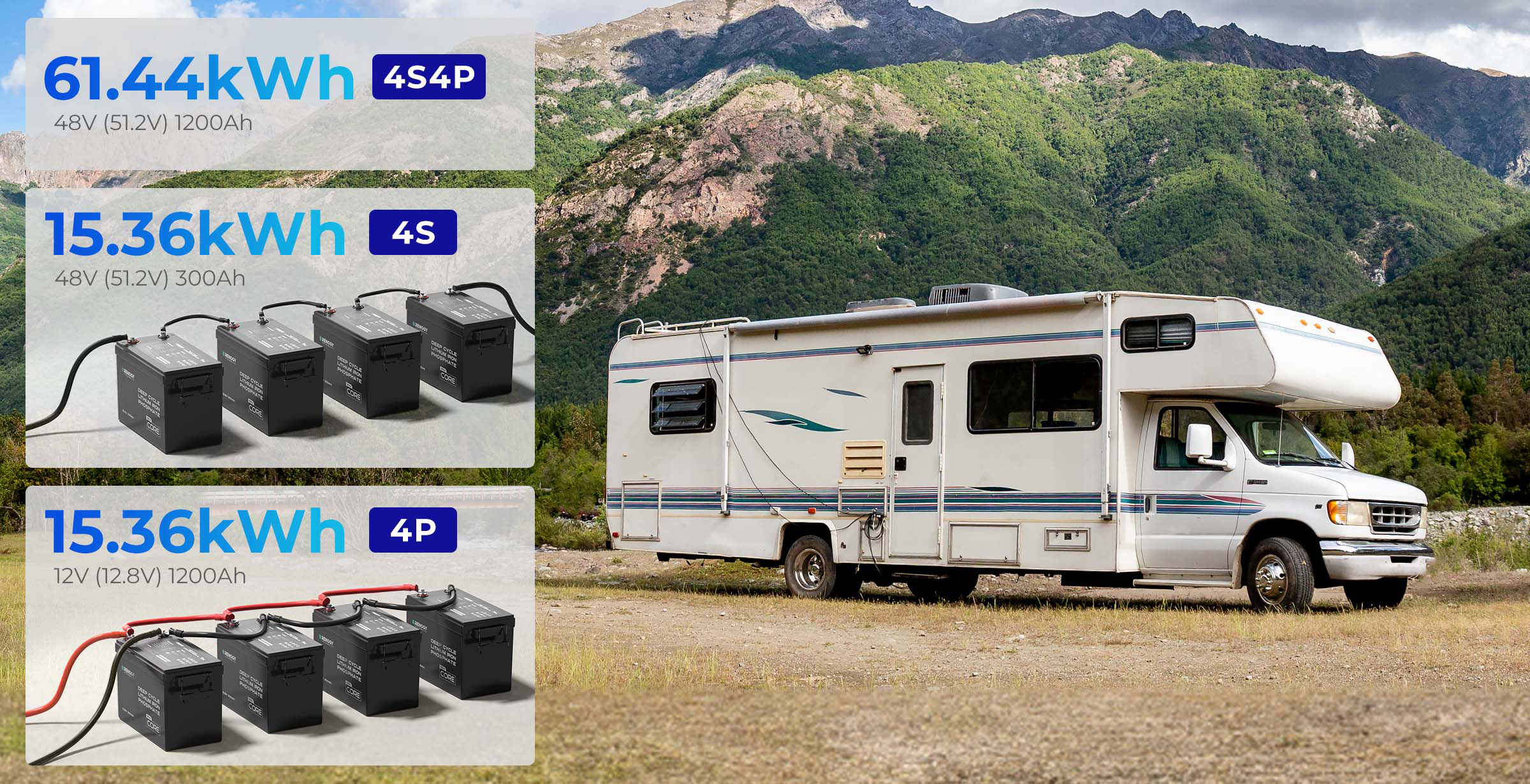

Up to 61.44kWh to Power any Adventure

Customize your power setup to fit your needs. Connect four batteries in series, four in parallel, or a mix of both to create a tailored power backup.

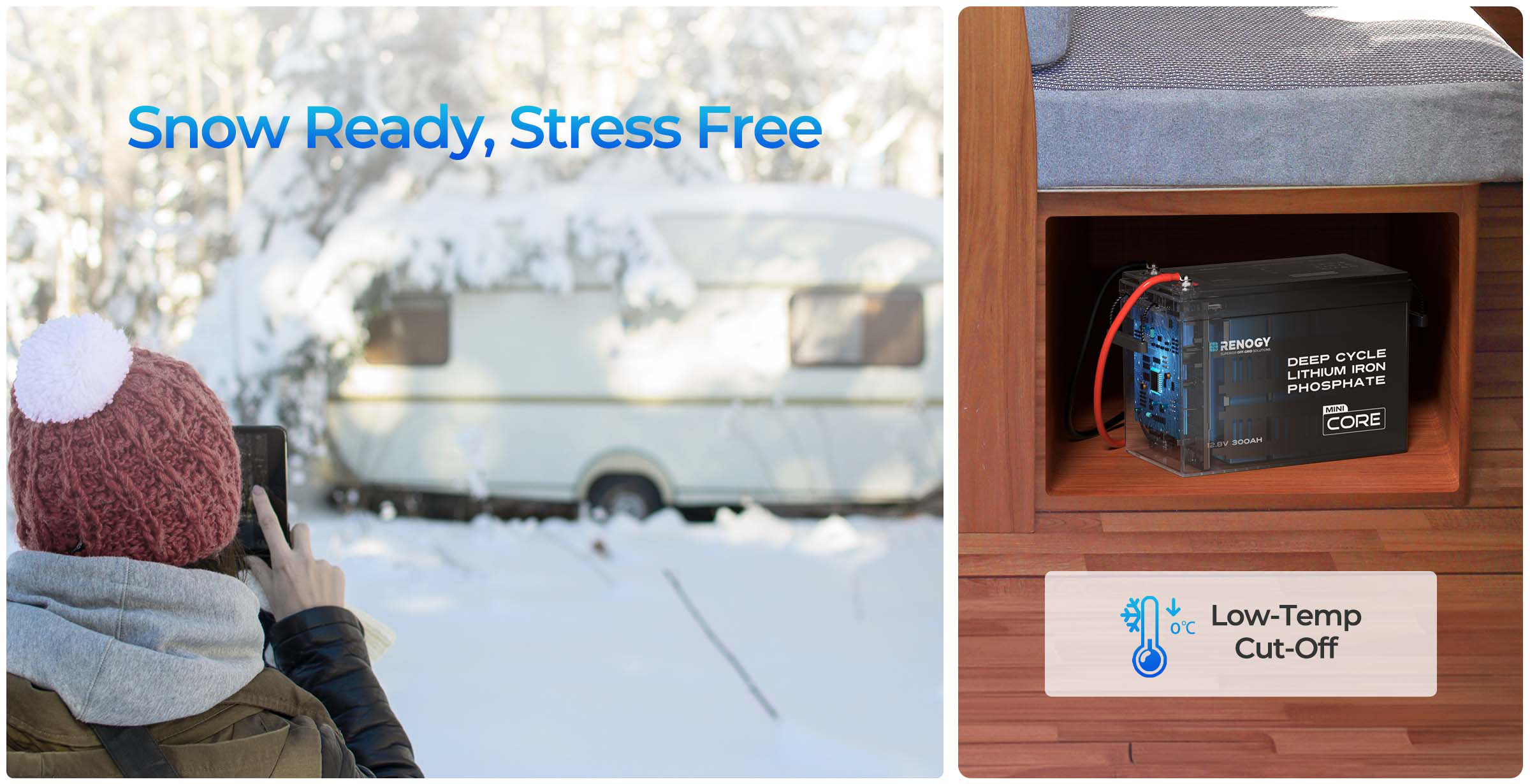

Cold Weather Charging Protection

The built-in BMS with low-temperature cut-off means you don’t have to monitor your lithium battery, manually shutting it down. Stay relaxed and cozy during winter travels while your battery handles itself, letting you focus on the adventure.

SPECIFICATIONS

Electrical Specifications
Rated Capacity (0.5C, 25°C)300Ah
Voltage Range10V to 14.8V
Nominal output Voltage RMS12.8V
Energy3840Wh
Cycle Life (0.5C/1C, 25℃)5000 Cycles (80% DOD)
Charging Parameters
Voltage Range10V to 14.8V
Maximum Continuous Charge Current150A
Discharging Parameters
Maximum Continuous Discharge Current200A
Peak Discharge Current380A @ 10s
Temperature Parameters
Operation Temperature RangeCharge: 32°F to 140°F (0°C to 60°C)
Operation Temperature RangeDischarge: -4°F to 149°F (-20°C to 65°C)
Storage Temperature Range-4°F to 140°F (-20°C to 60°C)
Operation Relative Humidity5% to 95%
Mechanical Specifications
Dimension (L x W x H)15.12 x 7.64 x 9.96 in / 384 x 194 x 253 mm
Weight55.1 lbs / 25.0 kg
Terminal Bolt SizeM8 × 1.25 × 12 mm & M8 × 1.25 × 16 mm
Protection RatingIP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS and UKCAYES
Warranty
5-year prorated material and workmanship warrantyYes
