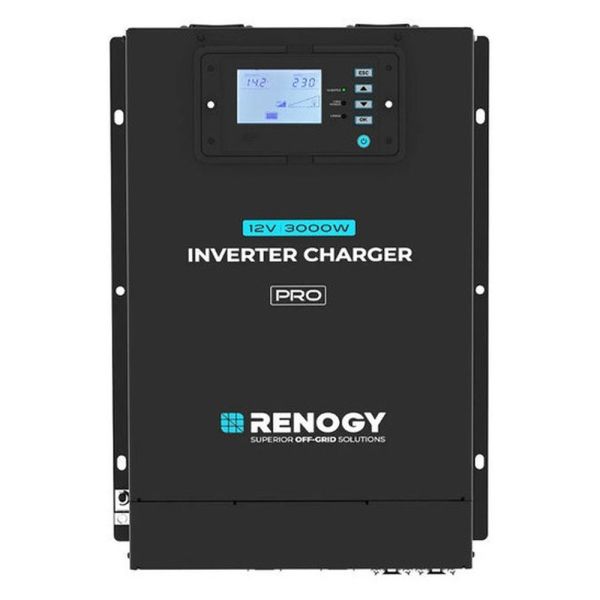

Renogy PRO 3KW/120A HF Inverter Charger with Communication RIV1230PCH-24S

Part No.
RIV1230PCH-24S

Renogy PRO 3KW/120A HF Inverter Charger with Communication RIV1230PCH-24S

$1,150.99

We'll notify you if it becomes available.

Not sure if it Fits? Click "Parts Checker"

Parts Checker
Buy Now, Pay Later
4 payments of $287.75

Installation Available

Free Shipping*

Add to Wish List
Renogy PRO 3KW/120A HF Inverter Charger with Communication RIV1230PCH-24S

Renogy PRO 3KW/120A HF Inverter Charger with Communication RIV1230PCH-24S

$1,150.99

Description

Renogy Pro 12V 3000W HF Inverter Charger

No Bulk, Just Pure Efficiency.

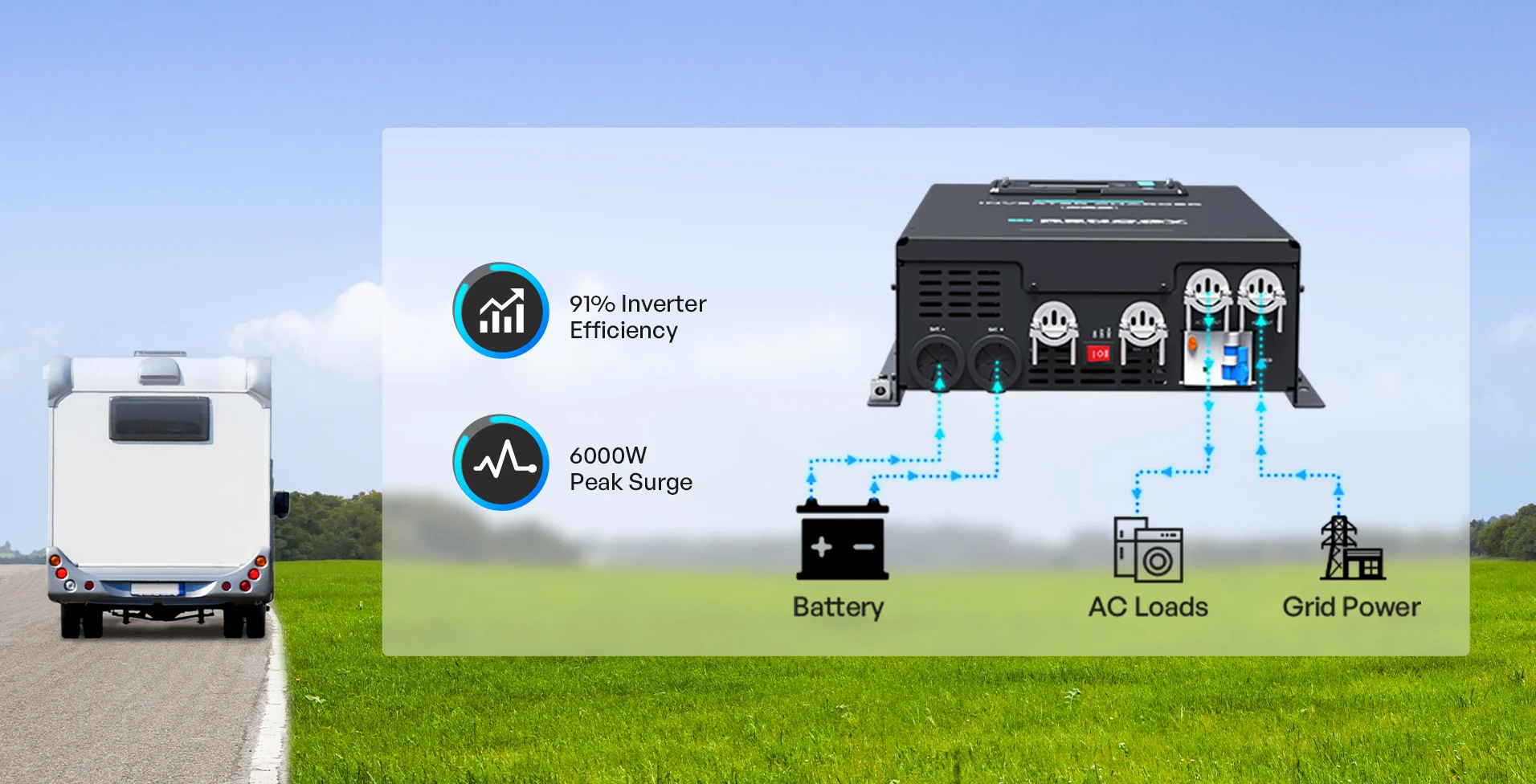

All-in-One Charging and Power Solution

Enjoy seamless battery charging and AC power conversion in a single device.

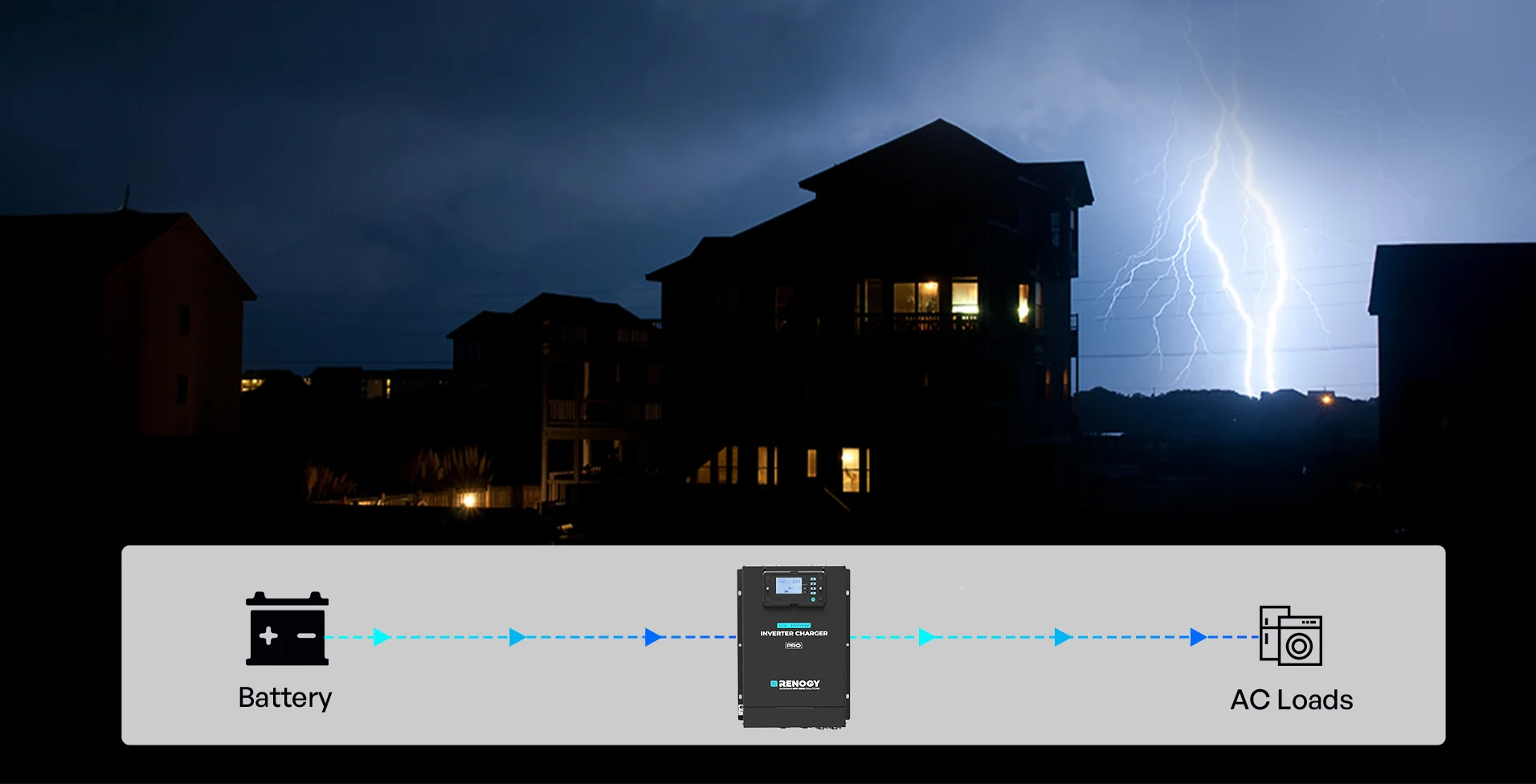

Reliable Backup Power You Can Trust

Keep your home powered during outages without worry, ensuring safety and comfort for your family.

Stay Powered and Prepared Anytime

Efficiently charge your batteries and power your home with stable grid electricity for continuous energy and total preparedness.

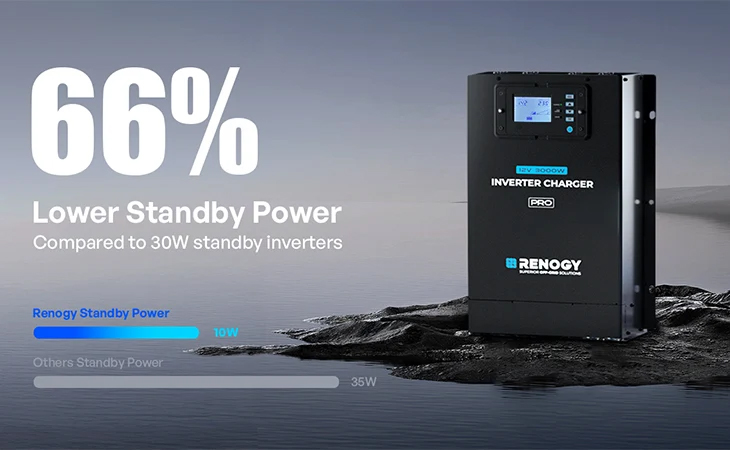

Low Self-Consumption

Consumes 66% less standby power than others, helping you get more usable energy from every charge.

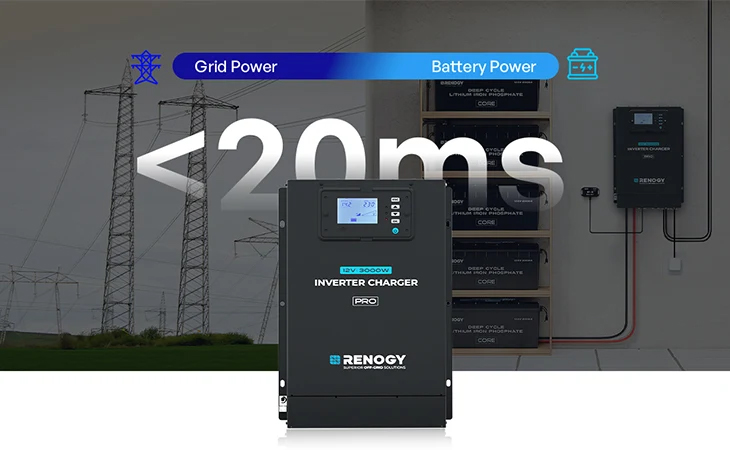

Seamless Power Switch

Switch from utility power to battery power in just 20 milliseconds, ensuring that your load remains uninterrupted.

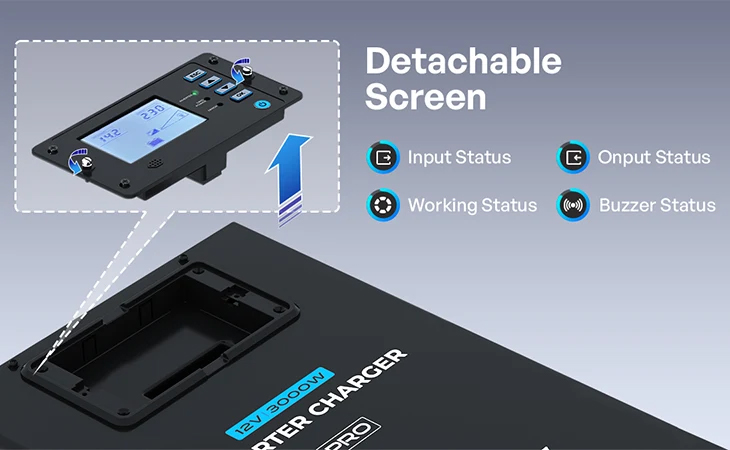

Flush Mount the LCD on Demand

Detach the screen for remote control or monitor data on your phone with a Bluetooth module for added convenience.

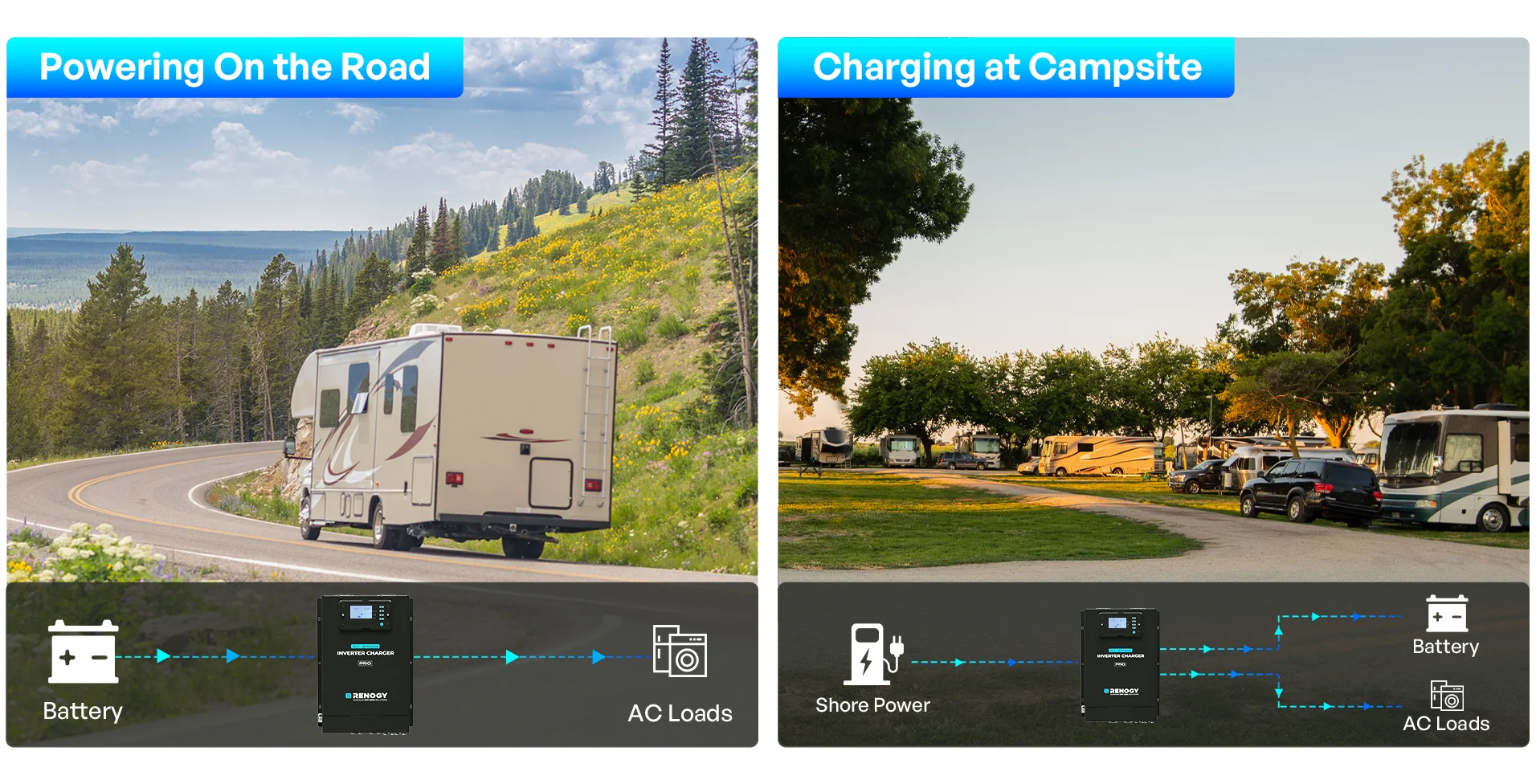

Partner for Every Journey

Power your RV on the road and recharge with shore power at camp.

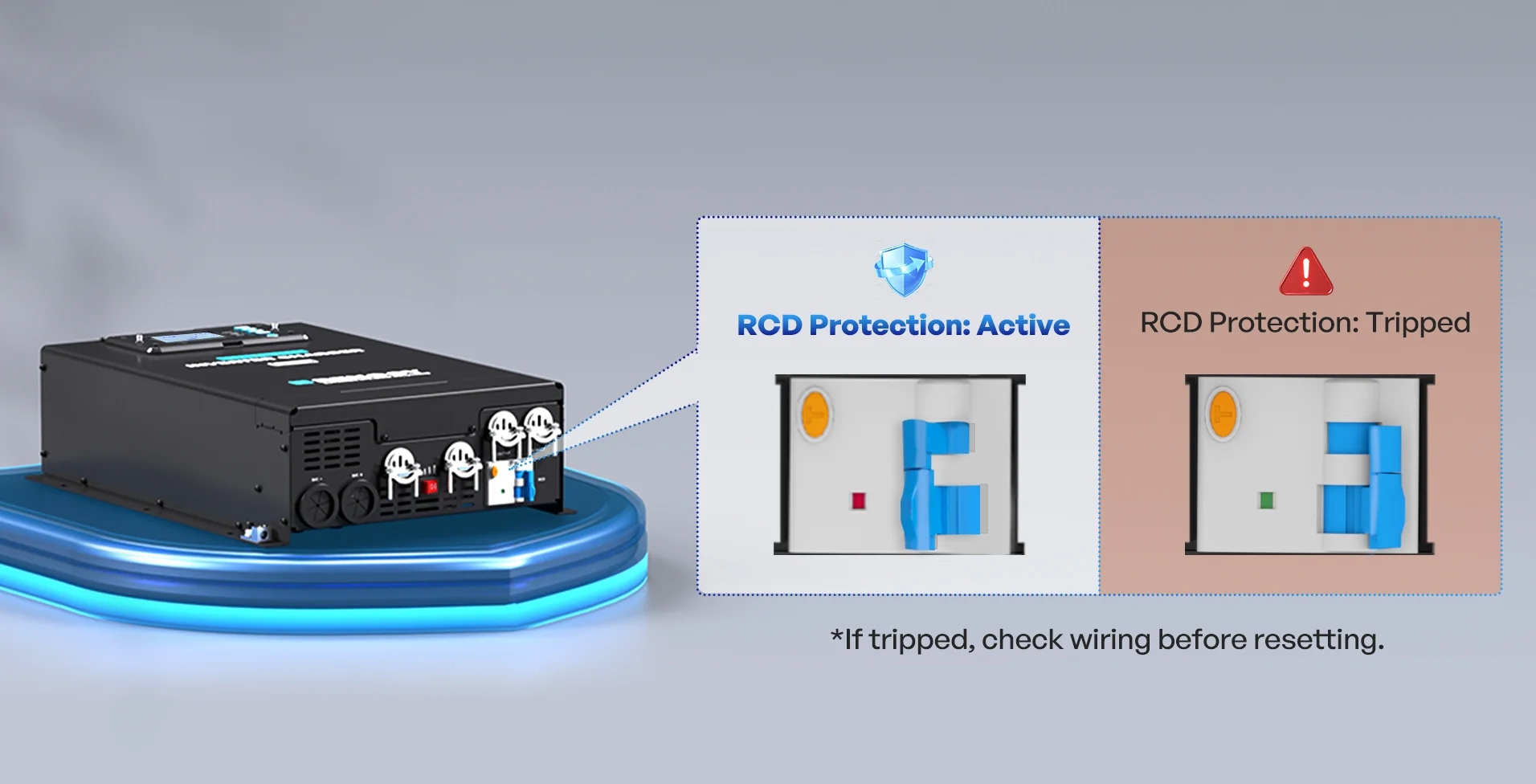

Stay Safe with Internal RCD Protection

Detects leakage faults instantly, cuts off power automatically, and restores with a simple switch flip.

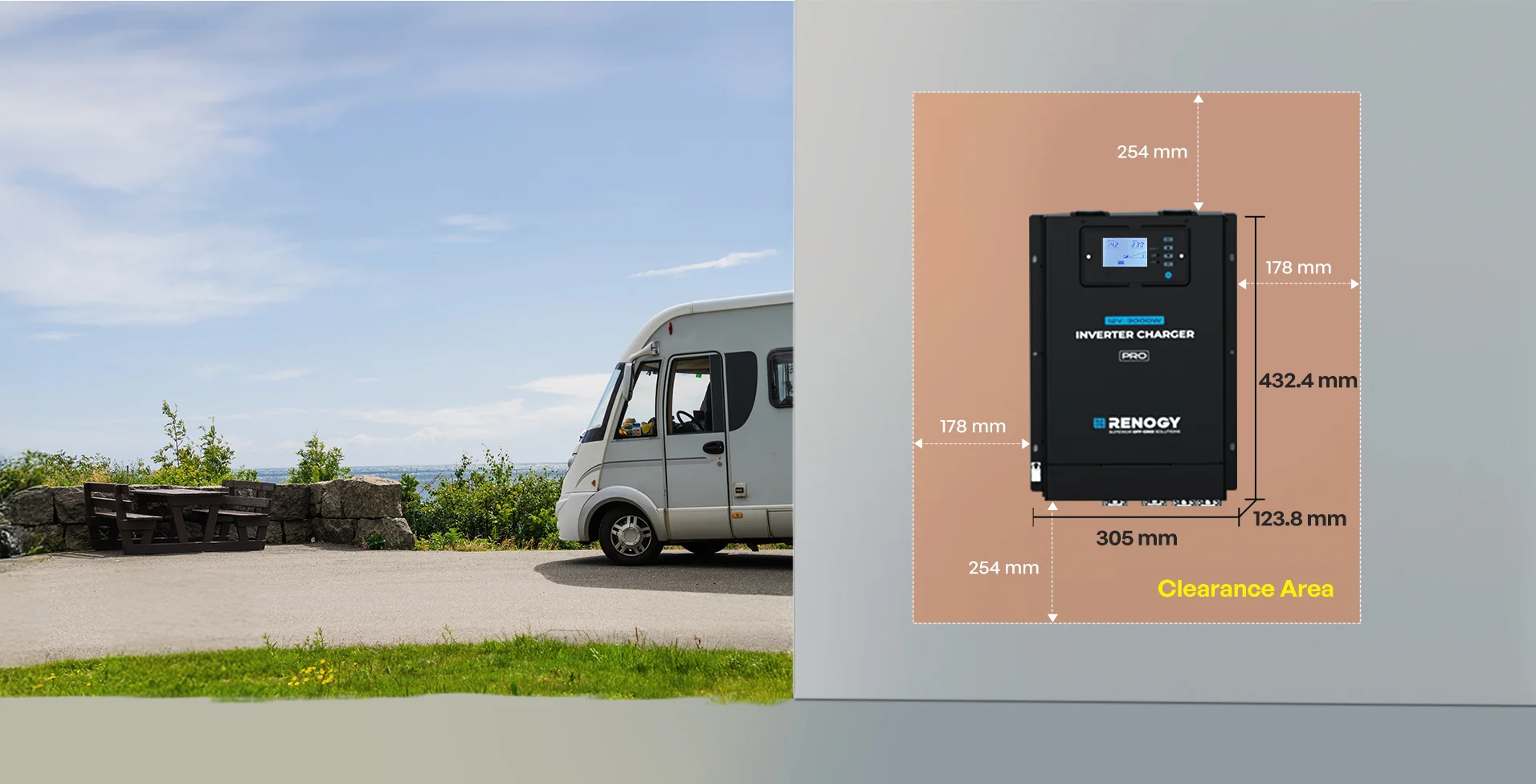

Ensure Clearance for Ventilation

Maintain required spacing around the unit for safe and efficient operation.

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS
Continuous Power3000W
Surge Power (Peak Power)6000W
AC Output Voltage Range240VAC
Output Frequency (Nominal)50/60 Hz ± 0.1Hz,default 50Hz
Output WaveformPure Sine Wave
Efficiency>91% peak
THD<4%
DC Input VoltageDC12V
DC Input Voltage Range10.5-15.5VDC
No Load Current Draw<10W
Output Current5-120A Aadjustable,5A intervals
Optimal Efficiency>85% Peak
Nominal Input Voltage187-265Vdc
Input Frenquency Range40Hz-70Hz
Transfer TimeMax.20ms
Transfer Rating16A Automatic Transfer Switch
Battery TypesGEL, AGM, SLA, FLD, CAL, LI, USER
Noise<55dB
Operating Temperature-20-50℃/-4-122°F (Output power degrading at 86°F/30°C or higher)
Dimensions17.02 x 12.01 x 4.87in/432.4 x 305 x 123.8mm
Storage Temperature-30-70℃/-22-158°F
Material and Workmanship Warranty
Weight17.9 lbs / 8.1 kg
Humidity0% ~ 95%
Warranty3 year
Certifications-EMCAS/NZS 61000-6-3, AS/NZS 4268 and AS/NZS 2772.2
Certifications-SafetyAS/NZS 60335 and AS/NZS 4763
