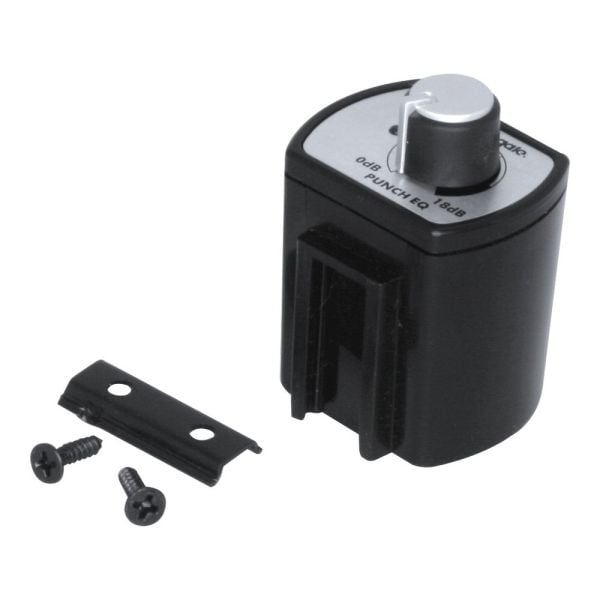

Wired remote Punch equalization control for select 2007 and newer amplifiers.

This remote Punch EQ offers 0dB to +18dB boost @ 45Hz and/or a hinge treble boost 0dB to +12dB @ 12kHz. Cable and mounting hardware included. For use with select 2007 and newer PUNCH & POWER amplifiers.

Features At A Glance

• Remote wired bass/treble boost
• Controls bass on rear outputs of 4-channel amplifiers
• Bass/Treble filtering based upon in-board amplifier crossover setting (HP-LP-AP)
• 0dB to +18dB bass boost @ 45 Hz
• 0dB to +12dB treble boost @ 12.5 kHz
• Conveniently mount under dash, inside center console or glovebox
• Includes bass knob, cable, mounting clip, mounting screws
• 1 Year Warranty

Technologies:

Punch EQ2

• A midbass hump between 100-275Hz
• A steep roll-off of high frequencies from 2kHz up to 20kHz
• Reduced bass response below 50Hz

Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.

Compatibility:
