SPECIFICATIONS

• Rated Line Pull 1100lb (4990kg)
• Motor Series Wound (12V) 5.0kW/6.7HP - IP67 Rated
• Gear Train Full Steel 3 Stage Planetary
• Gear Ratio 228:1
• Brake Automatic Ratchet Load Holding in the gearbox
• Synthetic Rope 10mm x 15M
• Drum Size 63mm x 112mm
• Mounting Bolt Pattern 152mm x 114.3mm0
• Overall Dimensions 471mm x 160mm x 200mm
• Remote Control 3.7m Handheld Remote/Wireless Remote
• Battery Leads Included. 2 x 1.8m Heavy Duty Leads\
• Finish Black Powder Coat
• Net Weight 27kg
• Gross Weight 30kg (includes packaging)
• Warranty Limited Lifetime

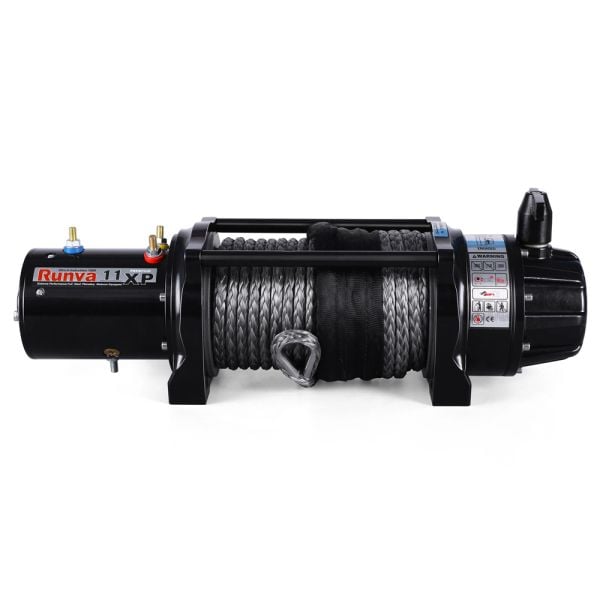

This model features the newly designed gearbox with integrated ratchet braking system. The ENTIRE winch is IP67 rated. Another fantastic model crafted by Runva.
