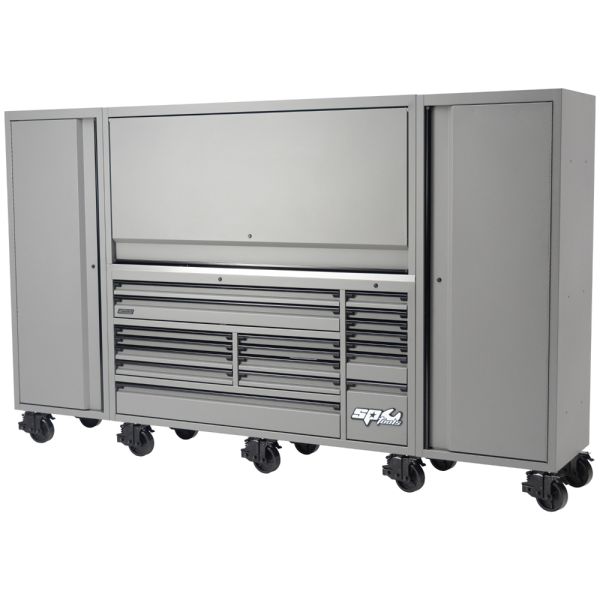

The Ultimate 128" USA Sumo Series Storage Workstation

The ultimate professional storage solution. This 128" USA Sumo Series workstation combines a heavy-duty roller cabinet, powered top hutch and dual side cabinets to deliver unmatched storage capacity, organisation and durability. Built from super-duty steel with premium drawer systems, it’s designed as a scalable foundation for high-performance automotive workshops.

Workstation Combined Dimensions: (mm)

• 3250w x 622d x 1752h (1954h with castors) (6'1" Head Clearance)

Total Workstation Load Weight (Maximum)

• 4,000Kg (400kg per castor)

Drawer Load Weights (Per Drawer)

• Top drawer load weight: 120Kg
• Standard drawer load weight: 60Kg
• Bottom drawers load weight: 120Kg

Specifications

• RANGE SERIES: USA Sumo Series - 73"
• CONSTRUCTION: Double wall super-duty, heavy gauge steel
• WORK TOP: Stainless steel
• POWER BOARD: Yes - 2x magnetic mount power boards with 4x individually switched outlets & 4x USB ports
• ELECTRICAL ACCESS POINTS: 6
• BUILT-IN LIGHTING: 2x 600mm LED strips
• PEGBOARD REAL WALL : Yes
• ADJUSTABLE SHELF: Yes - full length (power hutch)
• ROLL CAB DRAWERS: 18
• FULL LENGTH DRAWERS : 3x
• DRAWER EXTENSION: Full extension
• SP CLIKLOK DRAWER LOCKING SYSTEM: Yes - single handed full length
• ROLL CAB DRAWER LINERS: 18
• DRAWER SLIDES: SP Max 28 ball bearings - Super duty
• DRAWER LOAD: 60kg - per standard drawer; 120kg - per deep drawer
• DRAWER BANK: Triple
• CLOTHES COMPARTMENT: Large volume with hang rail
• ROLLER SHELVES: 4x High volume, soft close
• FIXED SHELVES: 4
• LOCKABLE: Full internal locking system
• CASTOR TYPE: Super duty premium spring loaded
• CASTOR LOAD: 400Kg per castor
• WORKSTATION TOTAL MAX LOAD: 4,000Kg
• FINISH: UV Stabilised double powder coat
• WEIGHT: 726kg

128" USA SUMO Series Workstation Includes:

Part No.: SP44830GY

73" USA SUMO Series Power Hutch with Shelf, Pegboard, Light and Powerboard

Power Hutch Dimensions: (mm)

• 1850w x 622d x 864h

Part No.: SP44826GY

73" USA SUMO Series Roller Cabinet - 18 Drawer - Customised Drawer Configuration

Roll Cab Dimensions: (mm)

• 1850w x 622d x 888h (1090h with castors)

Drawer Dimensions: (mm)

• 1x Drawer: 1356w x 528d x 60h
• 1x Drawer: 1370w x 528d x 100h
• 2x Drawers: 738w x 546d x 45h
• 2x Drawers: 738w x 546d x 72h
• 2x Drawers: 570w x 546d x 45h
• 2x Drawers: 570w x 546d x 72h
• 1x Drawer: 1370w x 550d x 158h
• 1x Drawer: 305w x 545d x 74h
• 4x Drawers: 305w x 545d x 45h
• 1x Drawer: 305w x 545d x 130h
• 1x Drawer: 305w x 545d x 290h

Part No.: SP44880GY

27" USA SUMO Series Side Cabinet - 4 Roller Shelves + 1 Fixed Shelf

Side Cabinet Dimensions: (mm)

• 1700w x 622d x 1954h

Part No.: SP44885GY

27" USA SUMO Series Side Cabinet - 3 Fixed Shelves + Clothes Hang Rail

Side Cabinet Dimensions: (mm)

• 1700w x 622d x 1954h

2x Magnetic Mount Surge Protected Power Boards - 4 Outlets and USB Ports

Position your power board anywhere on your tool kitAll USA Sumo Series power hutches and side cabinets include several electrical cable access points, strategically positioned to allow you to power or charge your tools and USB Powered devices as conveniently as possible.

Each power board includes 4 individually switched surge protected power outlets and 4 USB ports and a magnetic holder unique to SP Tools, that allows users to position the power board on any steel part of the hutch or roll cab using four ultra strong magnetic backing plates.
