TECH SERIES TOOL BOX FEATURES

• 25% thicker steel dog bone style frame construction offers maximum rigidity
• Dual gas strut lid stays
• Soft Close Drawers with heavy duty full extension ball bearing drawer slides
• SP Cliklok drawer locking system ensures drawers stay closed and secure
• Internal locking system for extra security
• Side storage compartments suitable for aerosol cans
• Corner protection
• Drawer load weight: 40Kg

TOOL BOX DIMENSIONS

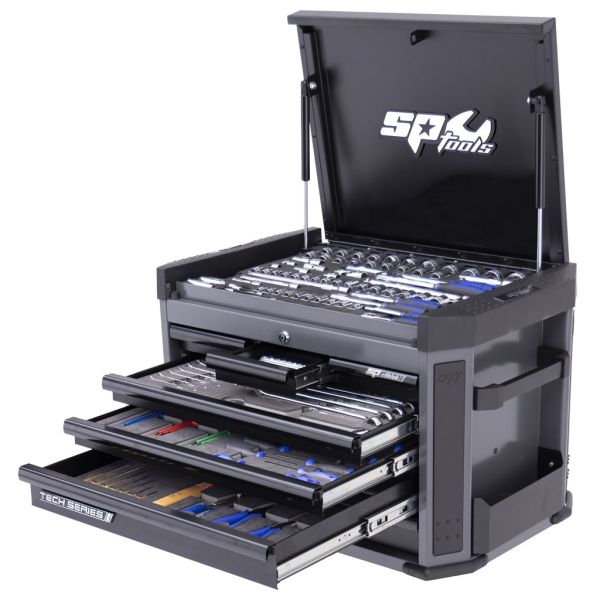

7 Drawer Tech Series Tool Box

730w x 480d x 507h (mm)

DRAWER DIMENSIONS

• 3x Drawers: 170w x 405d x 54h
• 2x Drawers: 570w x 405d x 54h
• 2x Drawers: 570w x 405d x 83h

TOOLS INCLUDED IN THIS TOOL KIT

1/4”Dr SOCKETS & ACCESSORIES

• 12pt - 4, 5, 6, 7, 8, 9, 10, 11, 12 & 13mm
• 6pt Deep - 4, 5, 6, 7, 8, 9, 10, 11, 12 & 13mm
• Inhex - 3, 4, 5 & 6mm
• 45T Ratchet, Flex Handle & Universal Joint
• Extension Bars - 50, 100 & 150mm

3/8”Dr SOCKETS & ACCESSORIES

• 12pt - 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 & 22mm
• 12pt Deep -10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm
• Inhex - 6, 7, 8, 9 & 10mm
• 45T Ratchet, Flex Handle & Universal Joint
• Extension Bars - 75, 150 & 250mm
• Adaptors - 3/8Fx1/4M, 3/8Fx1/2M
• Spark Plug Sockets - 16 & 21mm

1/2”Dr SOCKETS & ACCESSORIES

• 12pt - 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 30 & 32mm
• 45T Ratchet, Flex Handle & Universal Joint
• Extension Bars - 75, 125 & 250mm
• Adaptor - 1/2Fx3/8M

SPANNERS

• Quad Drive Spanners – 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, & 24mm
• Flare Nut Spanners - 10x11mm, 12x13mm, 14x17mm & 19x22mm

TOOLS

• Screwdrivers - 3.0x75, 5.5x100, 6.5x38, 6.5x100, 6.5x150 & 8.0x150mm
• Screwdrivers - #0x75, #1x75, #2x38, #2x100, #2x150 & #3x150mm
• Hex Keys - 1.5, 2, 2.5, 3, 4, 5, 6, 8 & 10mm
• Hex Keys - 1/16, 5/64, 3/32, 1/8, 5/32, 3/16, 1/4, 5/16 & 3/8”
• Torx Keys -T10, T15, T20, T25, T27, T30, T40, T45 & T50
• Ratchet Driver Bit Set - 31pc
• Pliers - Combination, Long Nose, Multigrips & Locking
• Cutters - Diagonal
• Hammer - Ball Pein
• Adjustable Wrench
• Tape Measure
• Pick Set - 4pc
• Pin Punch Set - 7pc
• Tech Series Tool Box - 7 Drawer
