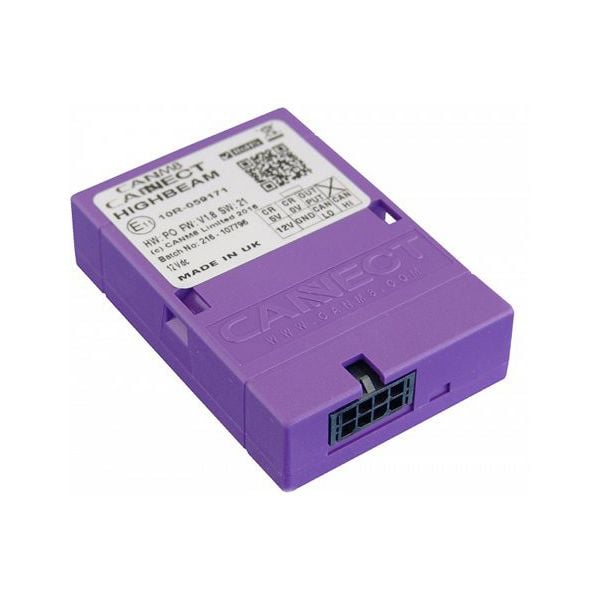

The CANM8 CANNECT HIGHBEAM interface is a single output CAN Bus interface which provides a quick solution for detecting high beam activity on vehicles which feature CAN Bus wiring.

Note: This is not a universal product. For the latest vehicle & compatibility notes please check the Stinger Australia website prior to purchasing. You can view this directly HERE.

Outputs

Applications

The CANM8 CANNECT HIGHBEAM is an ideal solution for vehicles which require the installation of additional driving lights (via a relay) which are switched on when the vehicle high beam is active. This interface allows quick and easy installation which integrates the control of additional driving lights with the vehicle’s high beam control.

Installation Details

The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.

The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.

LED Status Details

Wiring Harness Details
