• Lightweight compact design featuring next generation SX Drive Technology with increased power and 2m (6.5 ft) drop test durability
• High quality impact wrench features a heavy duty powerful motor that delivers 105Nm (77ft-lbs) of working torque
• Ultra compact mini ratchet wrench features a heavy duty powerful motor that delivers 51Nm (38ft-lbs) of working torque
• SX Drive electronic intelligence enables advanced communication between your batteries and tools, allowing for unmatched levels of performance, protection and productivity
• Improved performance in tight access applications
• Variable speed triggers provides you with added control
• Ergonomic high grip handles for comfortable use
• Built-in LED lights illuminate work area and delivers high visibility in tight access workspaces

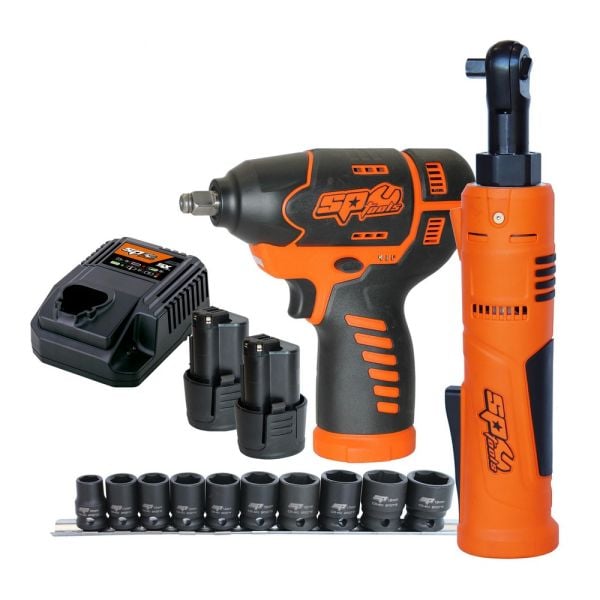

• Kit includes 2x 2.5Ah high quality long life Li-ion battery packs and 10pc Impact Socket Set

SPECIFICATIONS

THIS KIT INCLUDES

12v 3/8"Dr IMPACT WRENCH - SX DRIVE - SKIN ONLY

PART NO: SP83113BU

• Working Torque: 105Nm | 77ft-lbs
• RPM: 0-2400 | BPM: 0-3200
• Capacity: 3/8’’ (10mm)
• Variable speed trigger with brake
• Ergonomic soft grip handle
• Built-in LED light illuminates work area
• Weight: 0.87kg | 1.9Lb (with battery)
• Charging Time: 1 hour auto cut-off (±10min)

12v 3/8"Dr MINI RATCHET WRENCH - SX DRIVE - SKIN ONLY

PART NO: SP83614BU

• Working Torque: 51Nm | 38ft-lbs
• RPM: 0-220
• Square Drive: 3/8’’
• Compact design for tight access areas
• Reversible
• Built-in LED light illuminates work area
• Ergonomic high grip handle
• Weight: 0.93kg | 2.05Lb (with battery)
• Charging Time: 1 hour auto cut-off (±10min)

12v LI-ION BATTERY PACK - 2.5AH - SX DRIVE

PART NO: SP83970
QUANTITY: 2x

• Longer run time

• Less charging

• Power when you need it

• Stronger coated contacts

• Longer life - More than double the recharges of normal lithium batteries

12v BATTERY CHARGER - SX DRIVE

PART NO: SP83870

SP Multi function Microprocessor controlled 12v Battery Charger features a 9 stage control and protection system

1. Programmable over-charge voltage
2. End of charge current
3. Temperature cut-off
4. Safety charging time
5. Receive charge termination signal
6. Over-charge voltage protection
7. Over-charge current protection
8. Short circuit protection
9. Relay control protection

10pc 3/8”Dr 6pt METRIC IMPACT SOCKET RAIL SET

PART NO: SP20250

• Flat drive technology offers maximum contact and grip
• Trade tough - suitable for use with pneumatic and electric/cordless impact wrenches
• Premium quality, high strength Chrome Molybdenum steel (Cr-Mo) forextreme durability
• Manufactured to DIN standards

IMPACT SOCKETS INCLUDED

• 10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm Impact Sockets
• 1 x Socket Rail

SX CORE MICROPROCESSORS

The core to the SP SX Drive program are the new and improved SX Core microprocessors that offer the ultimate charger to battery to tool interface to improve outright performance. We have embedded microprocessors in all three components to give users longer run times, charge and discharge protection, intelligent current flow and temperature protection. With SP SX Drive using SX Core technology we can offer more work time, more power, more recharges and ultimately better performing tools.

NEXT GENERATION BATTERY SYSTEM

The new and improved SX Drive power tool program has been redeveloped to offer even greater power and performance to automotive, industrial and trade applications. The SP SX Drive cordless range is powered by next-gen INR chemistry battery cells. The INR chemistry combines the safety and low resistance of Manganese and the high energy capacity of Nickel. When we combine these cells with SP Tools 3rd generation SX battery management system, the result is world leading battery performance and power.

• Longer run time
• Less charging
• Power when you need it
• Stronger coated contacts
• Longer life - More than double the recharges of normal lithium batteries
