Xtreme Outback KGW25501-1A 250mm Sprung Organic Clutch Kit Incl SMF
Description
Xtreme Outback Stage 1 heavy duty upgrades are the most popular kits in the Xtreme Outback range. Incorporating a heavy duty pressure plate (Normally 15-40% higher clamping force depending on the application) combined with a sprung organic friction disc, these kits are ideal for vehicles that are regularly used off-road and for towing whilst also being driven everyday. Each kit is developed to offer all of the components required for a successful installation and many also include a single-mass conversion flywheel.
Organic Friction Discs
Organic friction discs are the most drivable options in the range. The discs have been designed to provide great durability and performance whilst offering the best drivability for the street. The discs are ideal for applications such as towing, but are limited in heat capacity so are not recommended for motorsport applications.
Heavy Duty Pressure Plate
Xtreme Outback heavy duty pressure plates have been carefully designed and engineered to ensure significant increases in clamping force whilst also retaining excellent pedal feel. We carefully analyse and test kits to ensure not only the performance when new, but also how the clamping force diminishes over the lifecycle of the product, give our products the edge in performance throughout the life of the clutch.

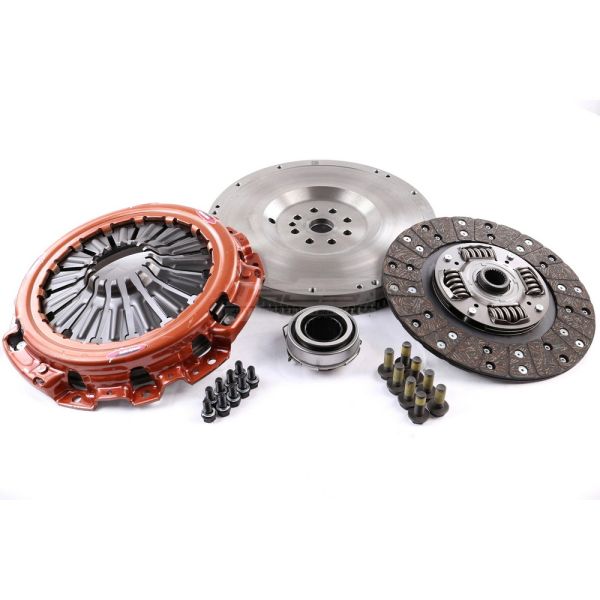

This kit includes: (see specifications tab for full list of inclusions)
- Clutch Disc
- Pressure Plate
- Flywheel
This kit does not include:
- Concentric Slave Cylinder
Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.
Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.
Compatibility
GREAT WALL
V240
2011 - 2014 Diesel 2.0 V200 4x4 Ute 105KW
2011 - 2014 Diesel 2.0 V200 Ute 105KW
2011 - 2014 Diesel 2.0 V200 Platform/Chassis 105KW
2011 - 2014 Diesel 2.0 V200 4x4 Platform/Chassis 105KW
X240
2011 - 2014 Diesel 2.0 X200 4x4 SUV 105KW
STEED
2016 - 2019 Diesel 2.0 TD 4x4 CC1031 Ute 110KW
2016 - 2019 Diesel 2.0 TD CC1031 Ute 110KW
2016 - 2021 Diesel 2.0 TD (K2) Platform/Chassis 110KW
2016 - 2021 Diesel 2.0 TD 4x4 (K2) Platform/Chassis 110KW
Specifications
- Number of Teeth:
24
- Hub Profile:
25,4x24T
- Supplementary Article/Supplementary Info:
with single-mass flywheel
- Supplementary Article/Supplementary Info:
with synthetic grease
- Supplementary Article/Supplementary Info 2:
with screw set
- for flywheel depth [mm]:
0,5
- Max. transferable engine torque [Nm]:
380
- Friction Lining Outer Diameter [mm]:
250
- Flywheel Profile:
recessed flywheel
- Friction lining material:
Organic
