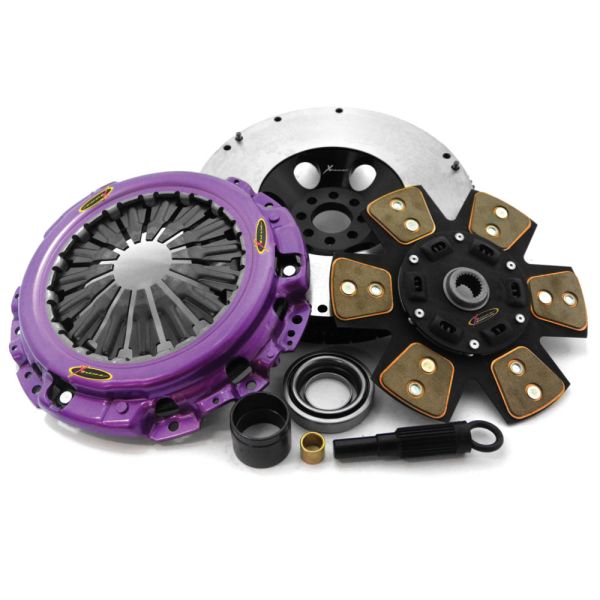

Xtreme Clutch KMZ22001-1B 215mm Sprung Ceramic Clutch Kit
Description
Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.
The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.
This kit includes: (see specifications tab for full list of inclusions)
- Clutch Disc
- Pressure Plate
This kit does not include:
- Concentric Slave Cylinder
- Flywheel
Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.
Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.
Compatibility
MAZDA
626
1979 - 1982 Petrol Engine 2.0 (CB2MS) CB Sedan 66KW
1978 - 1982 Petrol Engine 2.0 Coupe 66KW
929
1979 - 1982 Petrol Engine 2.0 (LA4M) LA Sedan 66KW
1982 - 1987 Petrol Engine 2.0 (LA4M) LA Wagon 59KW
121
1979 - 1981 Petrol Engine 2.0 (CD3M) CD Coupe 61KW
Specifications
- Number of Teeth:
22
- Hub Profile:
24,5x22T
- Supplementary Article/Supplementary Info:
with pilot bearing
- Supplementary Article/Supplementary Info:
with synthetic grease
- Clutch Type:
High-Performance Clutch
- for flywheel depth [mm]:
16
- Friction Lining Outer Diameter [mm]:
215
- Flywheel Profile:
recessed flywheel
- Friction lining material:
Ceramic
