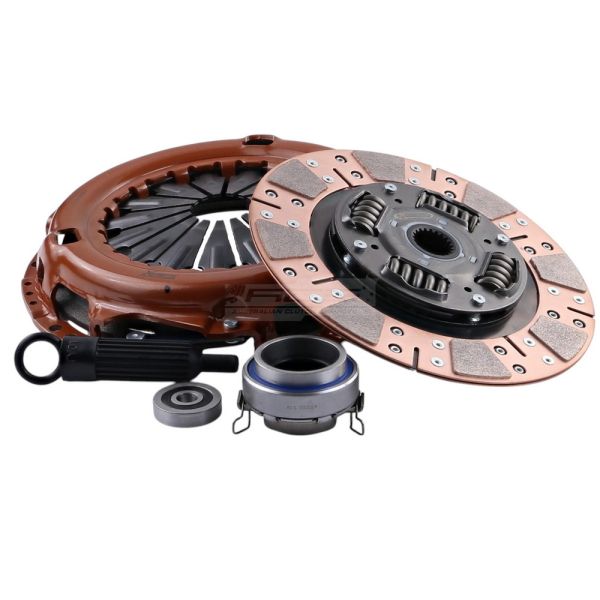

Xtreme Outback KTY24017-1C 236mm Cushioned Ceramic Clutch Kit
Description
Cushioned ceramic friction discs are similar to the sprung ceramic kits in that they have a sprung hub to absorb shock loading, but also have a small amount of cushioning betwene the two friction surfaces on the disc giving them better pedal modulation. These kits are designed for low speed trial where pedal feel is important but where the high temperature capacity of a ceramic disc is also beneficial.
This kit includes: (see specifications tab for full list of inclusions)
- Clutch Disc
- Pressure Plate
This kit does not include:
- Concentric Slave Cylinder
- Flywheel
Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.
Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.
Compatibility
TOYOTA
ESTIMA EMINA / LUCIDA
1992 - 1999 Diesel 2.2 TD 4x4 (CXR20G, CXR21G) _R1_,_R2_ MPV 74KW
1992 - 1999 Diesel 2.2 TD (CXR10, CXR11) _R1_,_R2_ MPV 74KW
1992 - 1999 Diesel 2.2 TD 4x4 (CXR20G, CXR21G) _R1_,_R2_ MPV 77KW
1992 - 1999 Diesel 2.2 TD (CXR10G, CXR11G) CXR1_ MPV 77KW
TOWN ACE
1993 - 1996 Diesel 2.2 TD (CR31_, CR31R) Van 67KW
TARAGO / ESTIMA
1990 - 2000 Diesel 2.2 TD (CXR10, CXR11) _R1_,_R2_ MPV 74KW
SPACIA
1995 - 1997 Diesel 2.2 D (CR22) _R2_ Bus 67KW
Specifications
- Number of Teeth:
21
- Hub Profile:
29,8x21T
- Supplementary Article/Supplementary Info:
with pilot bearing
- Supplementary Article/Supplementary Info:
with synthetic grease
- Engine Features/Arrangement:
for engines with single-mass flywheel conversion
- for flywheel depth [mm]:
0,5
- Max. transferable engine torque [Nm]:
560
- Friction Lining Outer Diameter [mm]:
236
- Flywheel Profile:
elevated flywheel
- Friction lining material:
Ceramic
